01. Advanced Surface Restoration with Air-Cooled CW Laser Technology
The ONS-C1500W Series delivers high-power CW fiber laser cleaning in a compact, air-cooled system. Available in 800W, 1200W and 1500W, it supports rust removal, oxide cleaning, coating removal and metal surface preparation without an external water chiller.
02. Key Advantages of the ONS-C800W/1200W/1500W Series
03. Main Components & Machine Design
MAX Fiber Laser Source — Industrial laser source for continuous-wave cleaning applications.

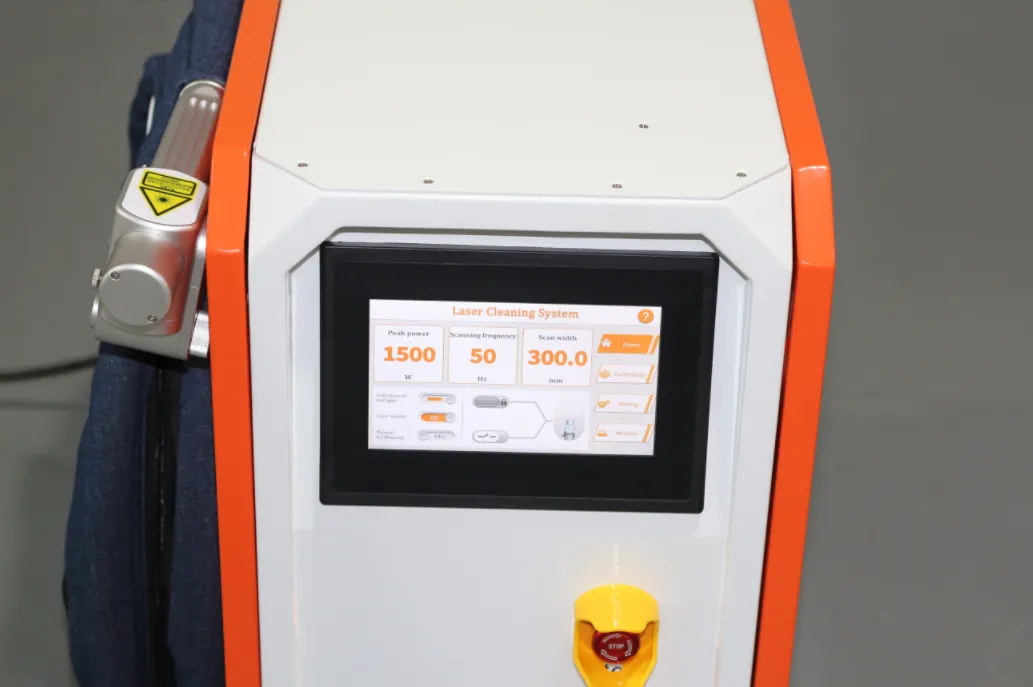

HMI Touchscreen — Adjustable laser power, scanning frequency and cleaning width.

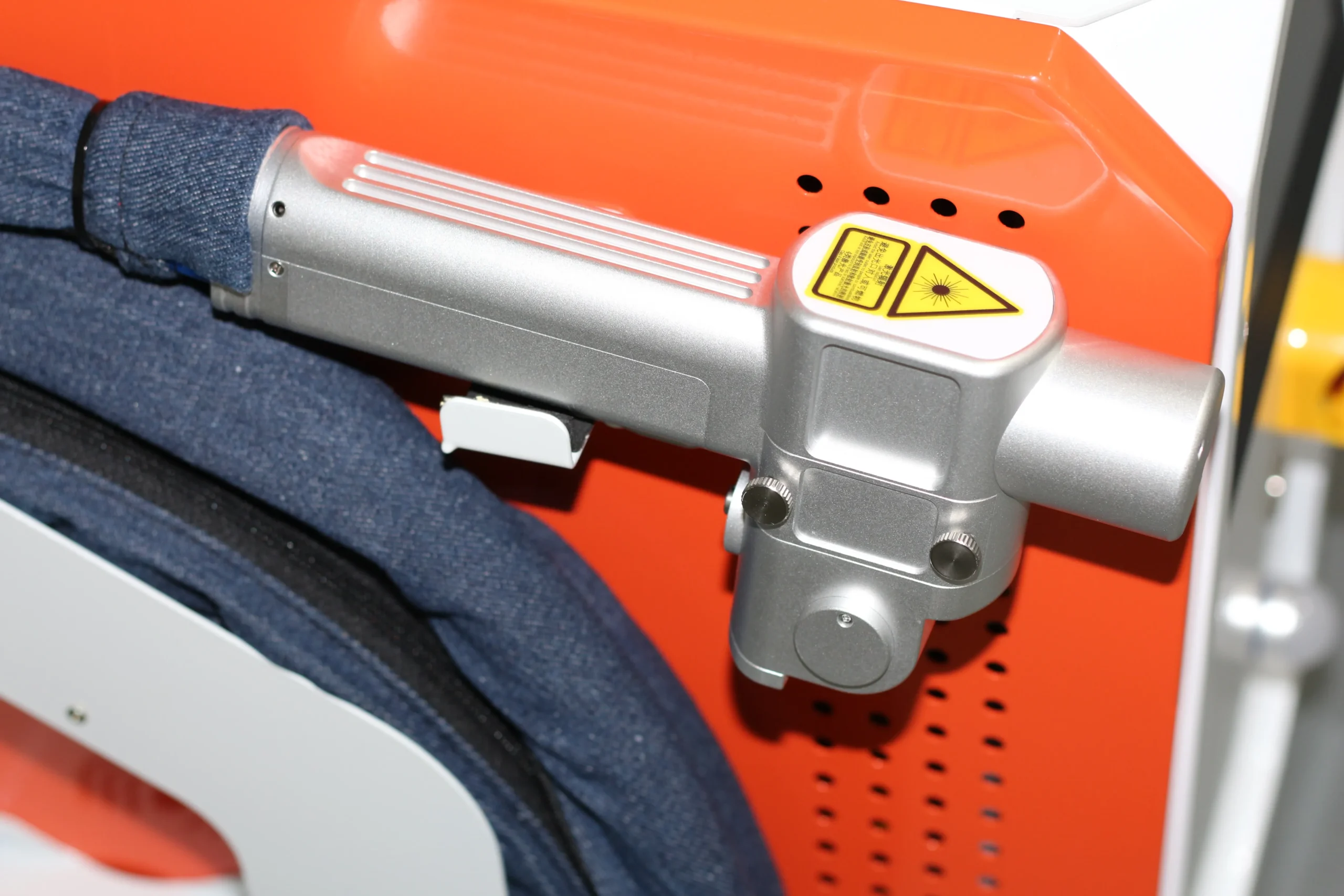

Handheld Laser Head — Dual-galvanometer scanning optics with replaceable protective glass.
Forced-Air Cooling — Internal fans and ventilation panels for heat dissipation.

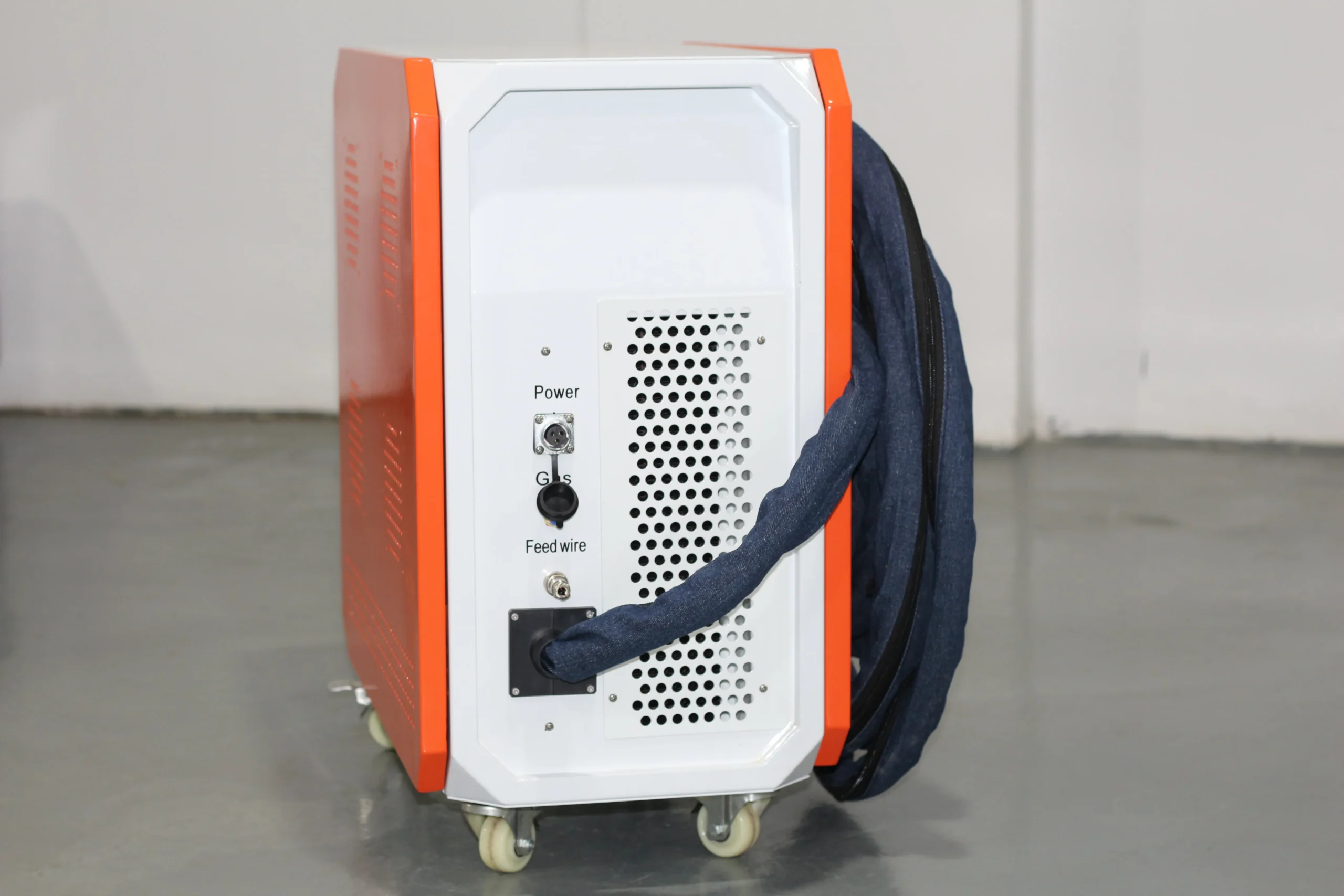

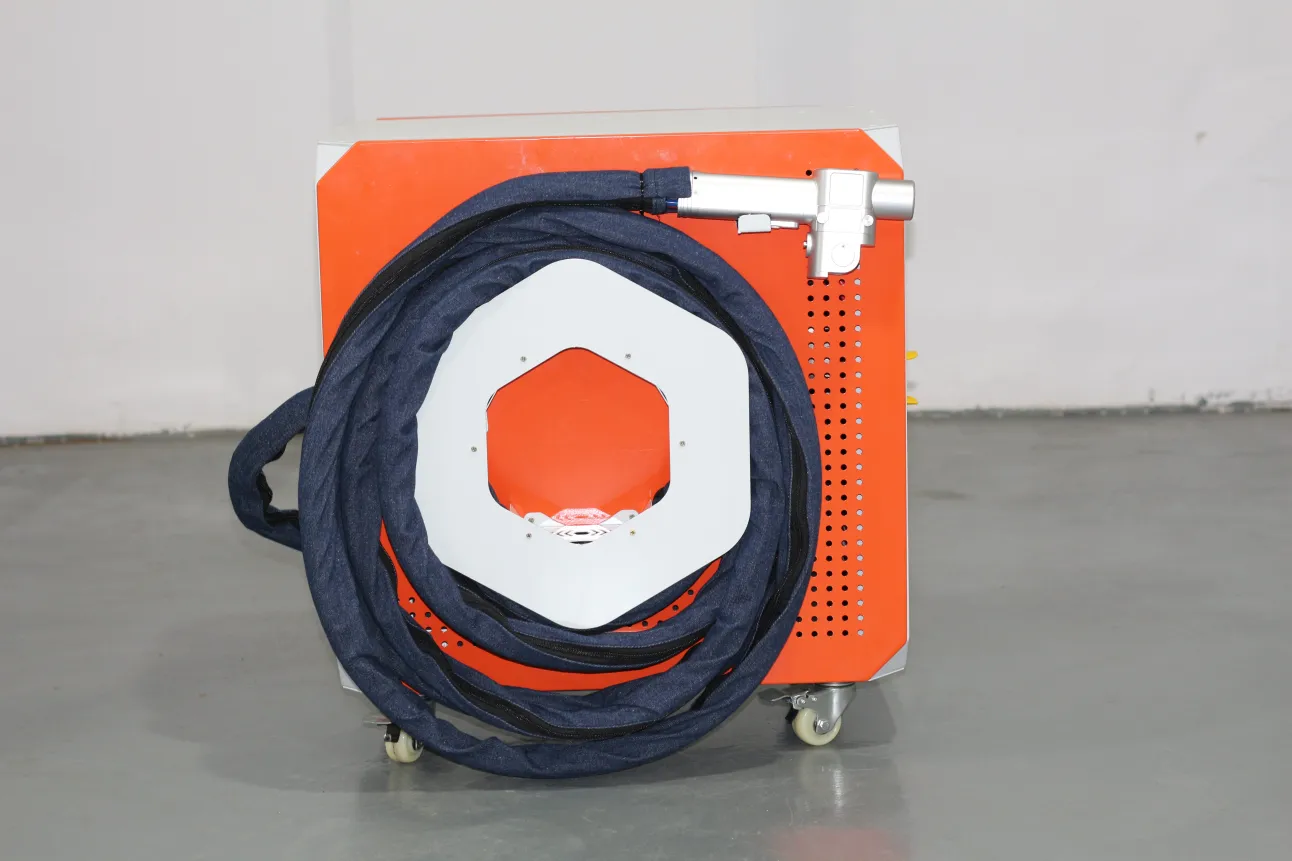

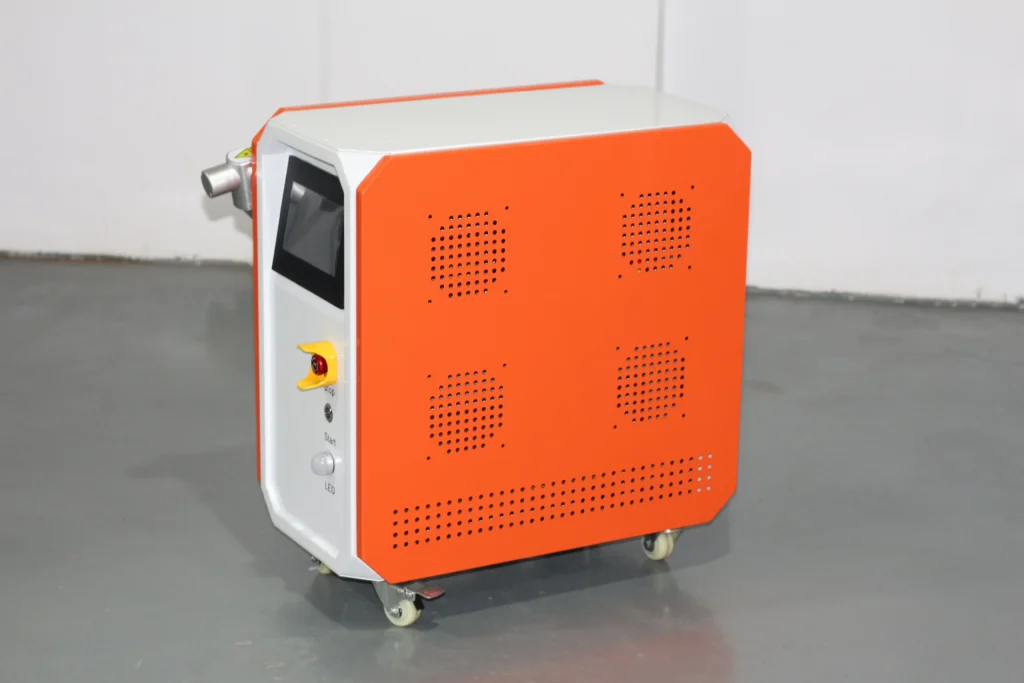

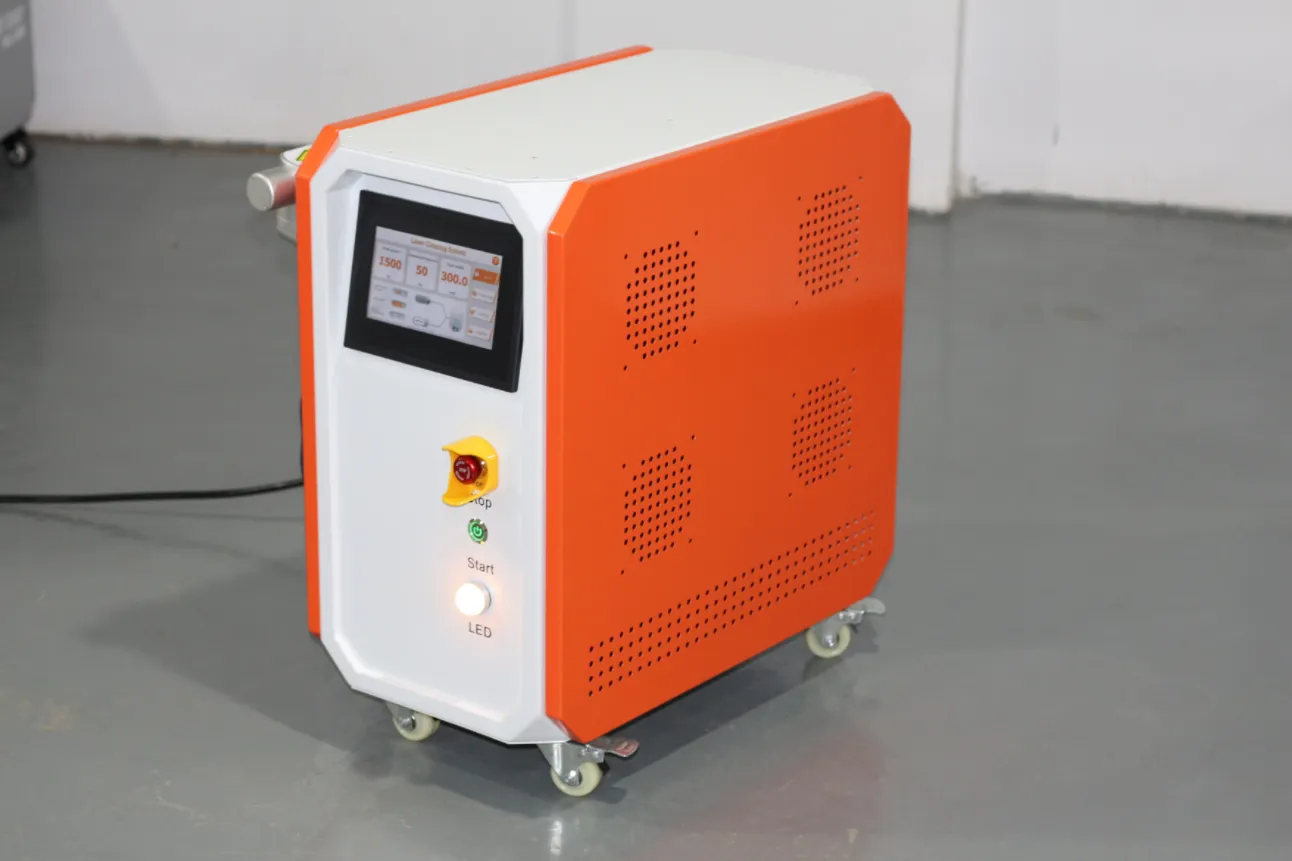

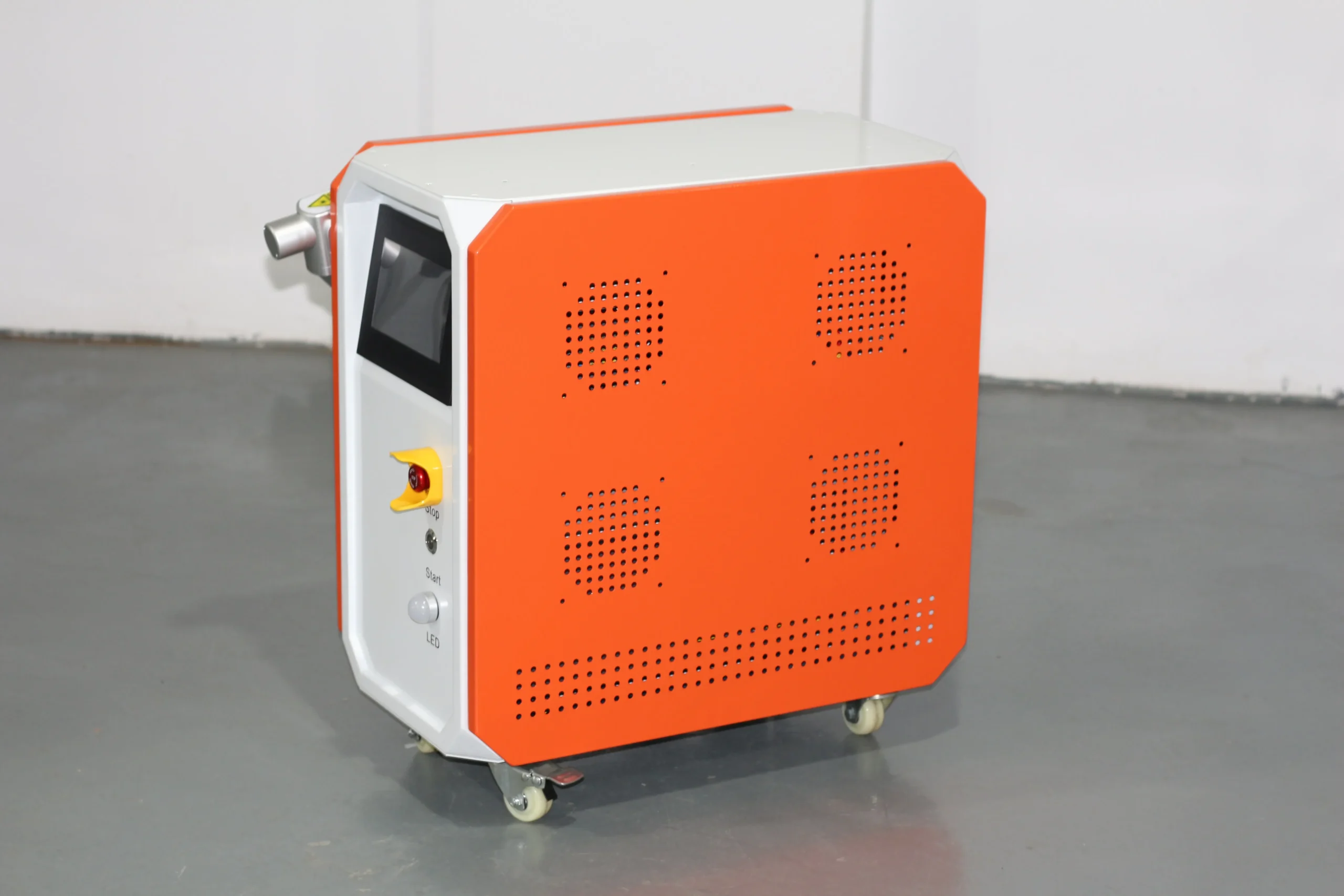

Portable Metal Enclosure — Integrated cable storage, swivel casters and accessible electrical connections.
04. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ONS-C1500W Series |
| Laser Power | 800W / 1200W / 1500W |
| Laser Type | CW Fiber Laser |
| Laser Source | MAX |
| Laser Wavelength | 1064 nm |
| Power Adjustment | 10–100% |
| Cleaning Width | 1–300 mm |
| Working Distance / Focal Length | F = 800 mm |
| Scanning Pattern | Line |
| Energy Instability | <2% |
| Beam Divergence | ≤1.5 mrad |
| Cooling Method | Forced Air Cooling |
| Standard Fiber Length | 10 m |
| Input Voltage | AC 110/220V ±10%, 50/60Hz |
| Power Consumption | ≤4.5 kW |
| Operating Temperature | 13–40°C |
| Operating Humidity | 5–75% |
| Noise Level | ≤60 dB |
| Net Weight | 50 kg |
| Package Dimensions | 730 × 450 × 750 mm |
| Package Weight | 73 kg |
05. Cleaning & Marking Applications
| Application | Description |
|---|---|
| Laser Cleaning | Rust, oxide, selected paint and surface contaminant removal from compatible metals. |
| Laser Marking | Workpiece identification with the appropriate marking head and system configuration. |
| Typical Industries | Steel fabrication, shipbuilding, automotive repair and industrial machinery maintenance. |
Cleaning results depend on the substrate, coating thickness and processing parameters.
