Description
01. ONS-C6000W Industrial CW Fiber Laser Cleaning Machine
The ONS-C6000W is a 6000W continuous-wave fiber laser cleaning system designed for heavy rust, mill scale and industrial coating removal. Equipped with a MAX laser source and integrated dual-temperature water cooling, it supports demanding metal surface preparation tasks.
 |
 |
02. Key Features & Industrial Benefits
03. Detailed Product Specifications
| Parameter | Specification |
|---|---|
| Machine Model | ONS-C6000W |
| Laser Power | 6000 W |
| Laser Type | CW Fiber Laser |
| Laser Source Brand | MAX Photonics |
| Laser Medium | Ytterbium-Doped Fiber |
| Laser Wavelength | 1064 nm |
| Power Adjustment | 10–100% |
| Energy Instability | <2% |
| Beam Divergence | ≤8 mrad |
| Cleaning Width | 1–300 mm (Adjustable) |
| Cleaning Distance | F = 800 mm |
| Cooling System | Integrated Dual-Temperature Water Chiller |
| Standard Fiber Cable | 10 m Armored Cable |
| Power Consumption | ≤25 kW |
| Power Supply | AC 380 V ±10%, 50/60 Hz, Three-Phase |
| Operating Temperature | 13–40°C |
| Operating Humidity | 5–75% (Non-Condensing) |
| Ambient Oil Mist | ≤15 mg/m³ |
| Noise Level | ≤60 dB |
| Consumables | Protective Glass / Lens |
| Package Dimensions | 1360 × 800 × 1280 mm |
| Package Weight | 300 kg |
04. Why Choose the ONS-C6000W?
05. Main Components

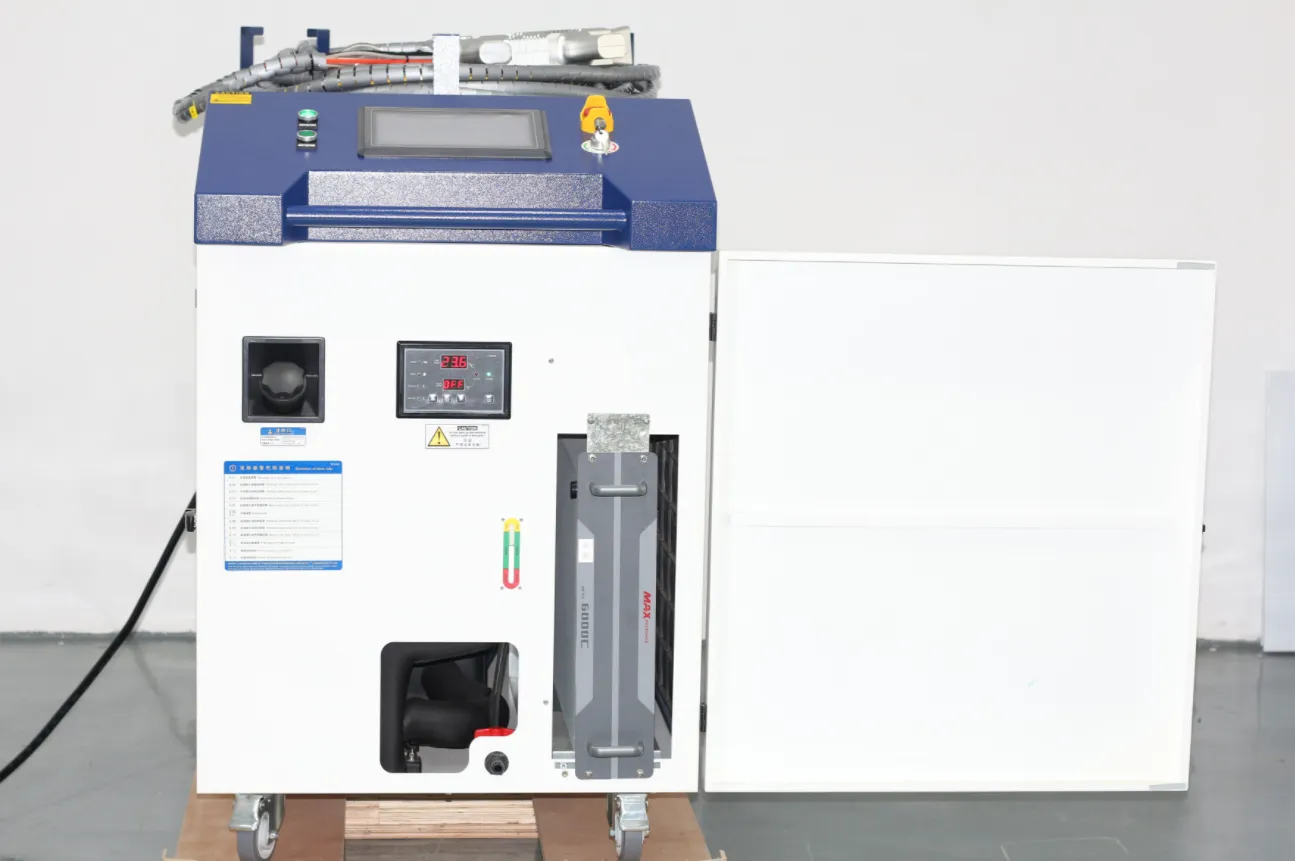

MAX 6000W Fiber Laser Module — Continuous-wave laser source installed inside the main cabinet.

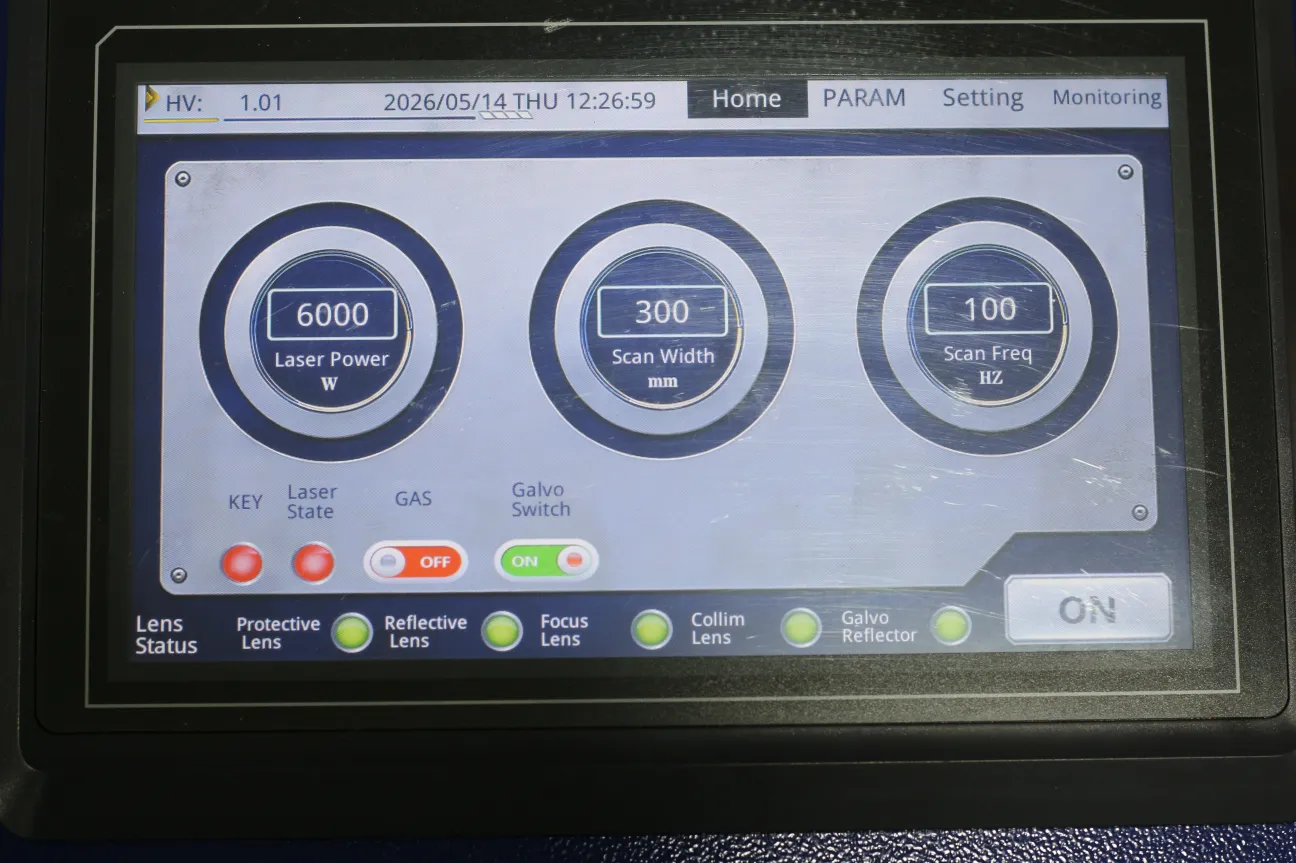

Graphical HMI Touchscreen — Displays laser power, scanning parameters and operating status.

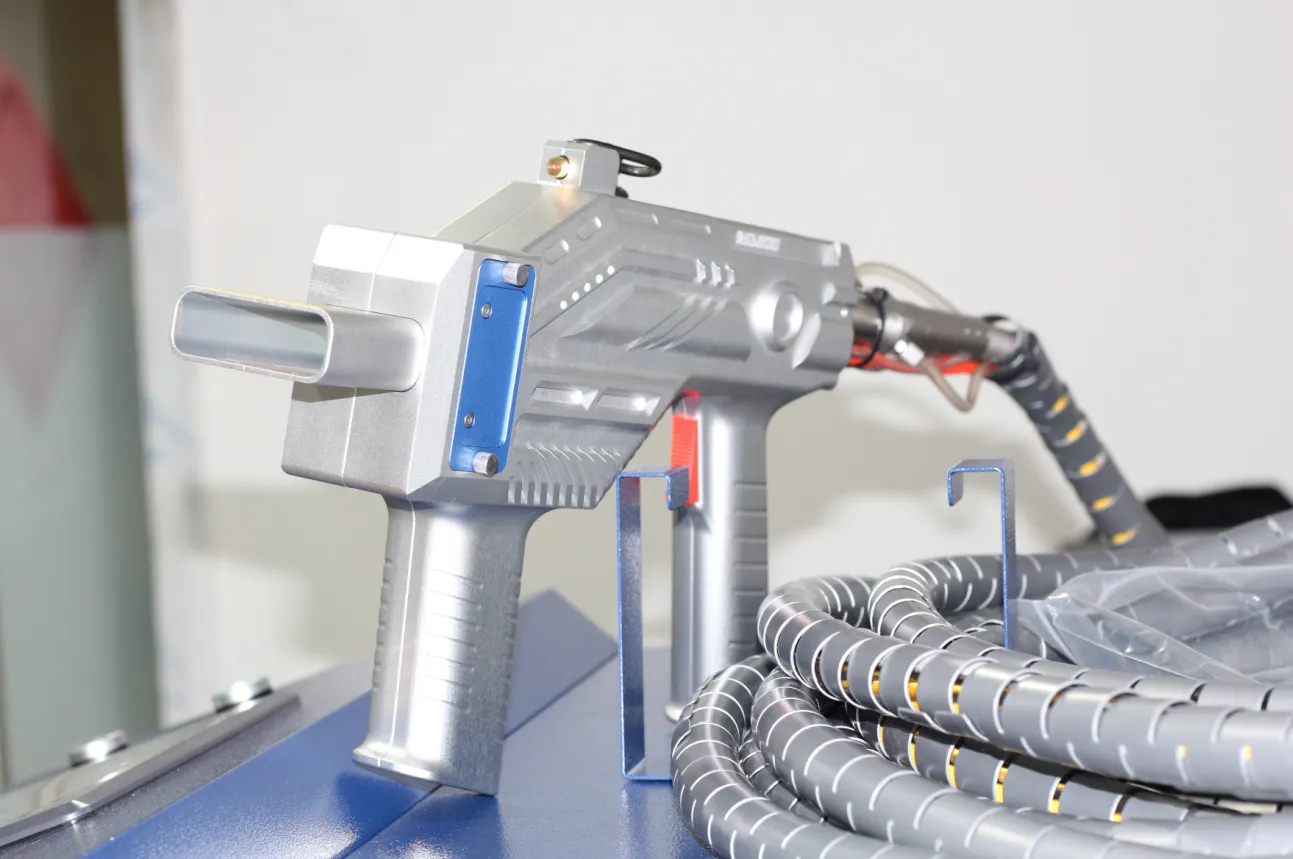

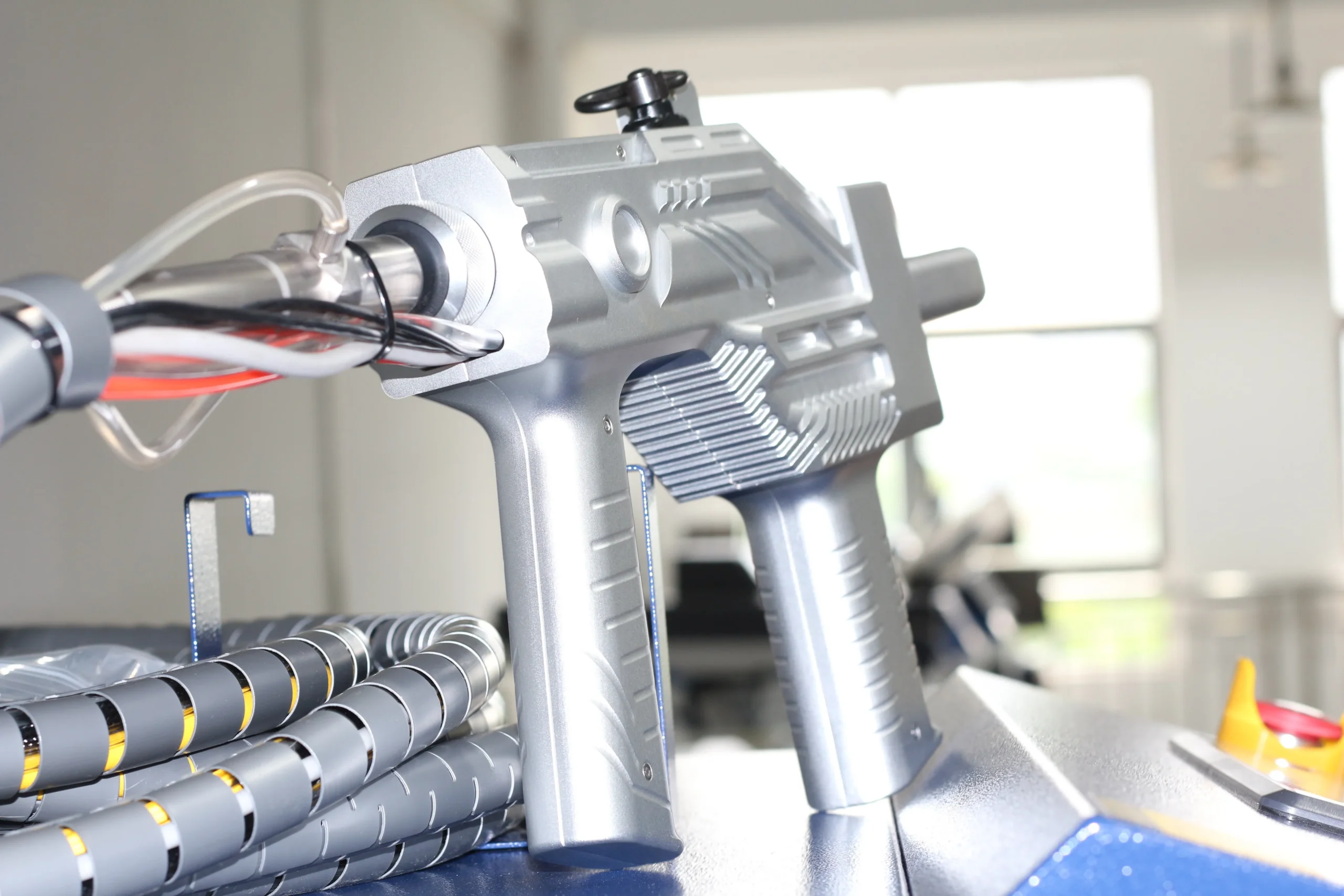

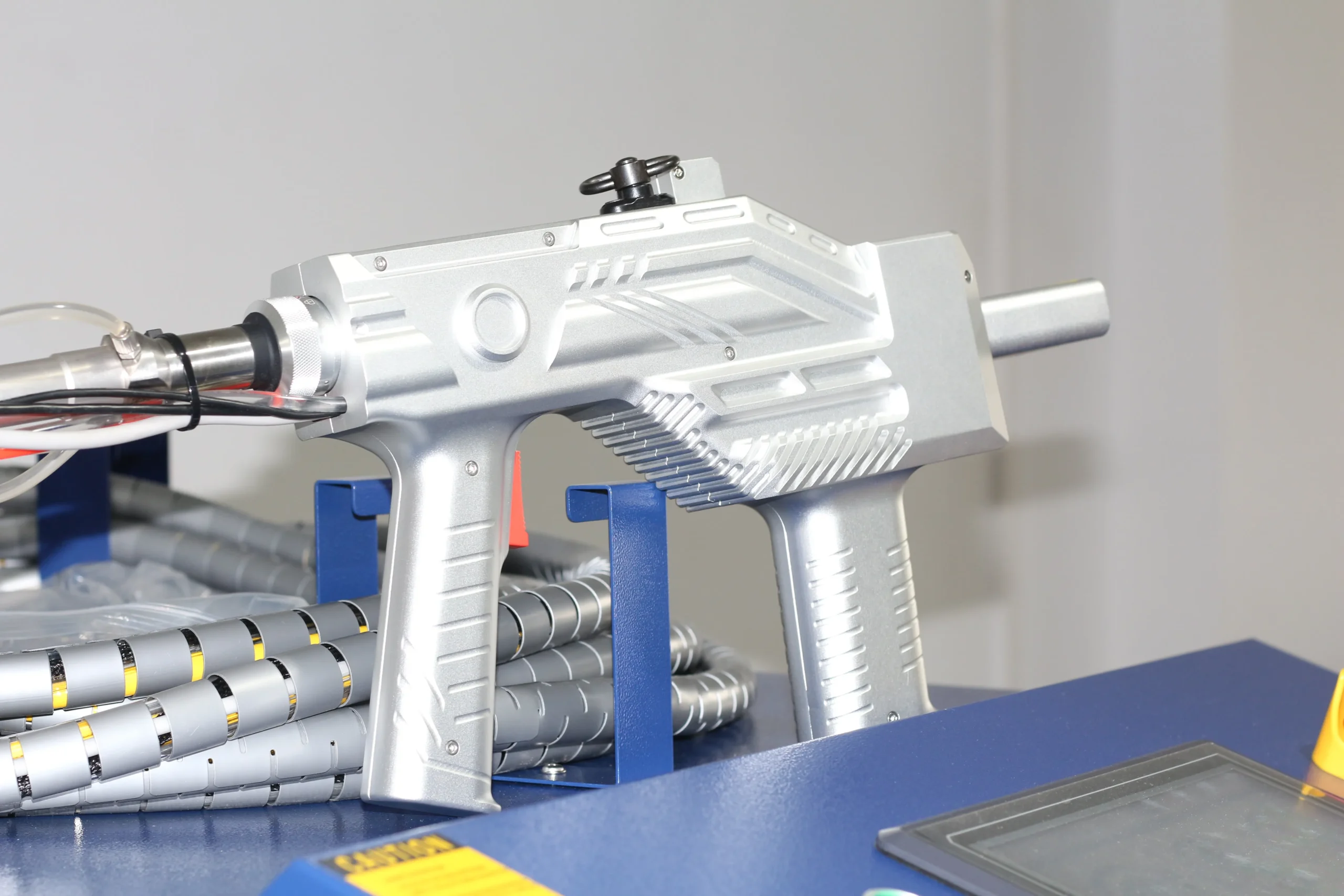

Heavy-Duty Handheld Cleaning Gun — Metal housing with dual-grip handling for industrial cleaning tasks.
10m Armored Cable Assembly — Protected fiber delivery, cooling lines and control connections.
 |
 |
 |
 |
06. Typical Industrial Applications
| Application | Typical Cleaning Tasks |
|---|---|
| Shipbuilding & Maritime Maintenance | Removal of marine rust, primer coatings and oxide scale from compatible steel surfaces. |
| Steel Structures & Fabrication | Mill scale and rust removal from structural steel and welded components. |
| Heavy Equipment Repair | Cleaning rust and selected deposits from castings and machinery components. |
| Weld Preparation & Cleaning | Oxide removal before or after welding on suitable metal surfaces. |
Processing results depend on substrate material, coating thickness and laser settings.
