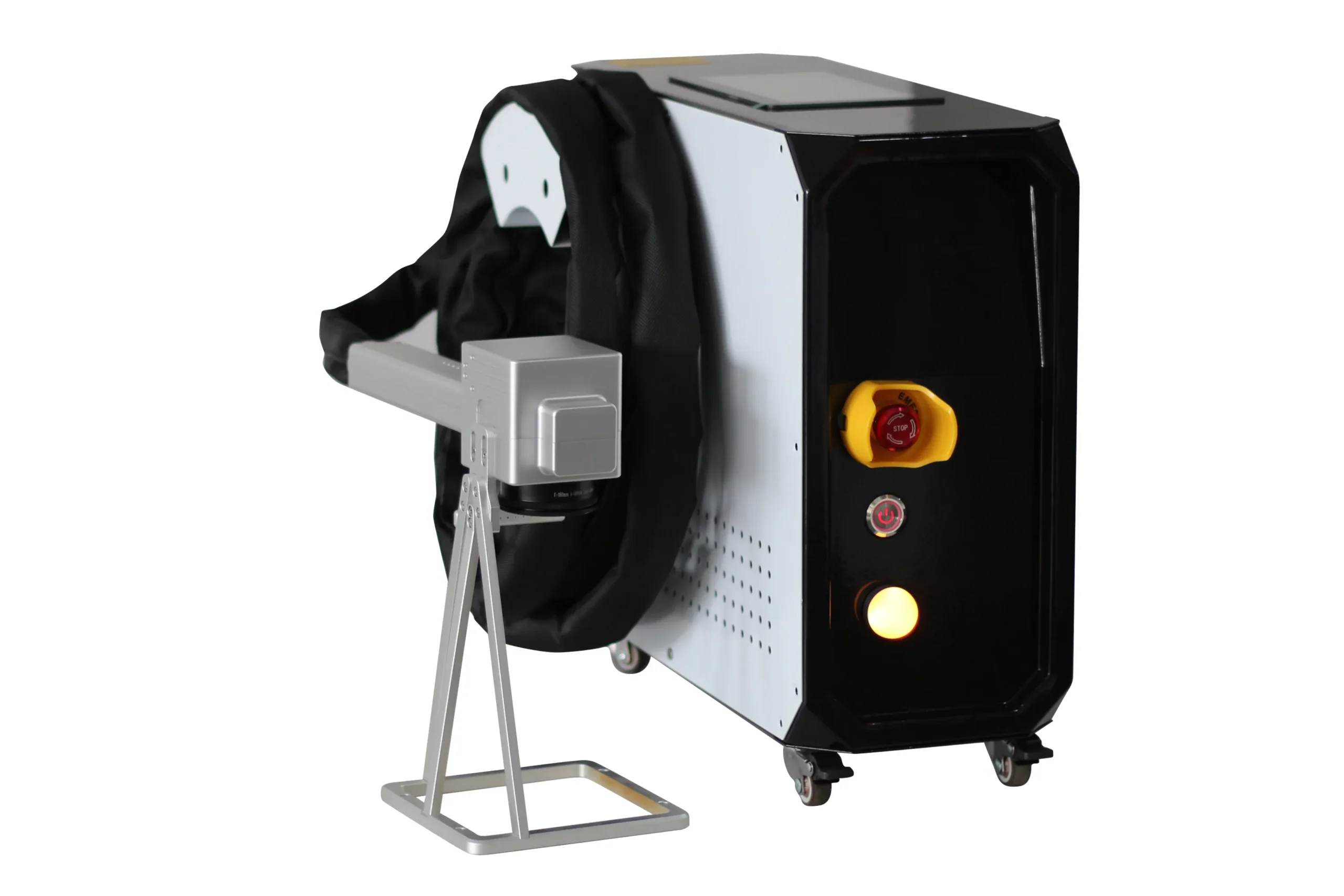

200W/300W Pulse Fiber Laser Cleaning Machine 4-in-1 | MOPA Technology for Cleaning, Marking, Engraving & Cutting

Description

Designed for high-end industrial surface treatment, this 200W/300W MOPA pulse laser cleaning system delivers a non-destructive, eco-friendly,and highly stable solution for rust, paint, oil, and oxide layer removal.

 Personalized Machine Advantages

* **Smart 4-in-1 Integration:** This is not just a cleaning machine. With a one-key switch on the control panel, it seamlessly transforms into a fiber laser marker, deep engraver, or thin metal sheet cutter, maximizing your workshop’s ROI.
* **Premium JPT/GZ MOPA Laser Source:** Powered by China’s leading MOPA laser generator, featuring flat-top beam output and energy stability with less than 5% fluctuation. It provides 13-500ns wide pulse width adjustment to handle sensitive surfaces.
* **Intelligent Dual-Axis Scanning Head:** Built with dual high-speed copper motors and imported quartz lenses, the gun body weighs only 750 grams. It features an integrated position focal bracket for quick, precise, and effortless manual operations.

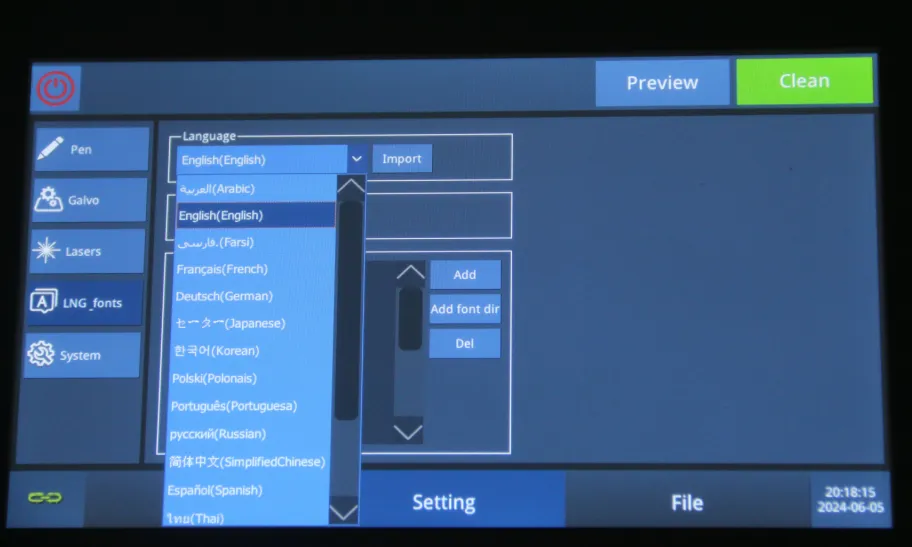

* **Multi-Language Smart Interface:** The 7-inch capacitive touchscreen features an intuitive single-chip system, pre-loaded with 9 distinct cleaning paths (straight, circle, petal, helix, etc.) and supports 20 global languages.

Technical Specifications

Main Components

The pulsed laser cleaning machine primarily consists of a MOPA cleaning laser, a control board, a control system, a pulsed dual-oscillation cleaning head, a field lens, a switching power supply, and an enclosure.

Component Name	Images

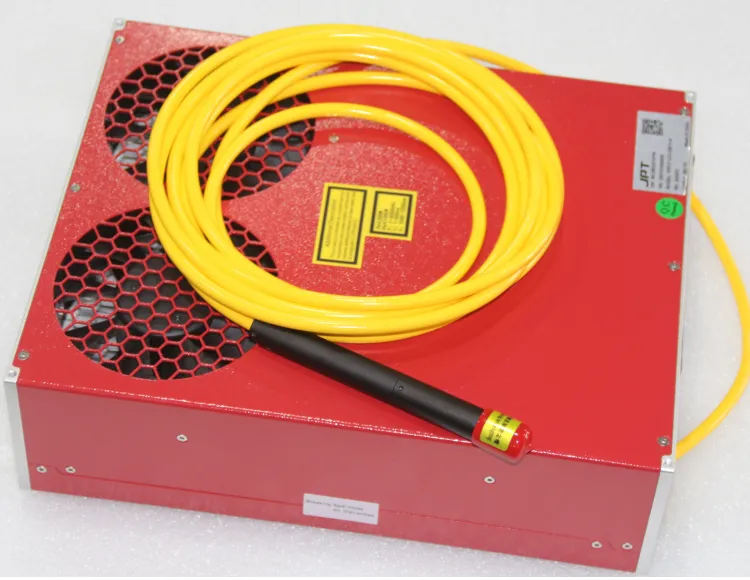

Pulsed Laser A Chinese laser manufacturer specializing in lasers for laser cleaning, featuring a MOPA (Modulated Optical Power Amplifier) design that delivers stable output power and a uniform beam profile.

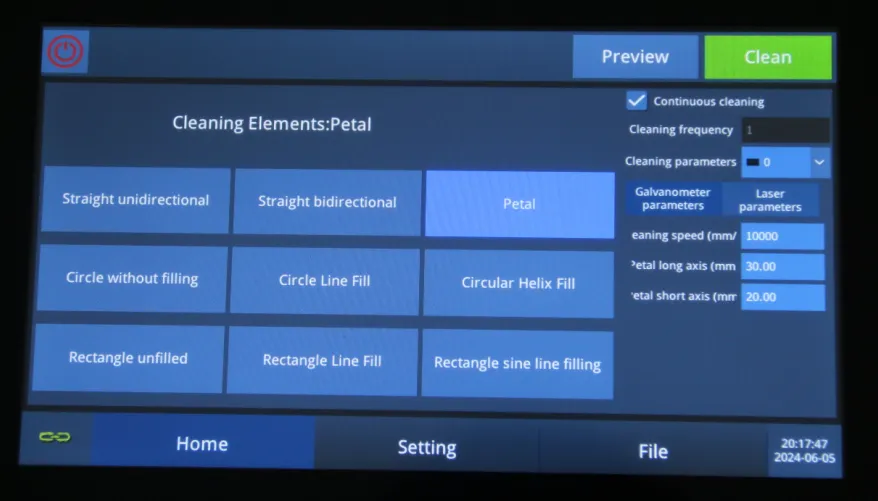

Control System Features a 7-inch capacitive touchscreen and microcontroller technology, allowing adjustment of laser power, laser frequency, pulse width, cleaning width, fill angle, and spacing, as well as 9 cleaning modes and 20 languages. Compatible with marking systems.

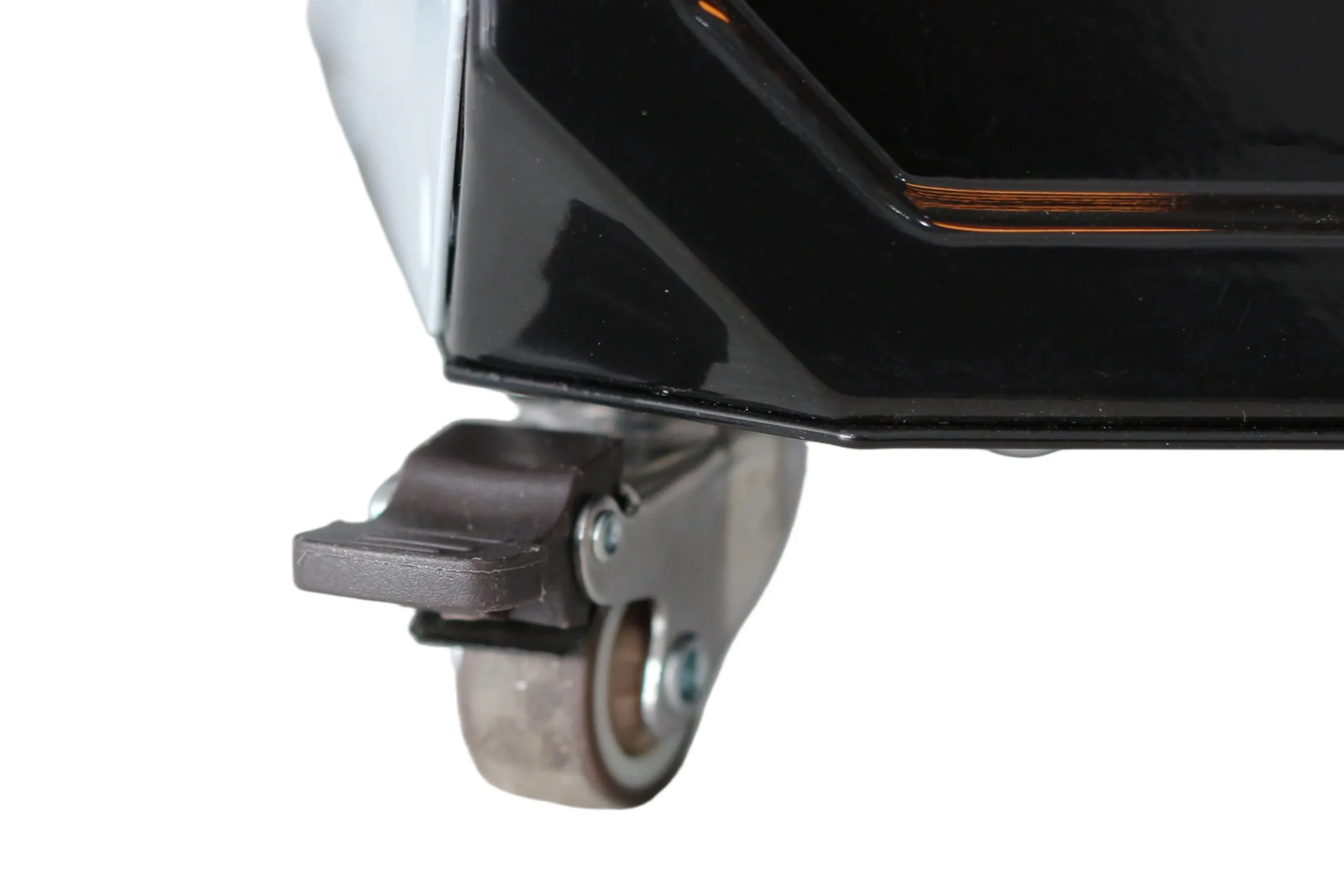

Silent Casters This machine is equipped with four standard casters, making it easy to move. Its silent design ensures no noise or scuff marks.

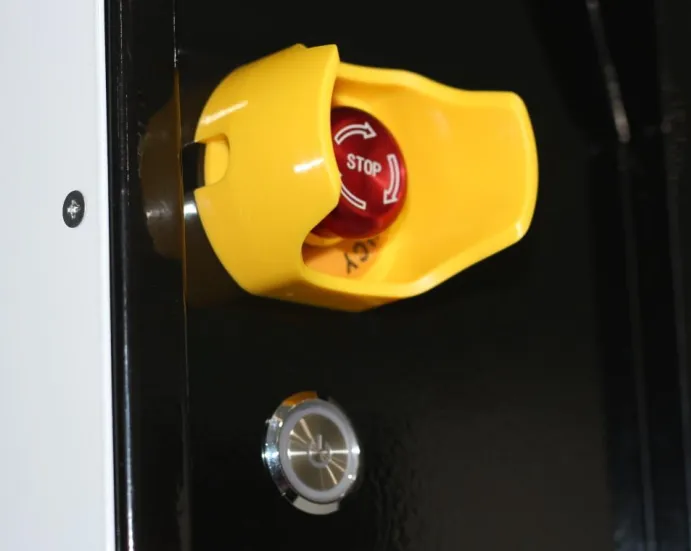

Emergency Stop and Start Buttons Made of solid metal, these buttons are durable, long-lasting, and suitable for a wide range of harsh environments

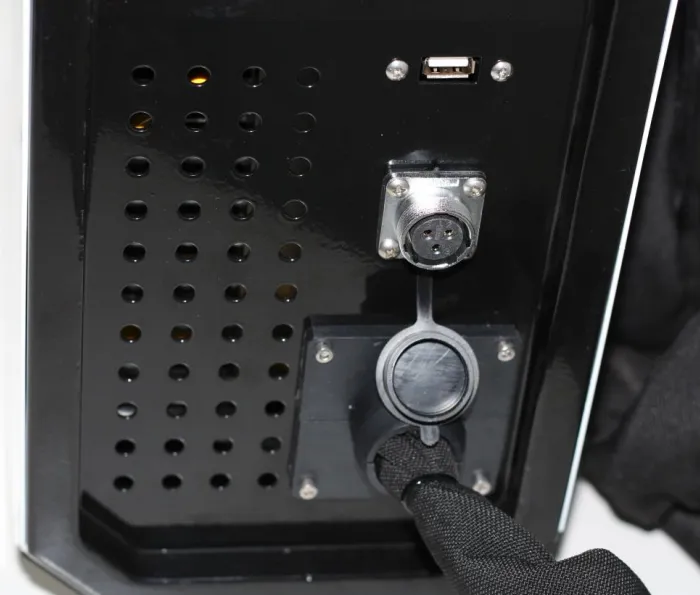

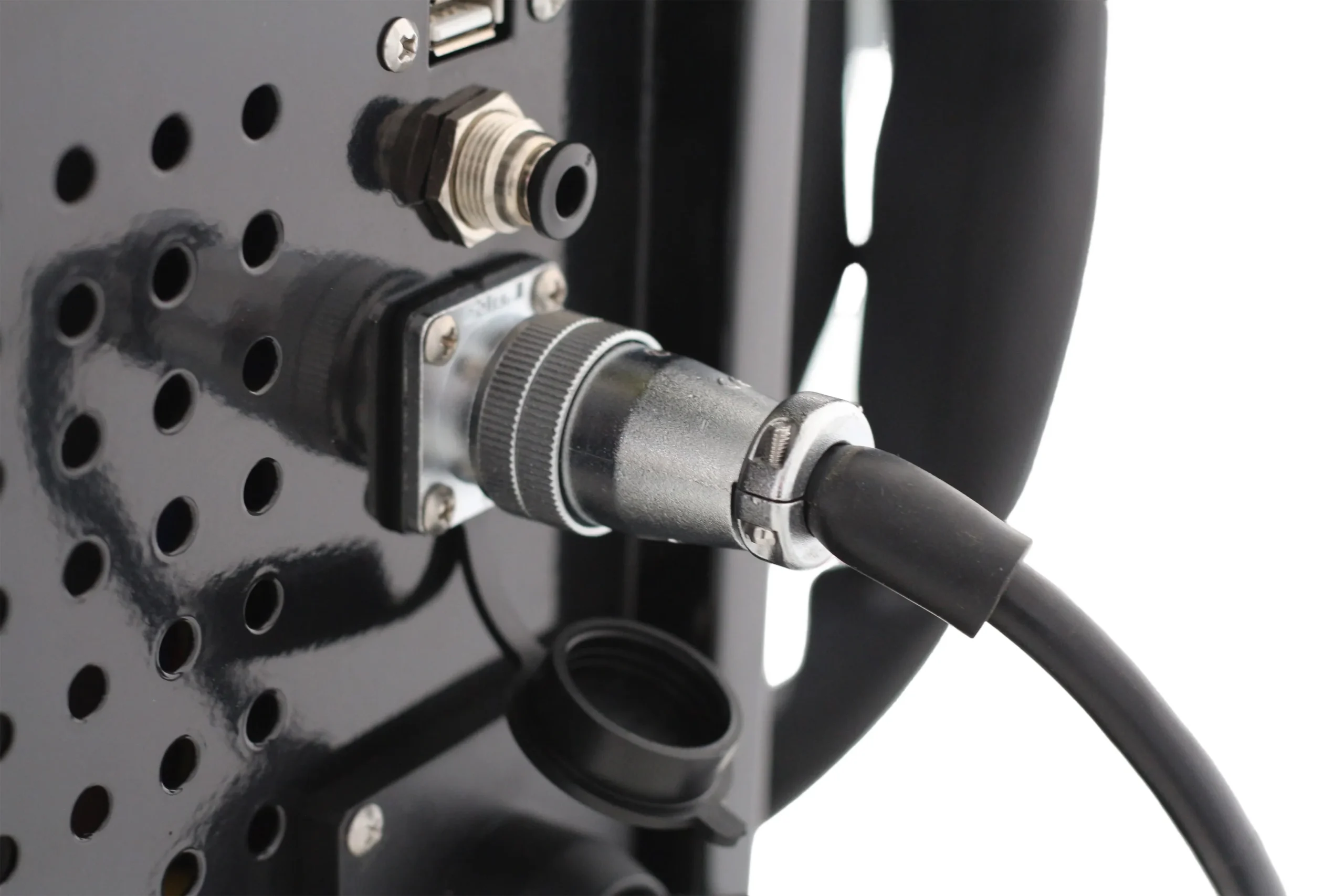

Power Plug Features an all-aluminum alloy aviation-grade connector for durability and stable contact performance

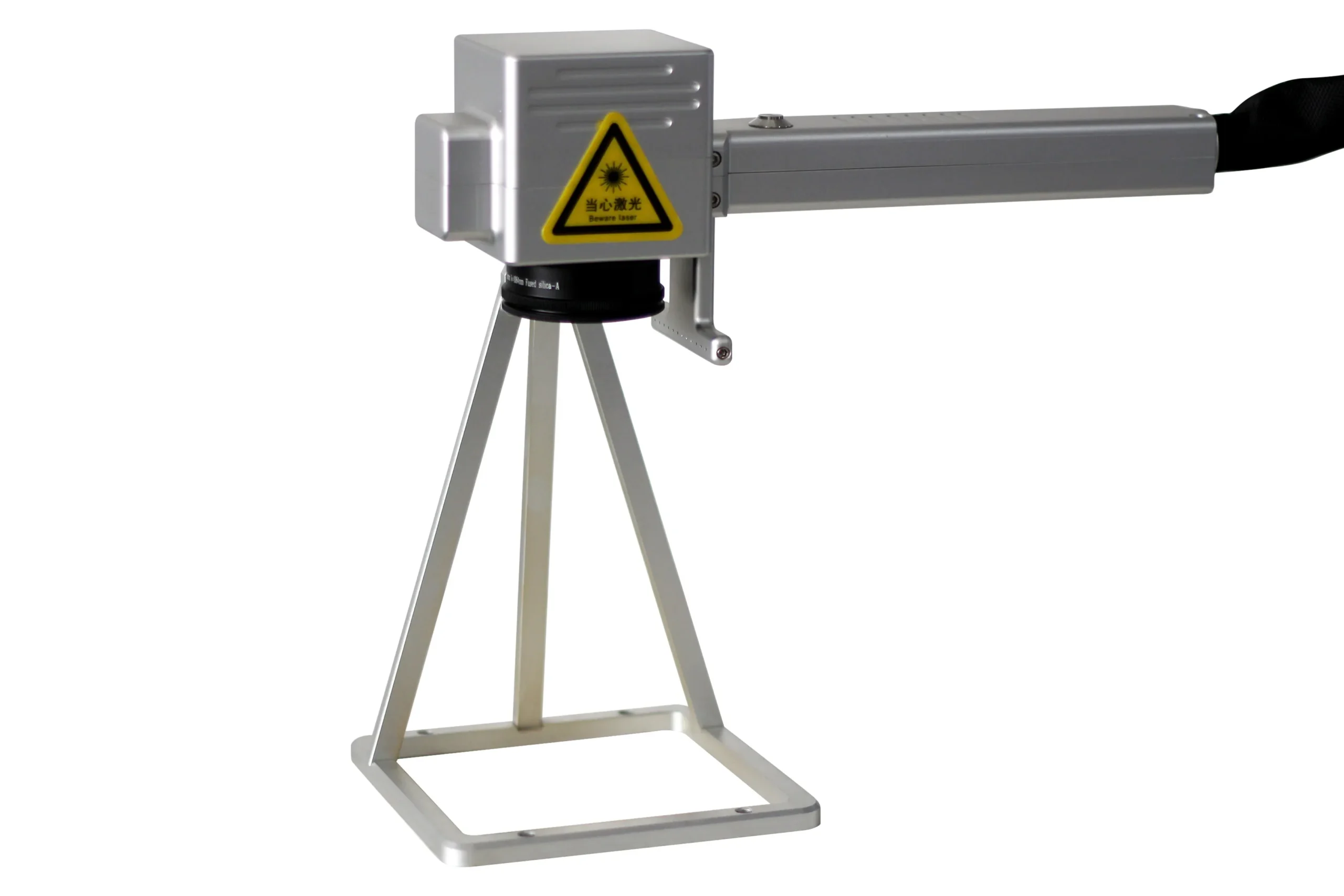

Handheld Cleaning Head (Compatible with Marking Function) Constructed from all-aluminum alloy with a matte silver electroplated finish, it offers a comfortable grip and is resistant to wear and impact. Weighing 750 grams, the gun body is designed for extended use without fatigue. It features a metal button rated for over 500,000 clicks, dual galvanometers, and an imported high-speed all-copper motor. It maintains a positioning accuracy of less than 5 μrad under heavy loads, with a positioning speed of 20 m/s, and operates within a temperature range of -20°C to 60°C. High-speed drive at 20,000 Hz/s; fast response, minimal error, and silent operation. Imported quartz lens with durable core elements. Equipped with a special positioning bracket for precise focusing, making cleaning operations more convenient; the bracket is also removable. Features one-button switching to handheld marking mode, seamlessly integrating handheld cleaning, marking, thin-sheet cutting, and deep engraving.

Machine Features

• The machine housing is made of sheet metal that has been laser-cut, welded, and polished, making it suitable for various harsh working environments while offering an attractive and durable appearance.
• The entire body is coated with metallic paint, resulting in a smooth, glossy surface with vibrant color. It is resistant to high temperatures, corrosion, impact, and friction, and is waterproof and oil-resistant.
• The metal power switch and power connector ensure a long service life, responsive operation, and excellent electrical conductivity, making them suitable for harsh working environments.

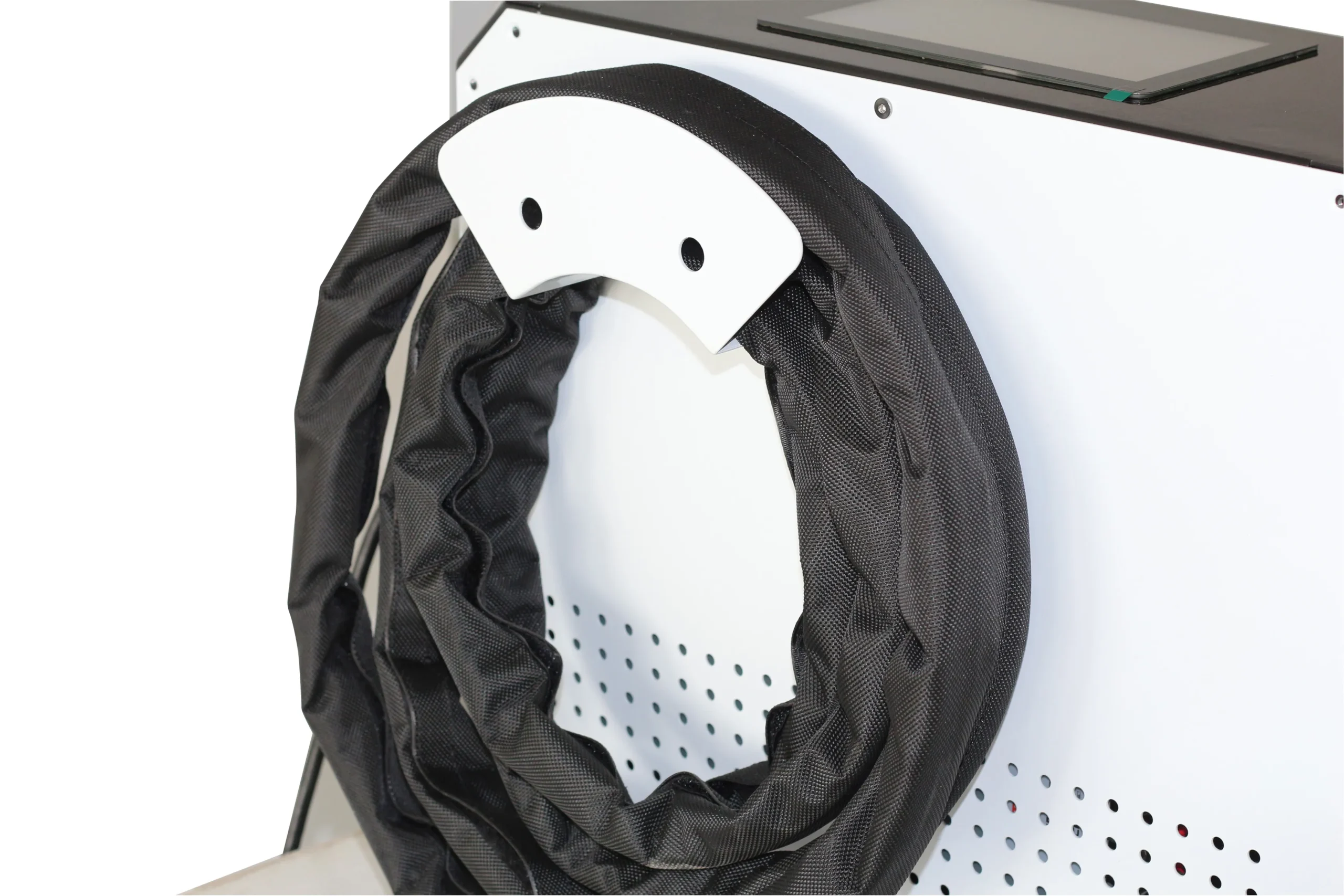

• The fiber optic protective sleeve is made of high-density fiber, offering fire resistance, water resistance, and corrosion resistance, effectively protecting the fiber optic cable during long-term use in various harsh environments.
• The laser is manufactured by a well-known Chinese brand, featuring a uniform optical mode and stable laser output energy. Flat-top beam design, 5MJ energy density, and low power consumption with air cooling.
• The control system utilizes a highly sensitive capacitive touchscreen with fast response times. It offers 9 cleaning modes, including linear, circular, petal, solid circle fill, horizontal, and vertical scanning, and supports 20 languages. The interface is simple to operate and adjust, allowing for customization of laser power, frequency, pulse width, pattern size, cleaning speed, and response time.
• The cleaning head weighs 500g and features dual-axis X/Y imported copper-wound motors. The lens is made of high-temperature quartz material (silicon wafer), which does not heat up or deform. The fixed mounting bracket design facilitates cleaning operations.

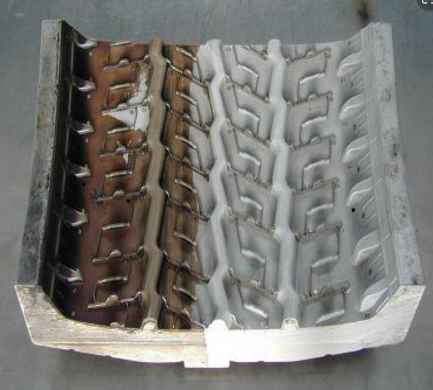

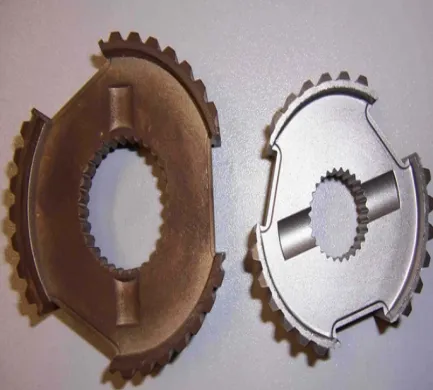

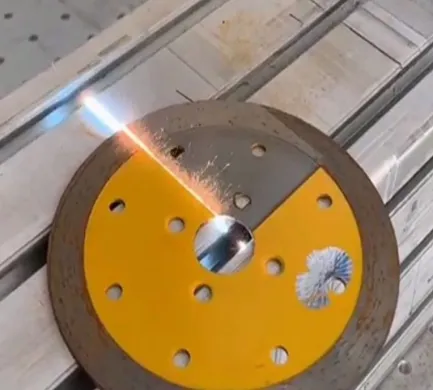

Image of the cleaned sample
