Description
01. Industrial CW Laser Cleaning for Heavy-Duty Surface Restoration
The ONS-C3000W Series delivers high-power continuous-wave fiber laser cleaning for heavy rust removal, paint stripping and industrial metal surface preparation. Available in 1500W, 2000W and 3000W, it combines a MAX fiber laser source with an integrated water-cooling system.
 |
 |
02. Technical Excellence for Industrial Applications
Available in three power configurations, the system features adjustable laser output, a cleaning width of up to 300 mm and a standard 10 m armored fiber cable.
| Parameter | Specification |
|---|---|
| Machine Model | ONS-C3000W Series |
| Laser Power | 1500W / 2000W / 3000W |
| Laser Type | CW Fiber Laser |
| Laser Source Brand | MAX |
| Laser Wavelength | 1064 nm |
| Power Adjustment | 10–100% |
| Cleaning Width | 1–300 mm |
| Focal Length / Working Distance | F = 800 mm |
| Energy Instability | <2% |
| Beam Divergence | ≤8 mrad |
| Cooling Method | Integrated Water Cooling |
| Standard Fiber Length | 10 m |
| Power Consumption | ≤9 kW* |
| Input Voltage | AC 380V ±10%, 50/60Hz |
| Operating Temperature | 13–40°C |
| Operating Humidity | 5–75% |
| Noise Level | ≤60 dB |
| Consumable | Protective Lens |
| Package Dimensions | 900 × 640 × 1180 mm* |
| Package Weight | 150 kg* |

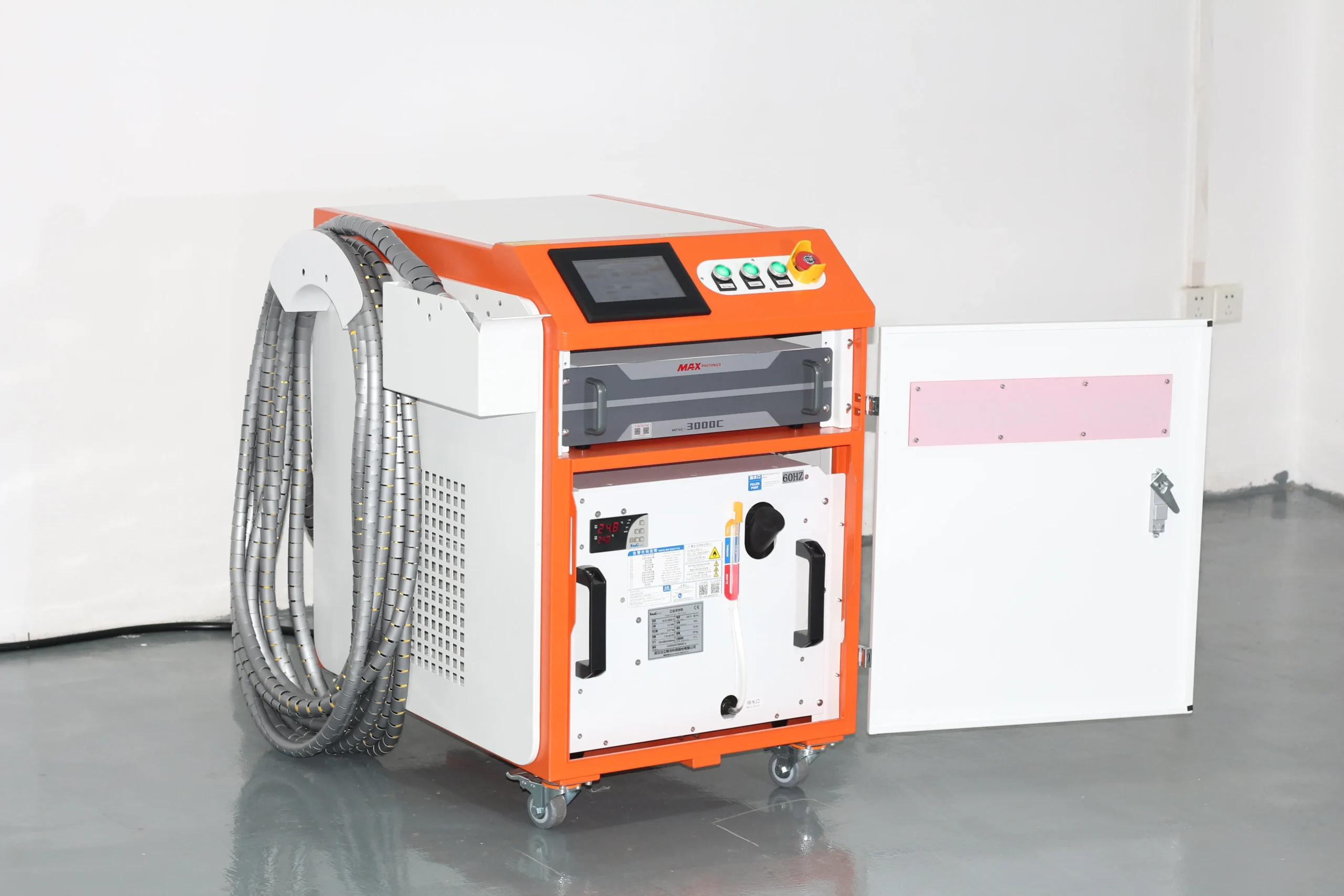

03. Main Components & Machine Design
The ONS-C3000W Series integrates key industrial components for controlled laser cleaning, stable cooling and convenient workshop operation.
MAX CW Fiber Laser Source 1064 nm laser source for industrial surface cleaning. |

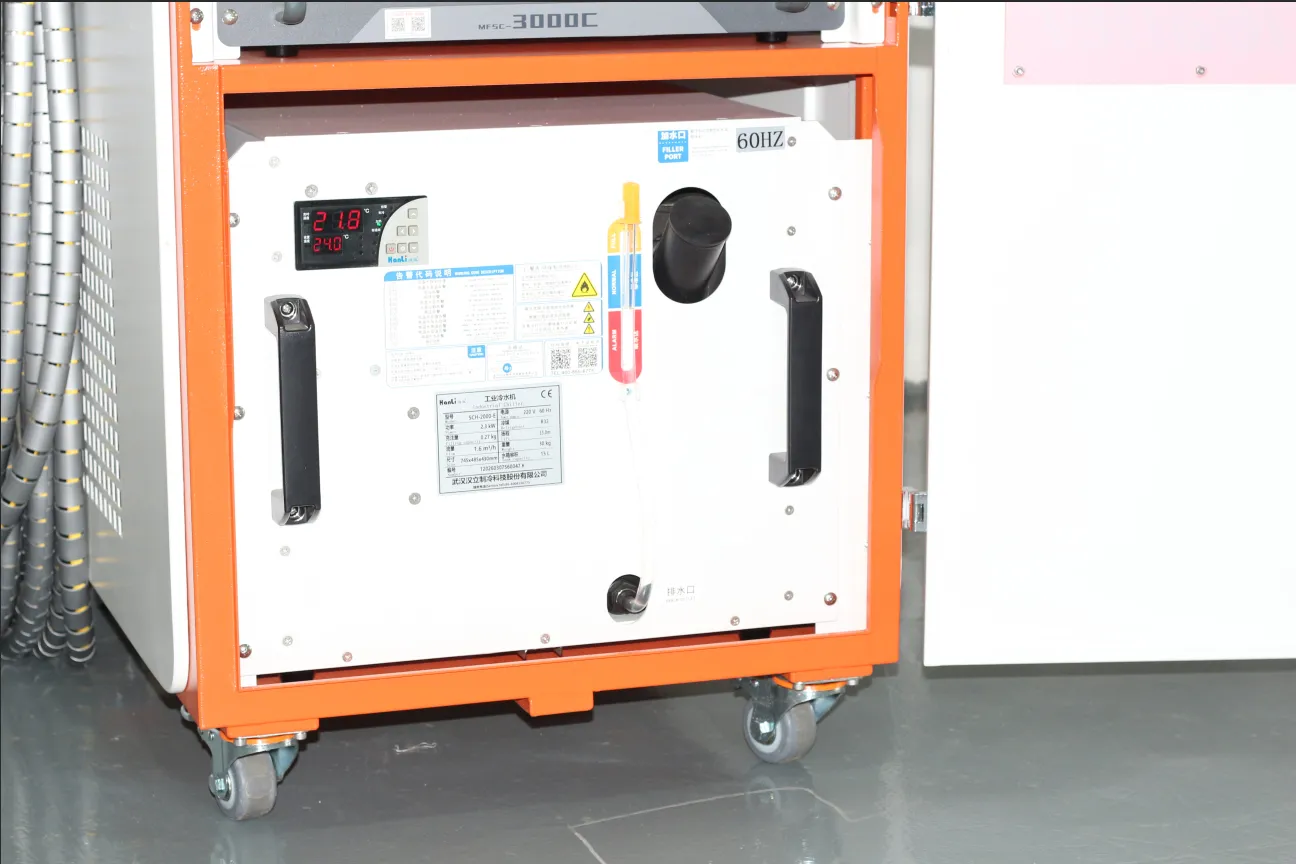

Integrated Water Chiller Built-in cooling with temperature monitoring. |

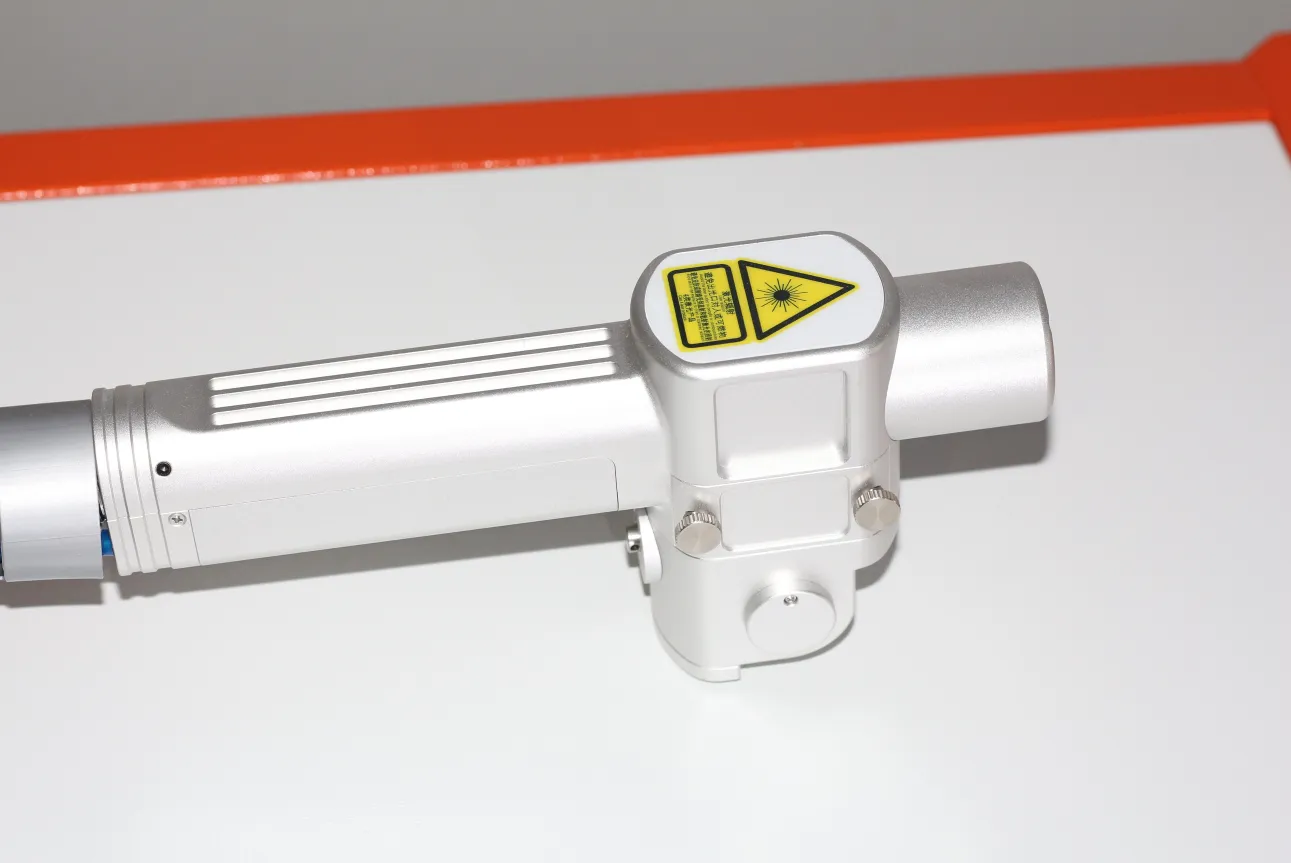

Handheld Cleaning Head Ergonomic design with adjustable scanning width. |
Touchscreen Controller Adjustable laser power and scanning settings, with emergency stop control. |

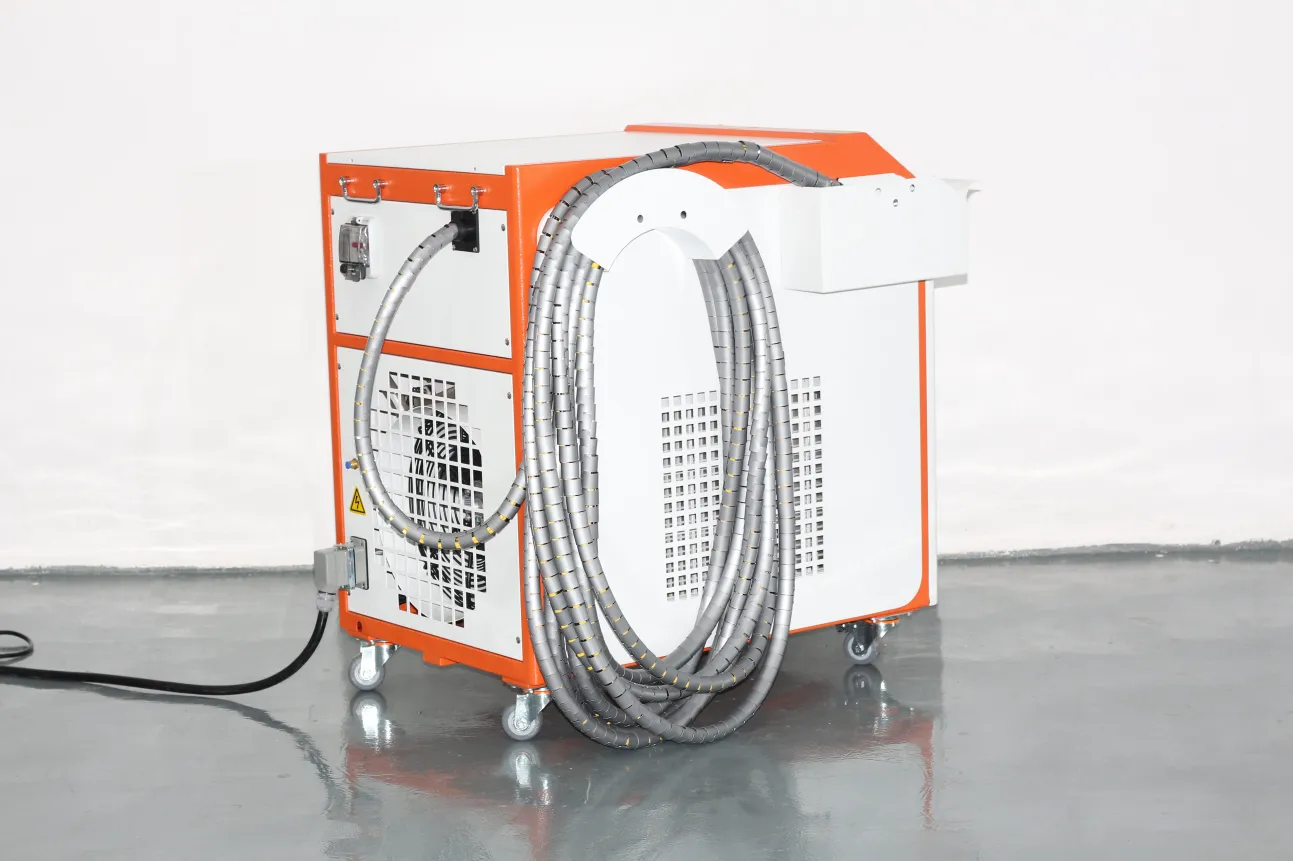

10 m Armored Fiber Cable Protected fiber delivery with side-mounted cable storage. |
04. Why Choose Our Industrial Laser Cleaning Solution?
05. Typical Industrial Applications
| Application | Typical Cleaning Task |
|---|---|
| Shipbuilding & Maritime Maintenance | Rust and coating removal from steel structures. |
| Steel Fabrication | Mill scale and oxide removal before welding or surface treatment. |
| Automotive & Equipment Repair | Selected coating removal and metal surface preparation. |
| Industrial Machinery Maintenance | Cleaning castings, machine components and equipment surfaces. |
Cleaning results depend on material properties, coating thickness and processing parameters.
