Description
Integrated 200W YAG Laser Welding for Jewelry Repair
The BGW-JY200 combines a 200W pulsed YAG laser, built-in water cooling and dual-view observation in one floor-standing cabinet. Designed for jewelry repair and precision micro-welding, it supports localized spot welding, joint restoration and defect filling on compatible precious metals.
 |
 |
Key Features & Industrial Benefits
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Model | BGW-JY200 |
| Laser Type | Pulsed YAG Laser |
| Maximum Laser Power | 200 W |
| Laser Wavelength | 1064 nm |
| Maximum Single-Pulse Energy | 130 J |
| Current Adjustment Range | 10–300 A |
| Pulse Width | 0.1–15 ms |
| Pulse Frequency | 1–50 Hz |
| Welding Spot Size | 0.4–3.0 mm |
| Welding Focal Length | F = 110 mm |
| Energy Stability | <2% |
| Beam Divergence | ≤8 mrad |
| Optical Observation | 10× Stereo Microscope |
| CCD Camera | 720P CCD |
| Display | 7-Inch Monitor with Crosshairs |
| Cooling System | Integrated Water Cooling |
| Cooling Controller | Digital Temperature Controller |
| Specified Continuous Working Time | 16 Hours |
| Noise Level | ≤60 dB |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| Specified Input Power | 6 kW |
| Operating Temperature | 13–40°C |
| Operating Humidity | 5–75% |
| Permitted Oil Mist Concentration | ≤15 mg/m³ |
| Machine Dimensions | 710 × 400 × 1120 mm |
| Machine Net Weight | 70 kg |
| Package Dimensions | 750 × 440 × 1250 mm |
| Package Weight | 90 kg |
Dual-View Observation for Precision Welding
Integrated Cooling System — Built-in water chiller with digital temperature monitoring and fault alarms.

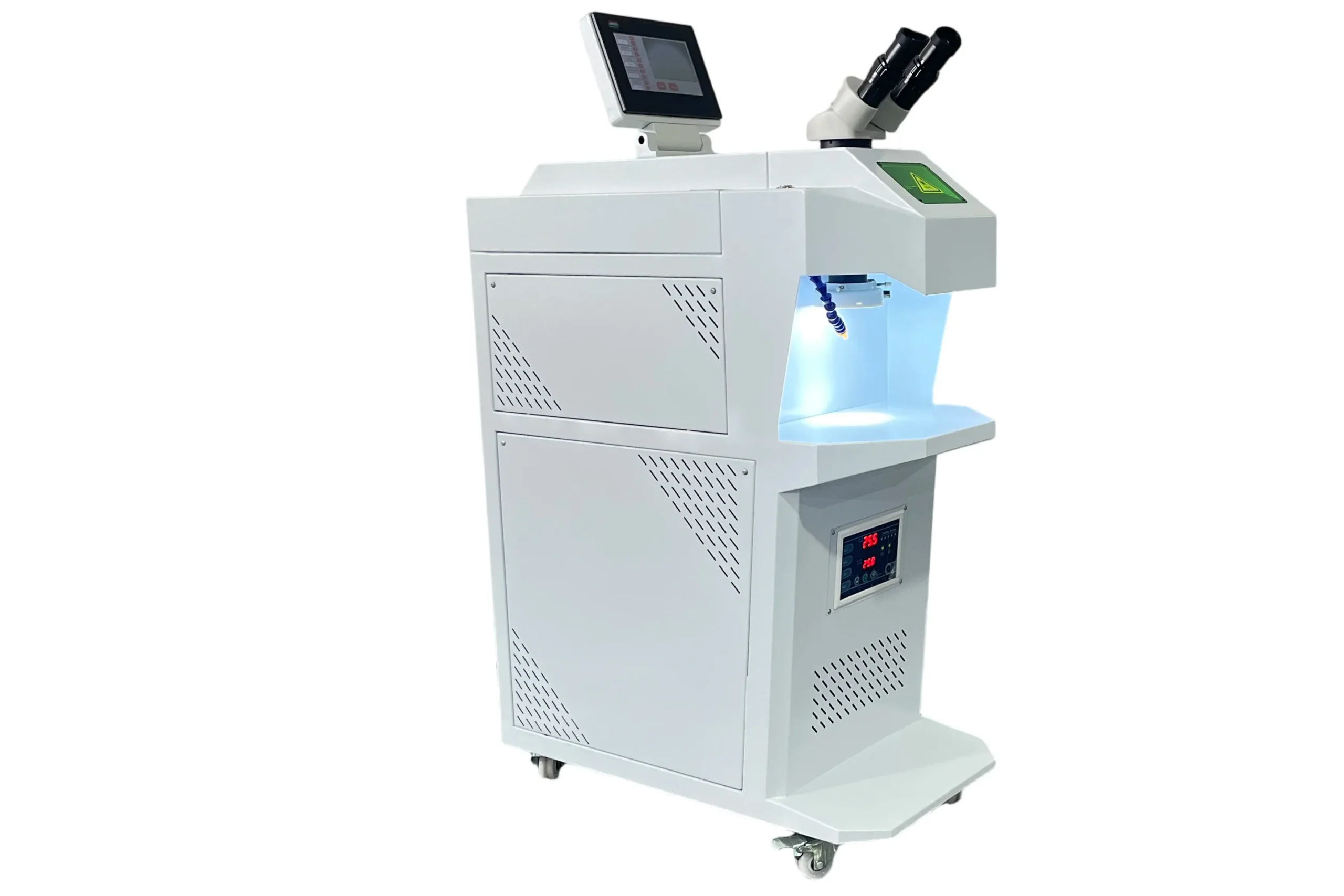

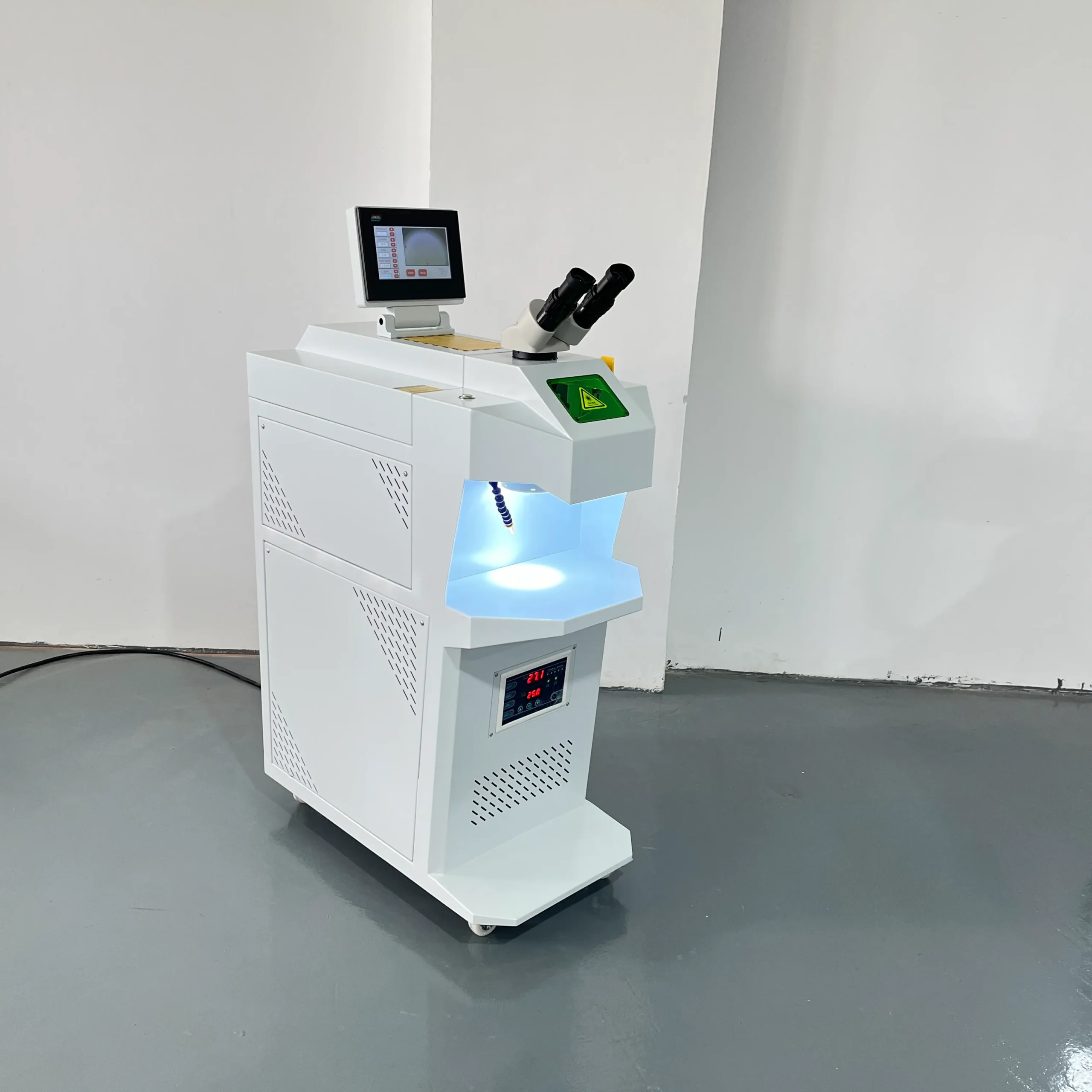

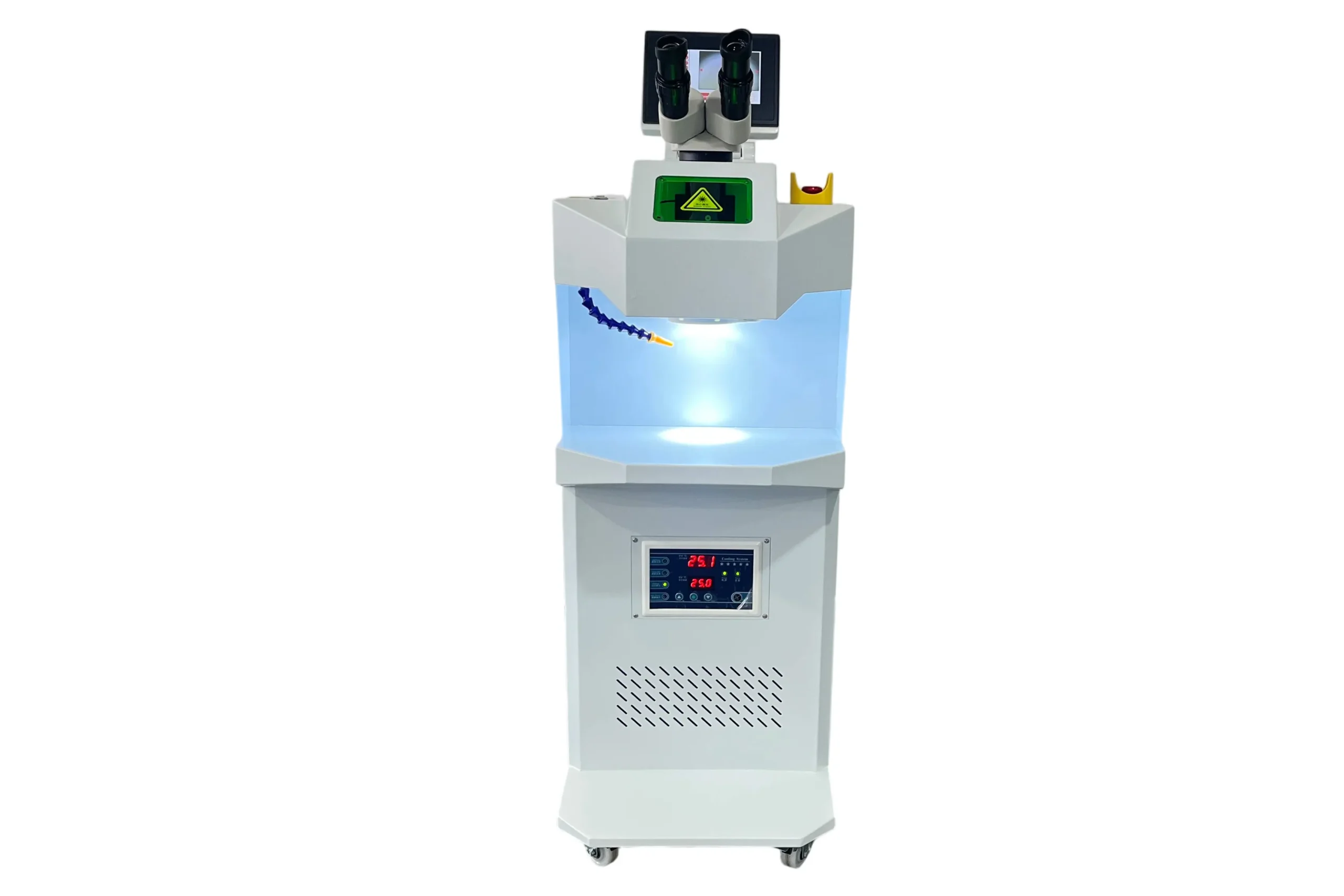

Compact Floor-Standing Cabinet — Laser source, cooling components and electronics housed in one enclosure.
Comfortable Working Chamber — LED lighting, padded armrests and accessible emergency stop control.
Flexible Workshop Positioning — Swivel casters and AC 220V single-phase power connection.

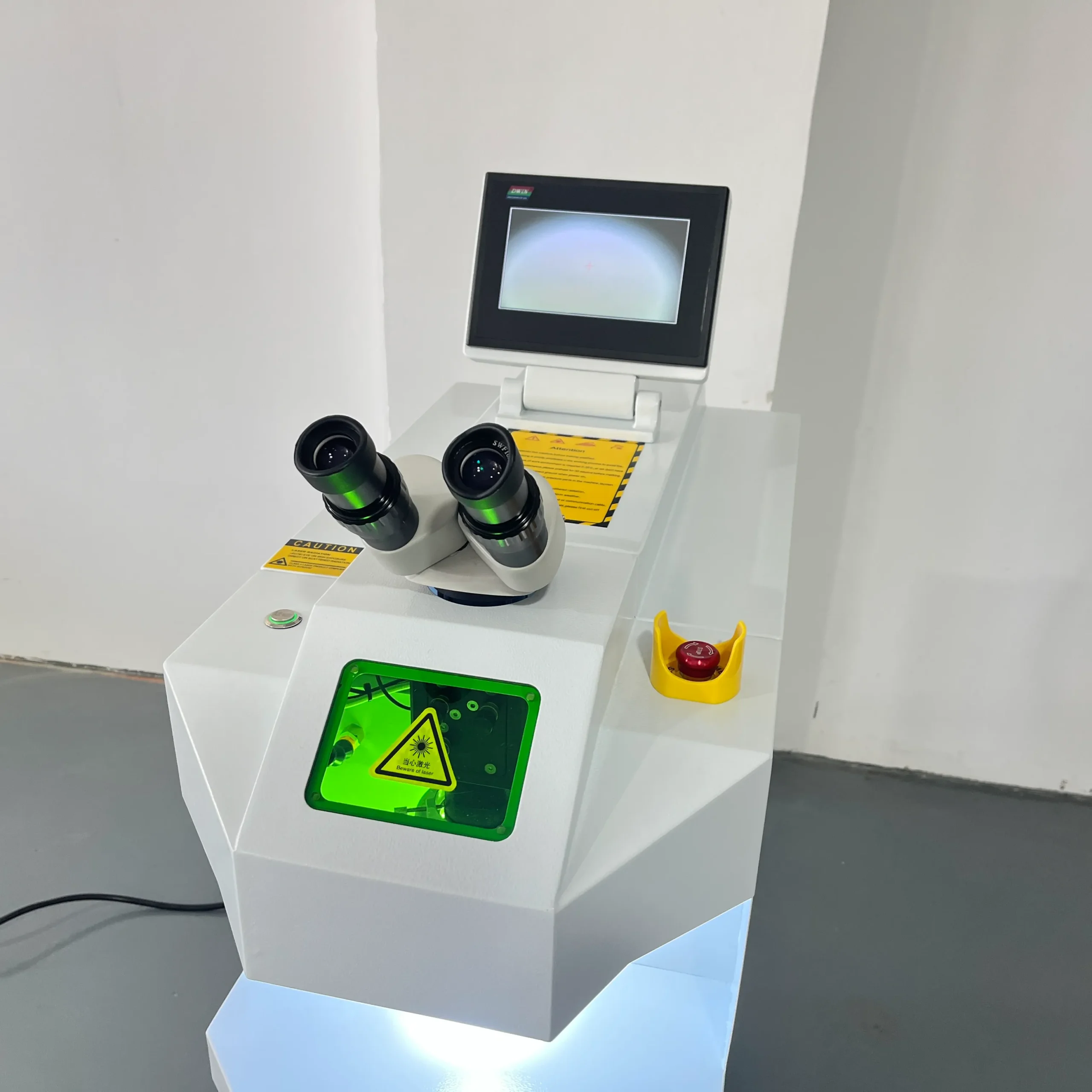

10× Stereo Microscope — Detailed optical observation for positioning small weld spots.

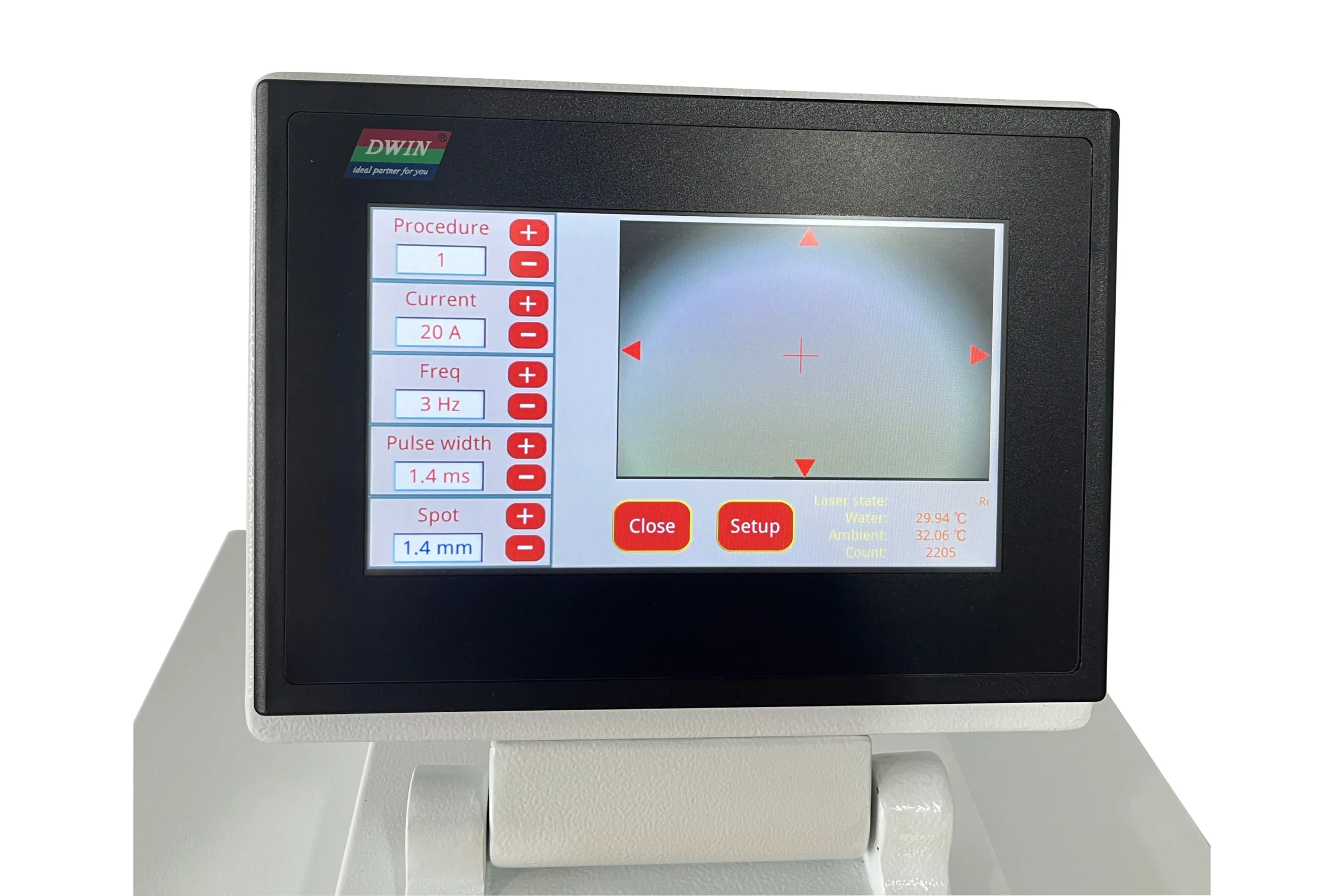

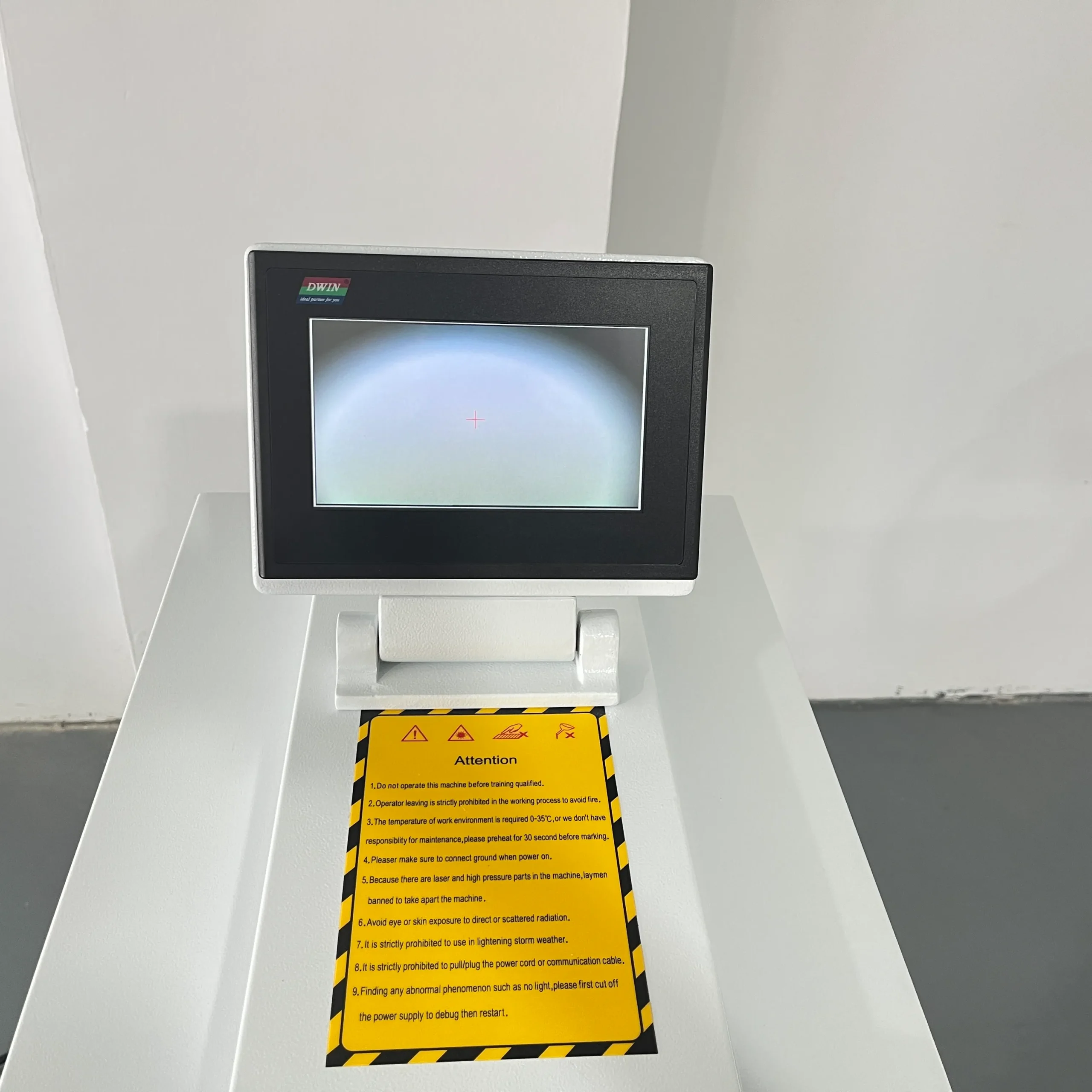

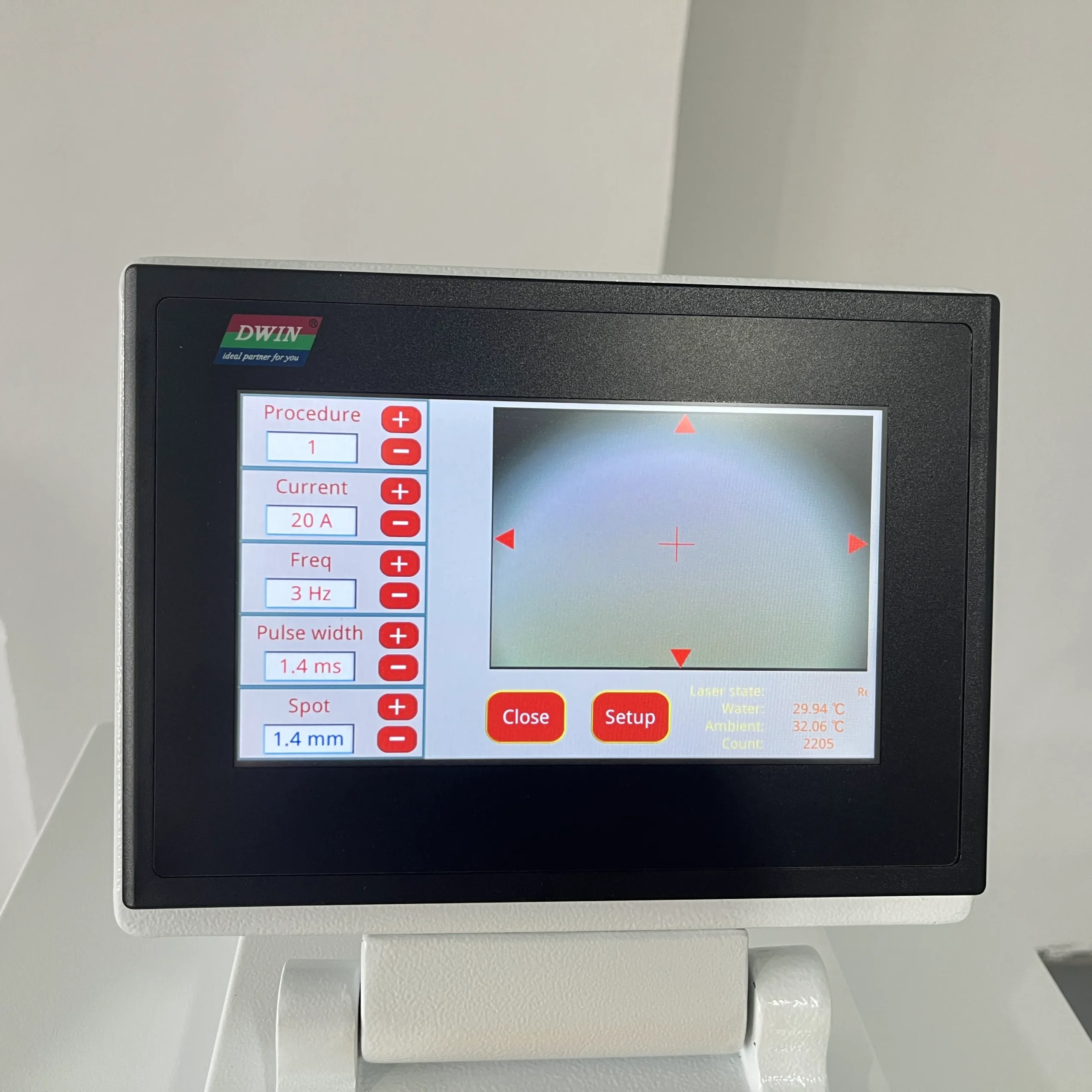

720P CCD & 7-Inch Display — Real-time digital viewing with crosshair alignment.
Adjustable Laser Parameters — 0.4–3.0mm spot size, 0.1–15ms pulse width and 1–50Hz frequency.
Flexible Argon Nozzle — Directs shielding gas toward the weld area to help reduce oxidation.
Typical Jewelry & Precision Welding Applications
| Application | Description |
|---|---|
| Jewelry Repair & Manufacturing | Ring resizing, chain repair, prong rebuilding and porosity filling on compatible gold, silver and platinum alloys. |
| Watchmaking & Eyewear | Small metal component repairs, frame hinges and selected precision joints. |
| Dental Laboratory Work | Repair of suitable titanium and cobalt-chrome prosthetic frameworks, subject to applicable requirements. |
| Micro-Industrial Components | Localized welding of small stainless steel, brass and compatible alloy parts. |
Material compatibility and weld quality depend on alloy composition, component geometry and welding parameters. Sample testing is recommended.
