Description

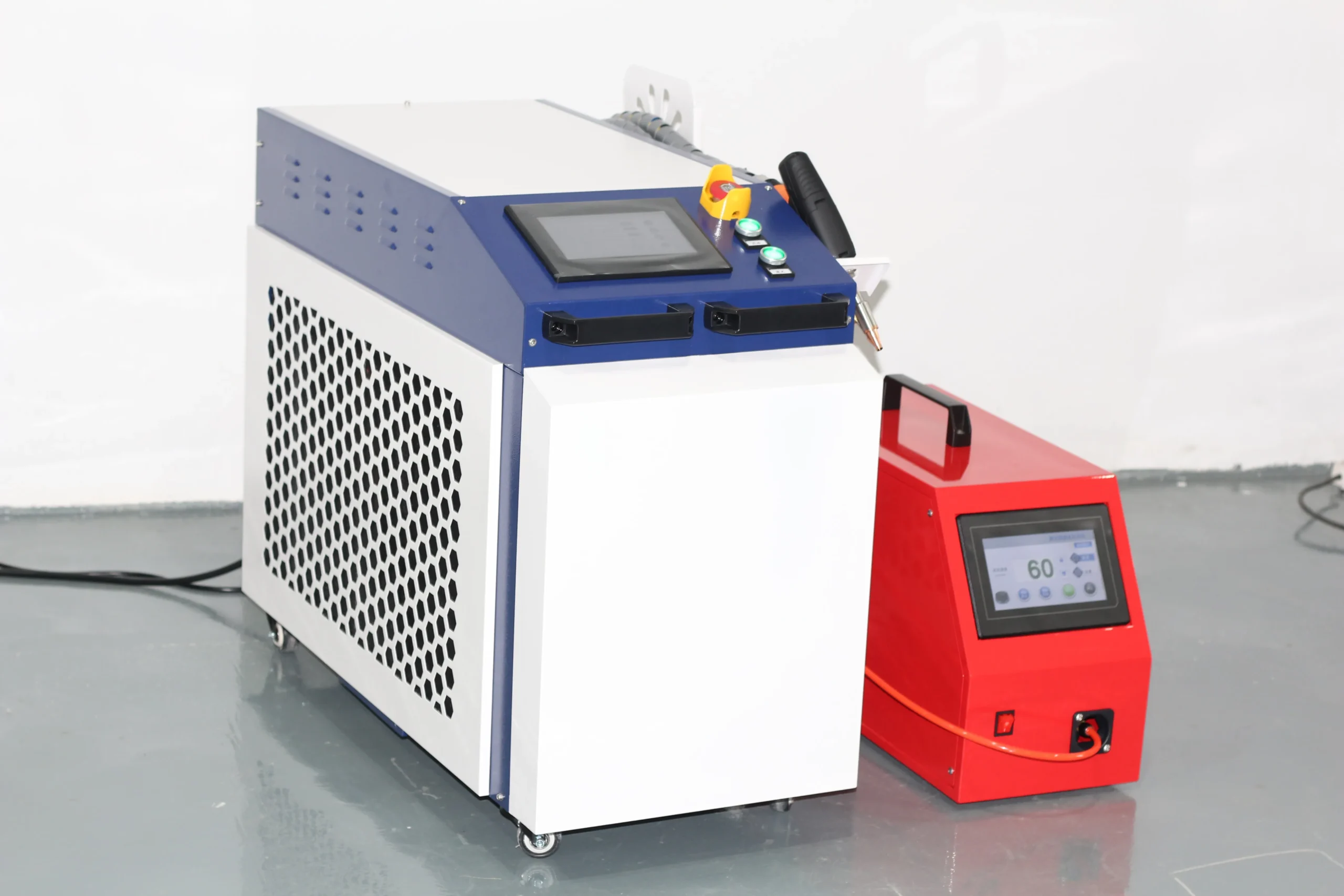

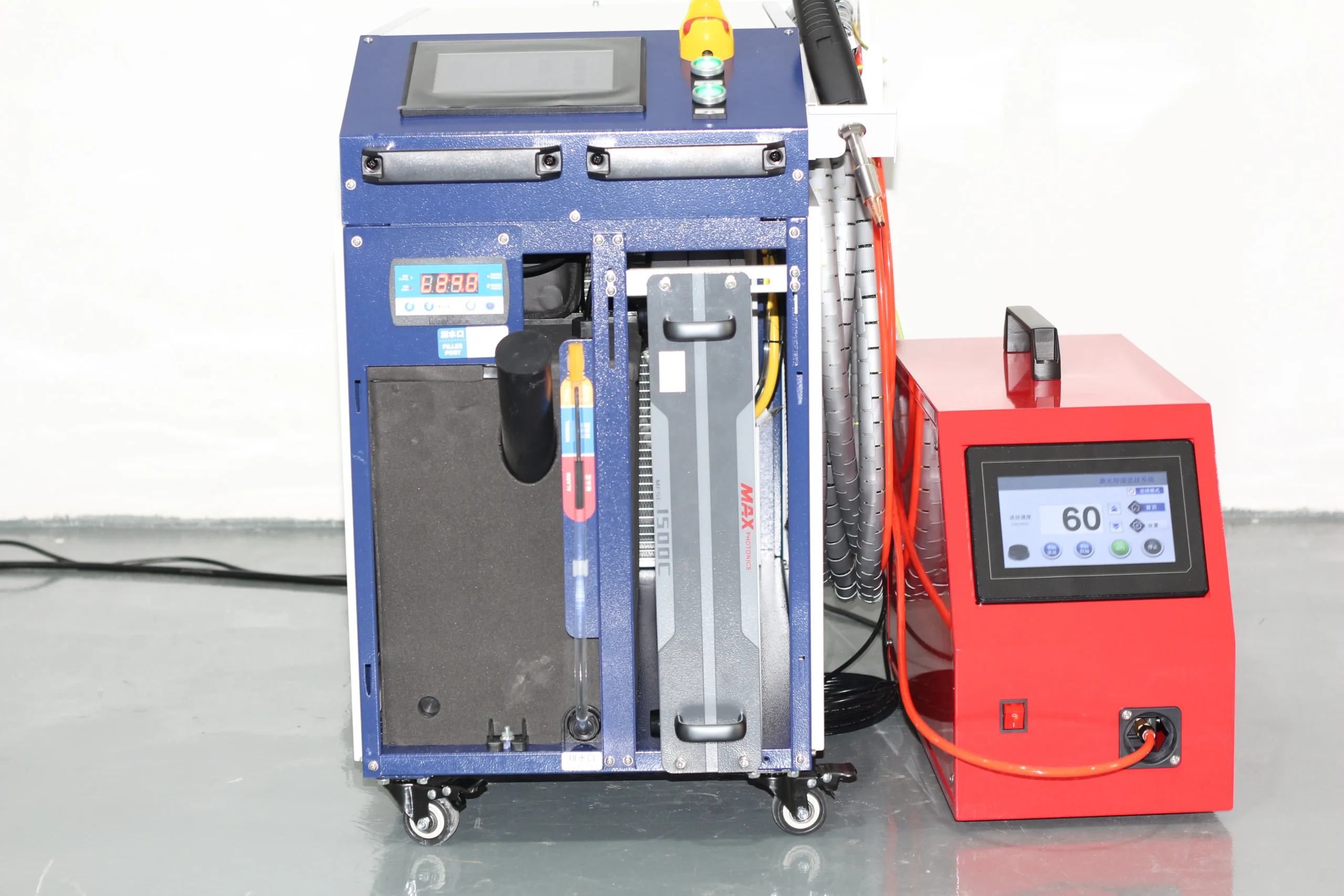

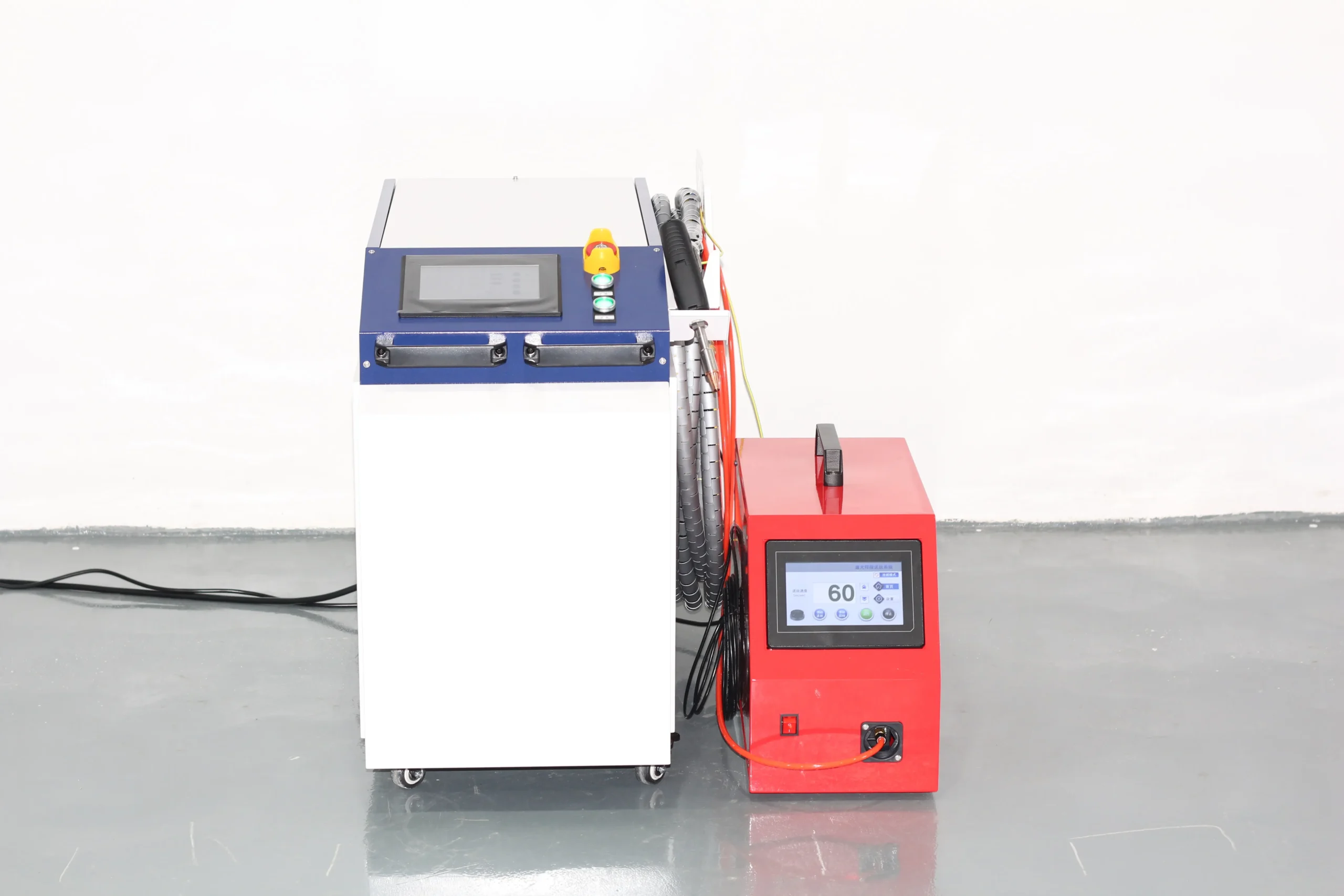

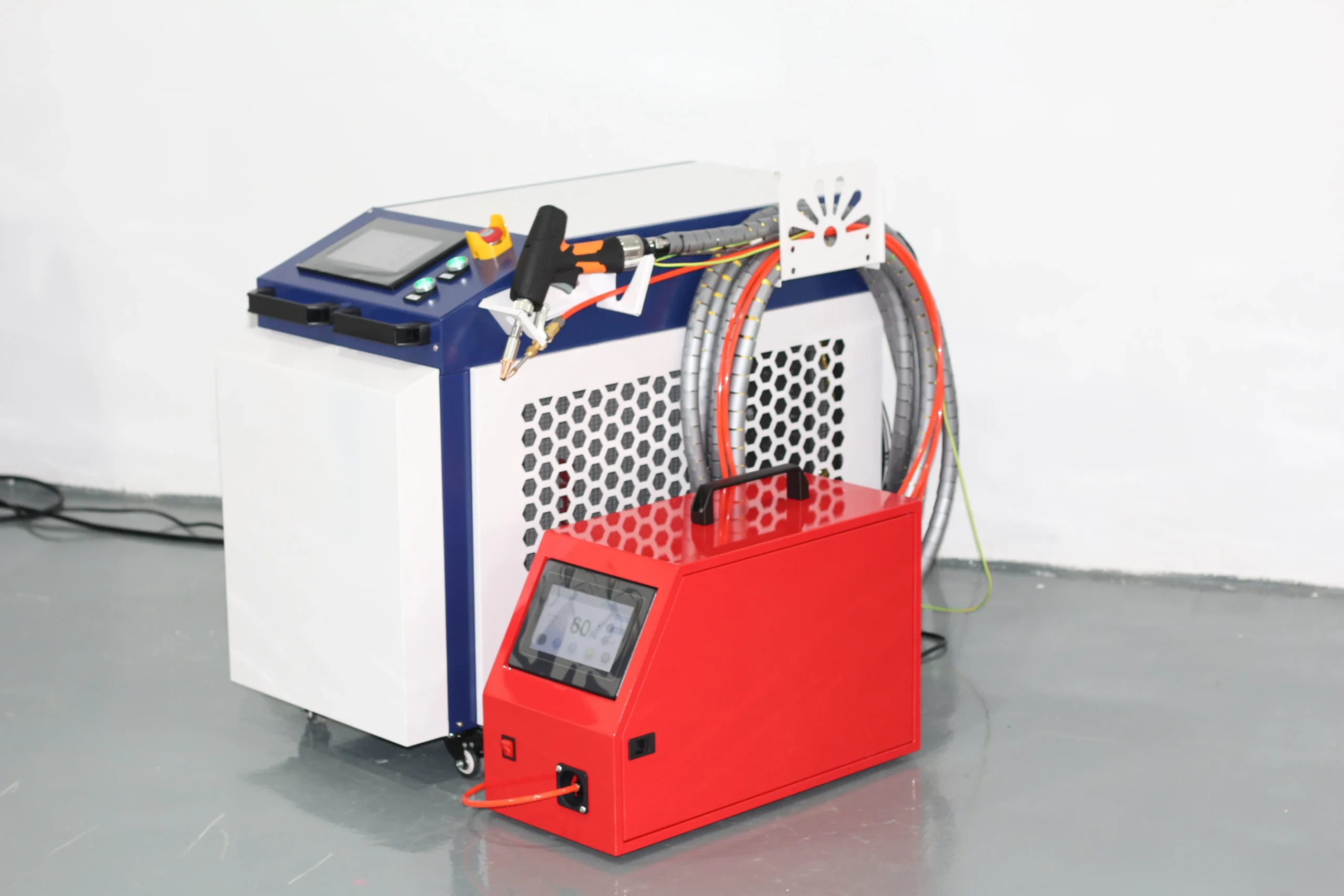

The ONS-H1500W is a robust, water-cooled handheld fiber laser welding machine engineered for industrial precision. Utilizing a MAX fiber laser source with a 1064nm wavelength, this system is designed to provide high-quality “line” mode welding across various metal fabrication projects.
Key Features & Industrial Benefits
-
Precision Performance: The system offers a welding distance of F=150mm and a beam divergence of ≤1.5mrad, delivering highly focused and accurate welds.
-
Extended Durability: Built for demanding environments, the ONS-H1500W supports 16 hours of continuous operation with a low noise output of ≤60db.
-
Industrial Power & Reach: It operates on AC220V±10% (50/60Hz) power with a consumption of ≤5.5KW and utilizes a 10M fiber optical transmission system to ensure flexibility on the factory floor.
-
Environmental Reliability: The machine functions reliably in working temperatures between 55°F(13°C) and 104°F(40°C) with a humidity tolerance of 5%–75%.
Technical Parameter
| Feature | Signification |
| Machine model | ONS-H1500W |
| Max laser power | 1500W |
| Laser type | Fiber laser source |
| Source brand | MAX |
| Laser medium | Fiber |
| Laser wavelength | 1064nm |
| Capacity control | 10–100% |
| Laser cleaning frequency | 1-10000KHz |
| Instability of energy | ＜2% |
| Beam Divergence | ≤1.5mrad |
| Welding width | 1-5mm |
| Welding distance | F=150mm |
| Welding mode | line |
| Continue working time | 16hours |
| Noise | ≤60db |
| Transmission system | Fiber optical transmission system (FOTS) |
| Fiber optical length | 10M standard |
| Power Consumption | ≤ 5.5KW |
| Power required | AC220V±10% 50Hz/60HZ |
| Consumable | Protection glass/lense |
| Working temperature | 55°F(13°C)-104°F(40°C) |
| Working Humidity | 5%-75% |
| Oil mist | ≤15mg/m³ |
| Cooling-down method | water |
| Net weight | 90KG |
| Package size and weight | 1060*500*1020mm 125KG |
Why Choose This 1500W Laser Welder
-
Enhanced Stability: The water-cooling method ensures consistent thermal management during long welding sessions.
-
Versatile Operation: With a capacity control range of 10–100% and a welding frequency of 1–10000KHz, users can tailor the welding output to specific material requirements.
-
Robust Build: Weighing 90KG (net), this industrial-grade welder is constructed for stability and longevity, supported by replaceable protection glass/lenses as consumables.
