Description
200W Precision Desktop Jewelry Laser Welding Machine with External CCD
The ONS-F200W is a 200W pulsed Nd laser welding machine designed for jewelry manufacturing, repair, and precision metal joining. With up to 100 J single-pulse energy, adjustable welding parameters, and an enclosed working chamber, it supports detailed welding tasks on suitable precious metals and small metal components.

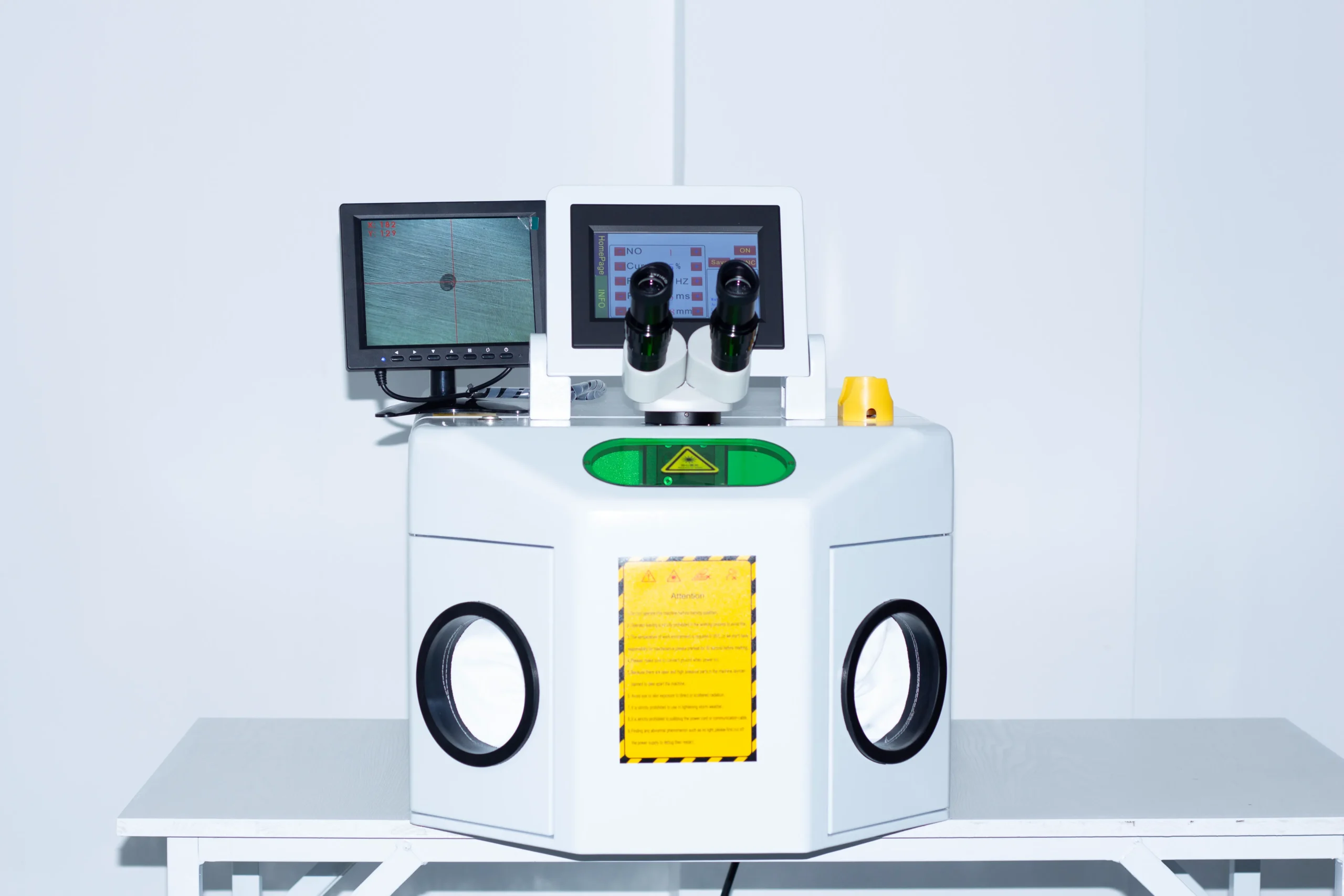

This external CCD version features a dedicated 720P CCD monitor, an 8-inch touchscreen control panel, and a 10× stereo microscope, providing flexible visual observation and precise workpiece positioning.
Integrated water cooling, internal LED illumination, and adjustable argon shielding make the ONS-F200W a practical desktop workstation for jewelry workshops, repair specialists, and precision metalworking applications.
 |
 |
Key Technical Features
200W Pulsed YAG Laser — Delivers up to 100 J single-pulse energy for precision jewelry welding, metal joining, and localized repairs.
External 720P CCD Observation — A dedicated external CCD monitor provides real-time viewing of the welding area, complementing the main control display.
10× Stereo Microscope — Provides magnified optical observation for accurate positioning of small jewelry components and delicate weld joints.
Adjustable Welding Parameters — Energy adjustment from 1–100%, pulse width from 0.1–15 ms, frequency from 1–20 Hz, and spot diameter from 0.3–2.5 mm allow parameter selection for different welding requirements.

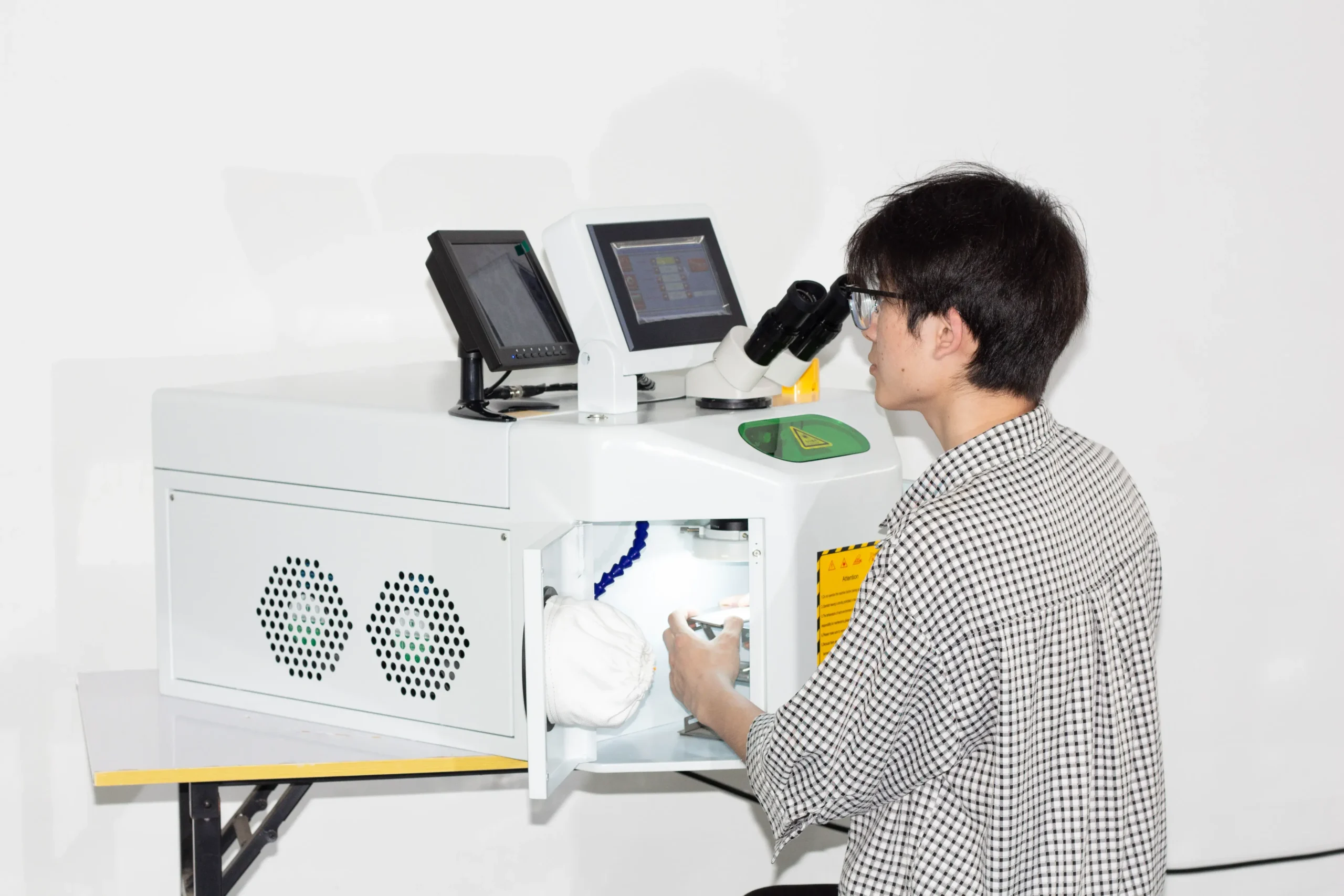

Enclosed Welding Chamber — Flexible arm-access sleeves, internal LED lighting, and a 360° adjustable argon nozzle support controlled manual welding operations.
Integrated Water Cooling — Built-in water cooling helps regulate operating temperatures during extended welding sessions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Model | ONS-F200W |
| Laser Type | Pulsed Nd:YAG Laser |
| Rated Output Power | 200 W |
| Maximum Single-Pulse Energy | 100 J |
| Laser Wavelength | 1064 nm |
| Welding Spot Diameter | 0.3–2.5 mm |
| Energy Adjustment | 1–100% |
| Pulse Width | 0.1–15 ms |
| Pulse Frequency | 1–20 Hz |
| Working Focal Length | F = 110 mm |
| CCD Camera | External 720P CCD (Standard) |
| External CCD Monitor | Dedicated External Display |
| Main Control Display | 8-inch Touchscreen with Crosshair |
| Observation System | 10× Stereo Microscope |
| Welding Chamber | Enclosed Chamber with Flexible Arm Sleeves |
| Shielding Gas | 360° Adjustable Argon Nozzle |
| Cooling System | Integrated Water Cooling |
| Rated Input Power | 3 kW |
| Power Supply | AC 220 V, 50/60 Hz |
| Power Plug | EU / US / UK (Customizable) |
| Interface Languages | Chinese / English / Korean / Russian (Customizable) |
| Package Dimensions | 940 × 580 × 730 mm |
| Package Weight | 85 kg |
Main Components & Workstation Design

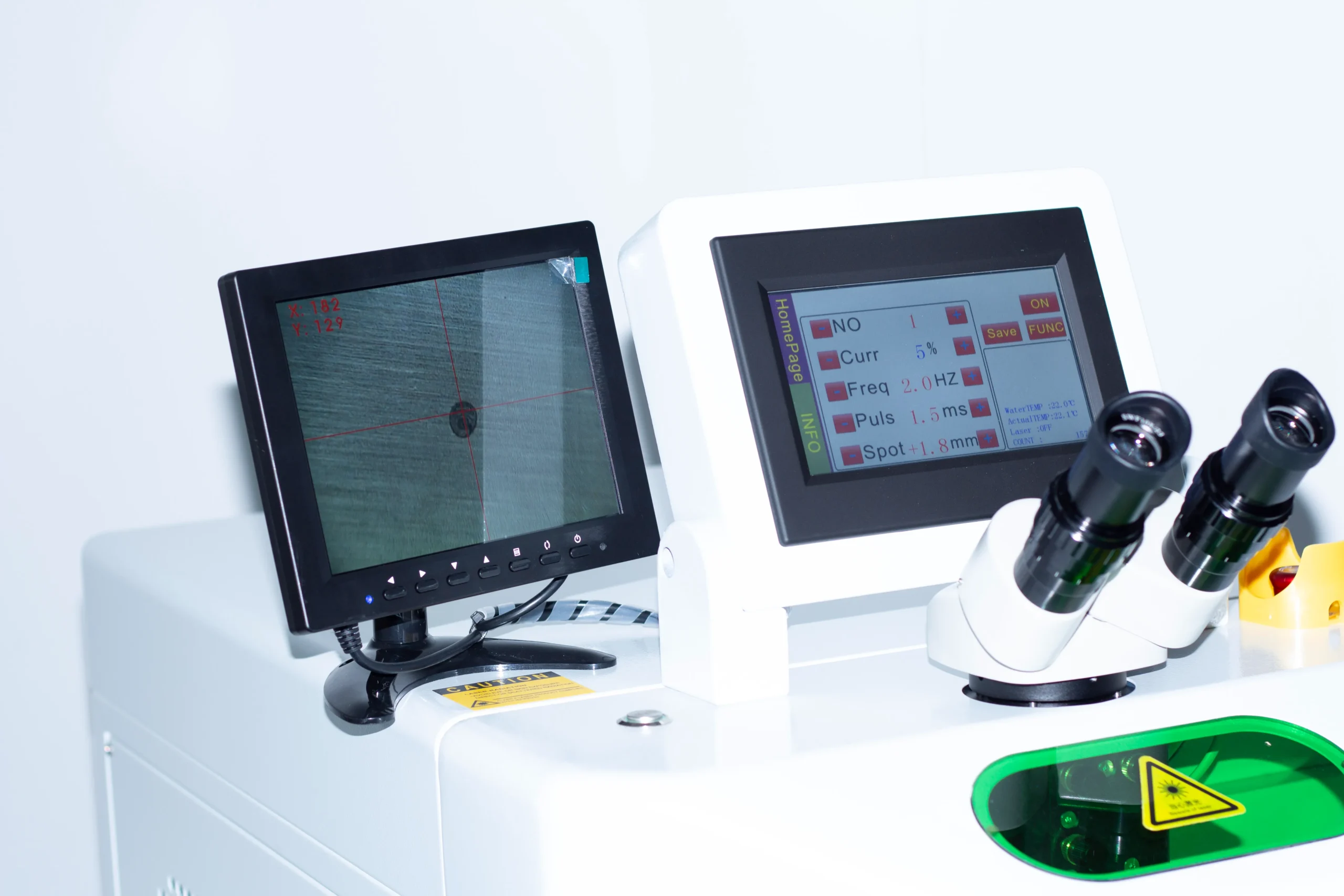

External CCD Monitoring System — A dedicated external display provides live viewing of the welding area, allowing operators to monitor workpiece positioning independently of the main control screen.

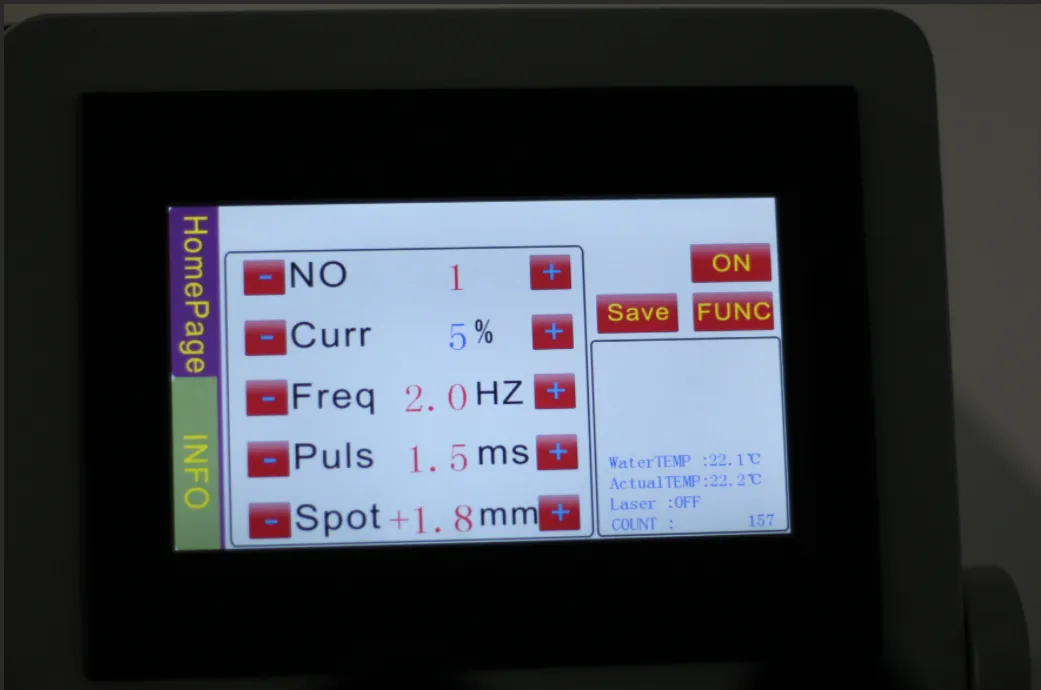

8-Inch Touchscreen Control Panel — Displays welding parameters and crosshair guidance, supporting convenient adjustment of energy, pulse width, frequency, and spot diameter.
10× Stereo Microscope — Offers direct magnified observation for accurate alignment during jewelry repair and micro-welding tasks.
Enclosed Welding Chamber — Features flexible arm-access sleeves, internal LED illumination, and an adjustable argon shielding nozzle for detailed manual welding.

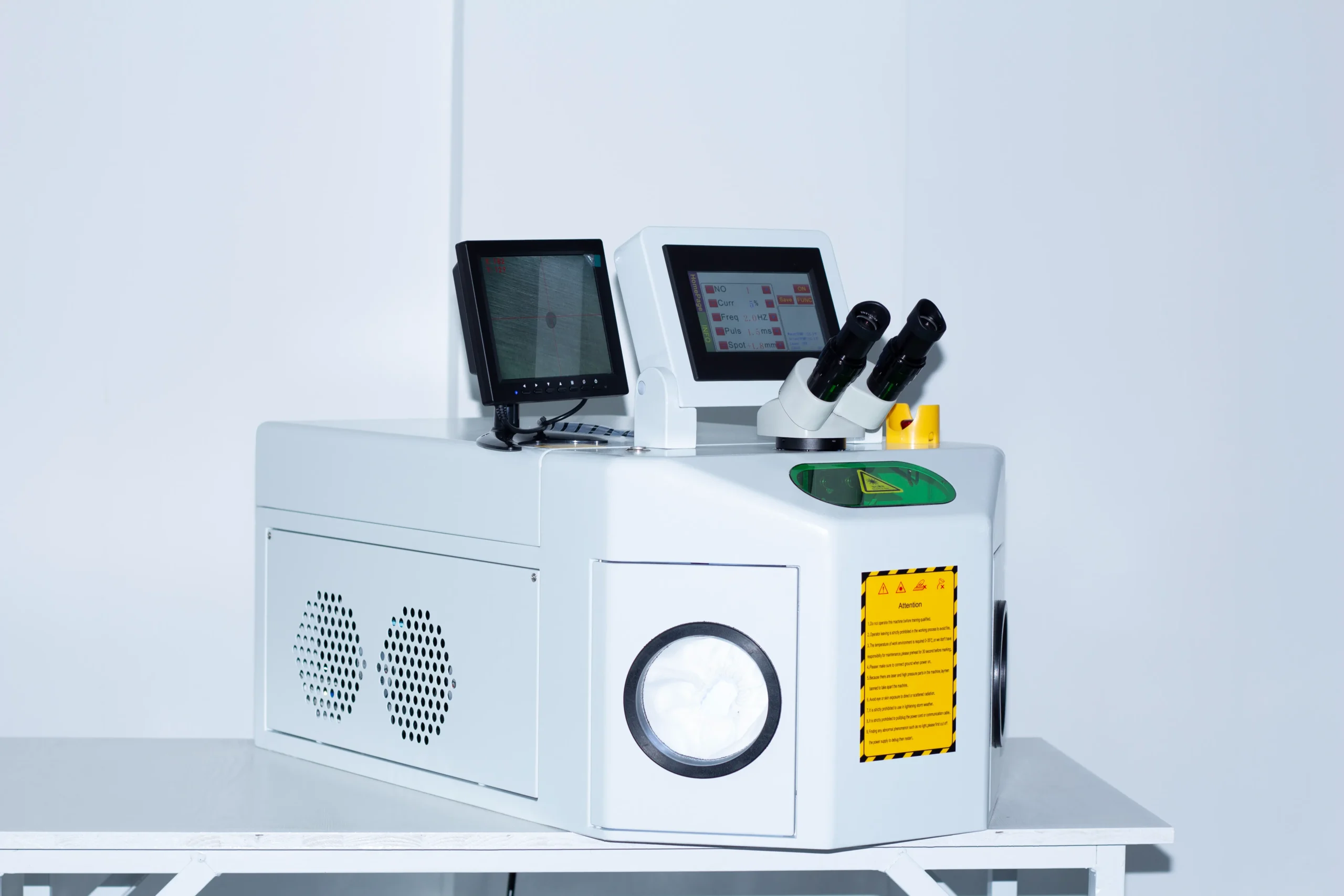

Cooling & Ventilation System — Integrated water cooling and dual side-panel ventilation grilles support heat management during operation.
Safety & Utility Controls — Includes a guarded emergency-stop switch, key switch, dedicated water-addition control, and rear connections for shielding gas, footswitch, and cooling-water lines.
Typical Applications & Materials
| Application | Materials & Typical Welding Tasks |
|---|---|
| Jewelry Repair & Custom Manufacturing | Yellow, white and rose K-gold, 925 silver, platinum, titanium and stainless steel. Ring resizing, chain rejoining, prong rebuilding, seam joining and defect filling. |
| Eyewear & Fashion Accessories | Compatible titanium alloys, stainless steel, Monel and brass. Eyeglass hinge repairs, bridge reinforcement and precision joining of small metallic accessories. |
| Dental & Precision Metal Components | Selected titanium, cobalt-chrome and nickel-chrome alloys. Precision welding of dental frameworks, crowns and small metal components, subject to application-specific requirements and validation. |
| Micro-Industrial Components | Stainless steel, copper, brass and selected specialty alloys. Electronic housing repairs, sensor enclosure joining and small precision hardware or mold repairs. |
