Description

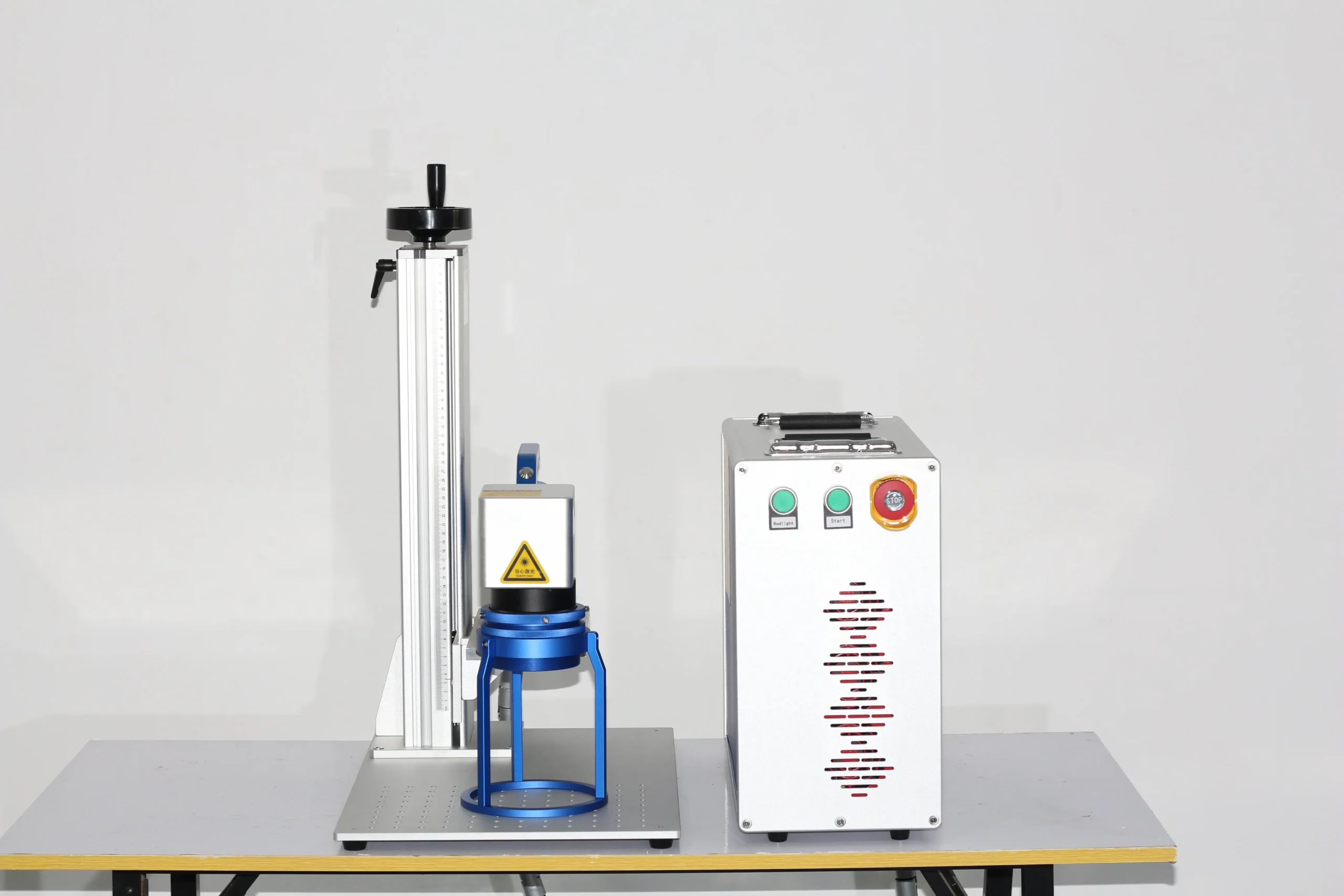

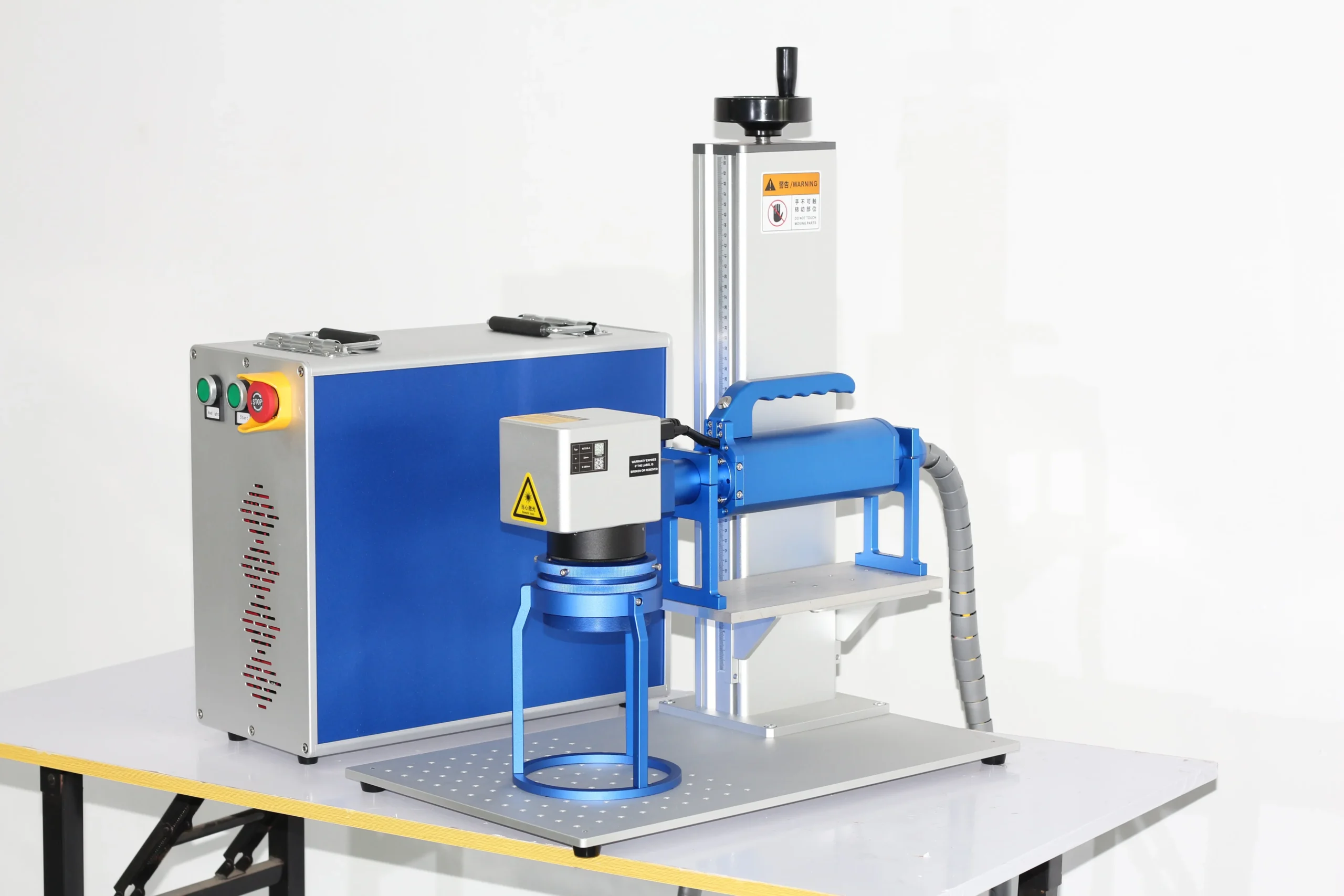

01. ONS-F50W 50W Fiber Laser Marking Machine
The ONS-F50W combines a 50W MAX fiber laser source with a detachable marking head, providing flexible solutions for permanent metal identification, precision engraving and industrial traceability.
Designed for both desktop and handheld operation, the machine allows operators to mark small components on an adjustable workstation or handle larger, heavier and difficult-to-move workpieces directly on site.
For applications requiring advanced pulse control and decorative metal marking, compatible MOPA configurations can provide additional marking possibilities, including selected color effects on stainless steel and titanium. Color marking capability must be confirmed according to the installed laser source and material.
 |
 |
02. Key Features & Industrial Benefits

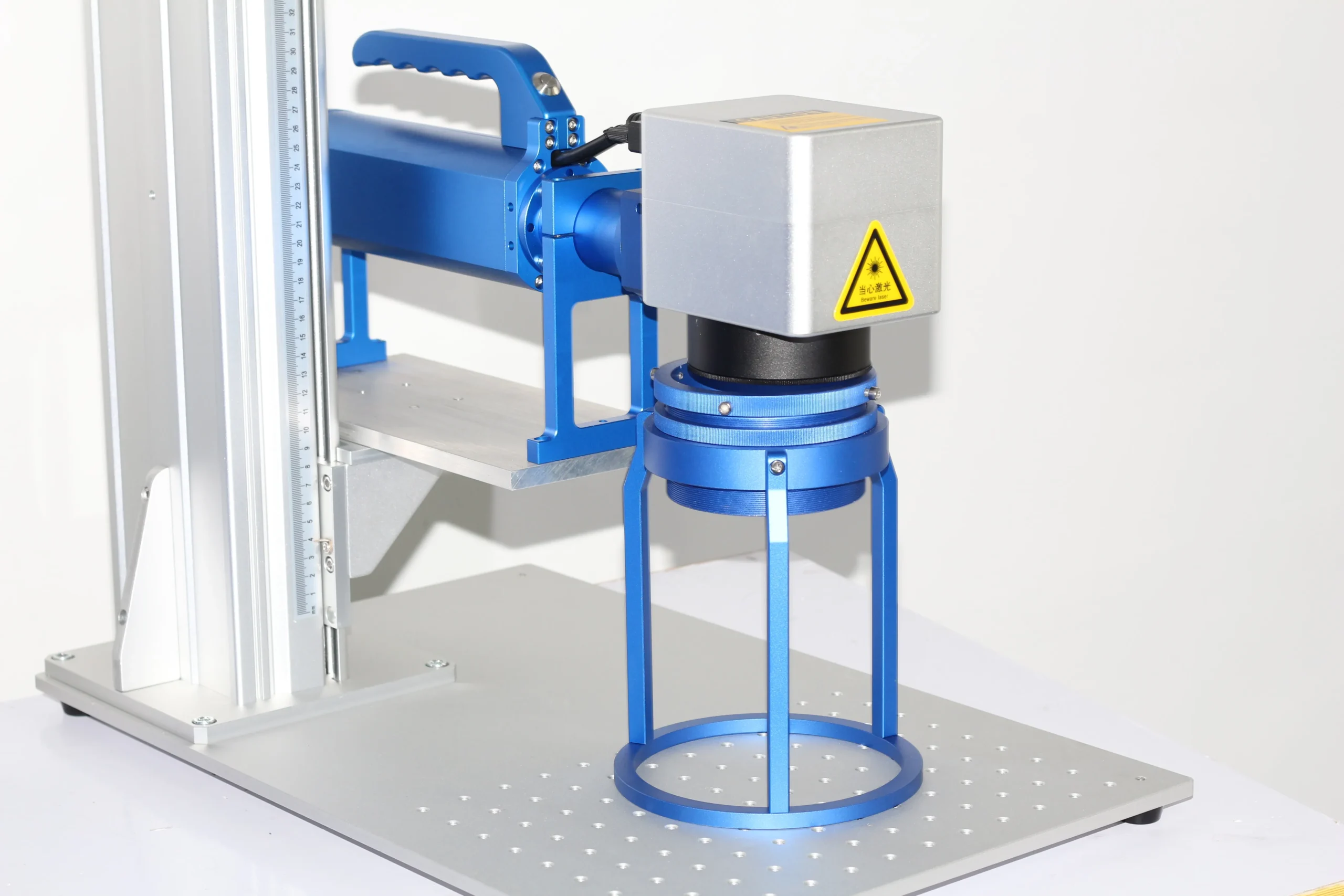

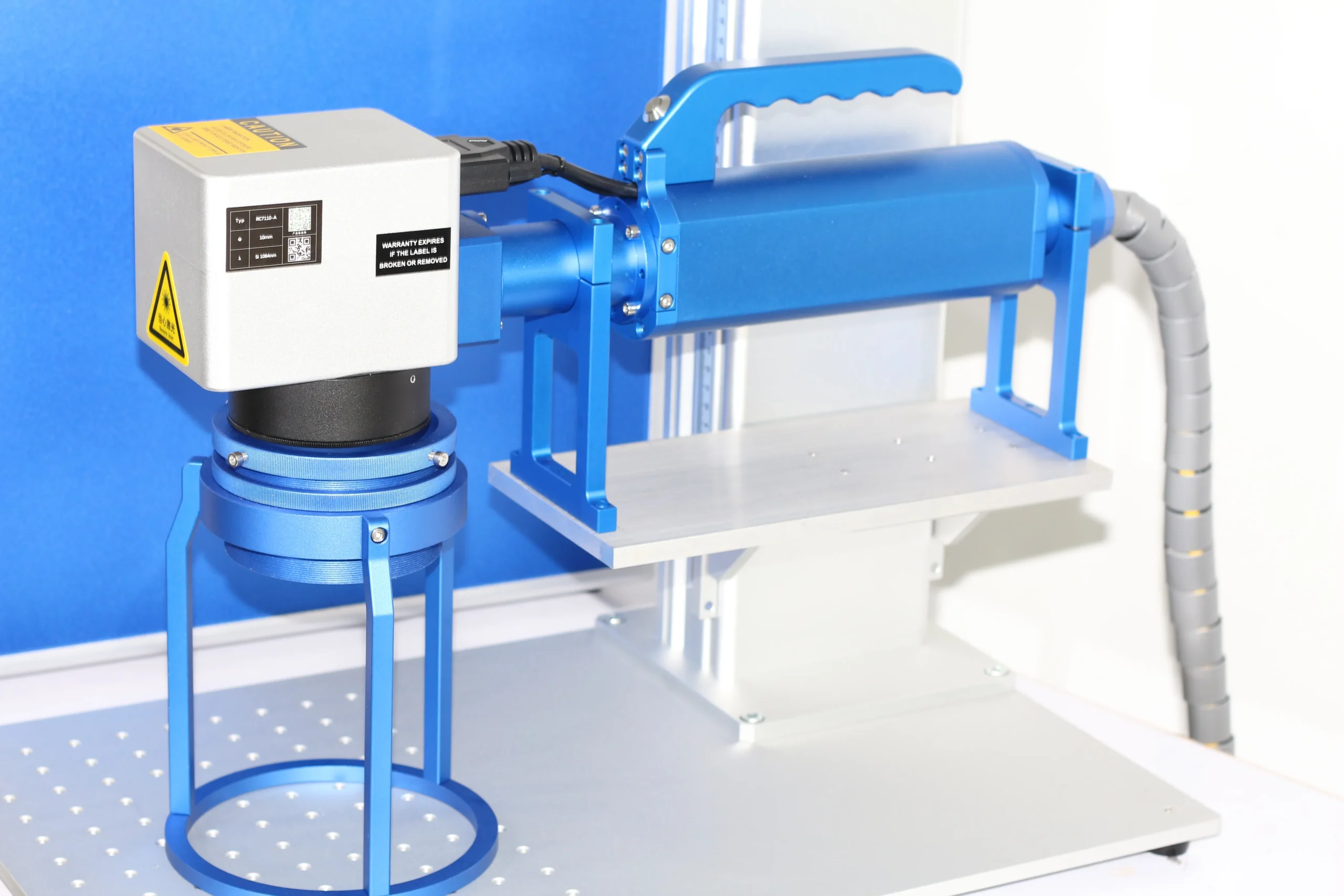

Desktop & Handheld Dual-Mode Operation — Use the adjustable desktop workstation for smaller components or detach the marking head to process larger and difficult-to-move workpieces. This flexibility helps accommodate different part sizes and production environments.
50W MAX Fiber Laser Source — The 1064 nm pulsed fiber laser supports permanent identification, serial numbers, barcodes, logos and selected engraving applications on compatible metals.
Precision Galvo Scanning System — A high-speed X/Y galvanometer scanner and F = 160 mm field lens provide precise beam positioning for detailed marking tasks.

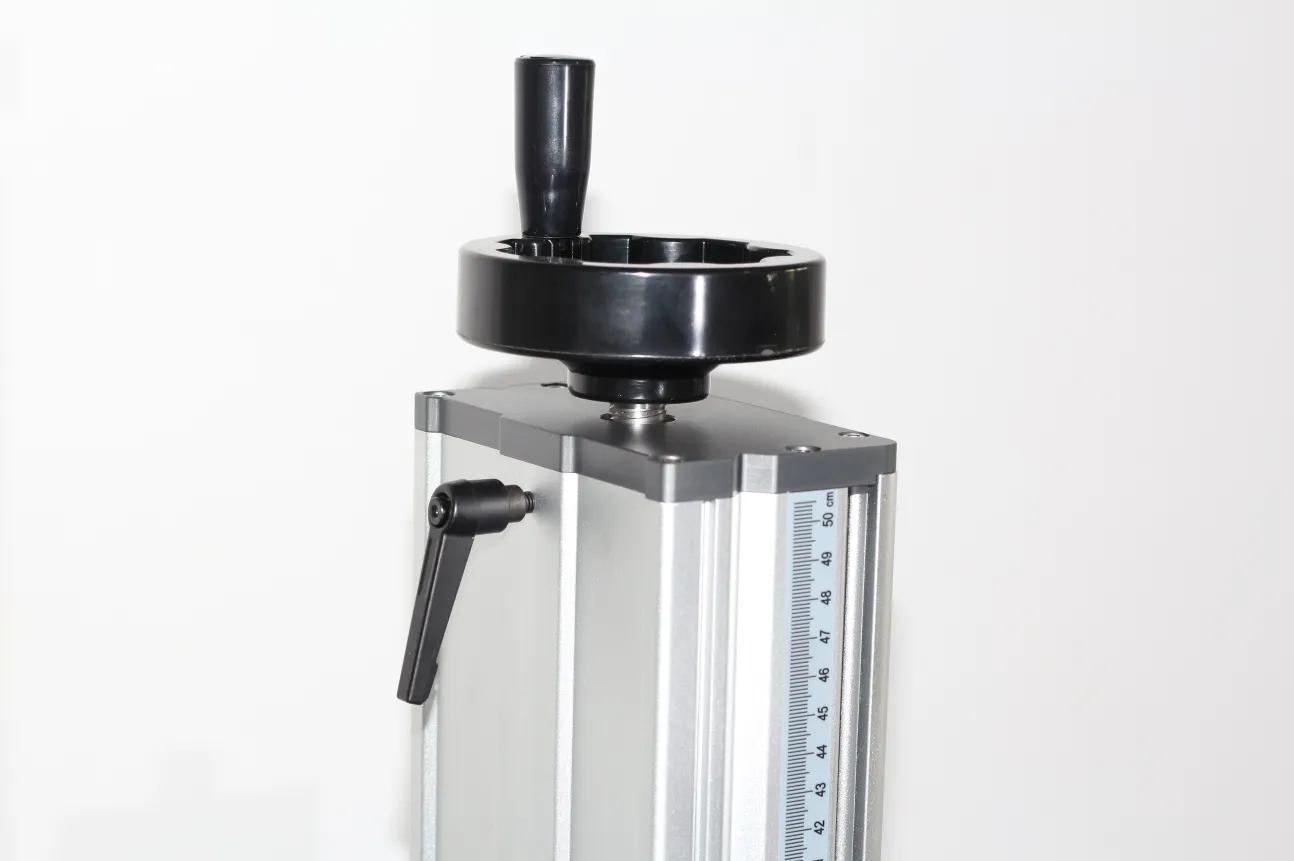

Adjustable Marking Workstation — The manual Z-axis lifting column with a millimeter scale allows convenient focal-position adjustment for workpieces of different heights.

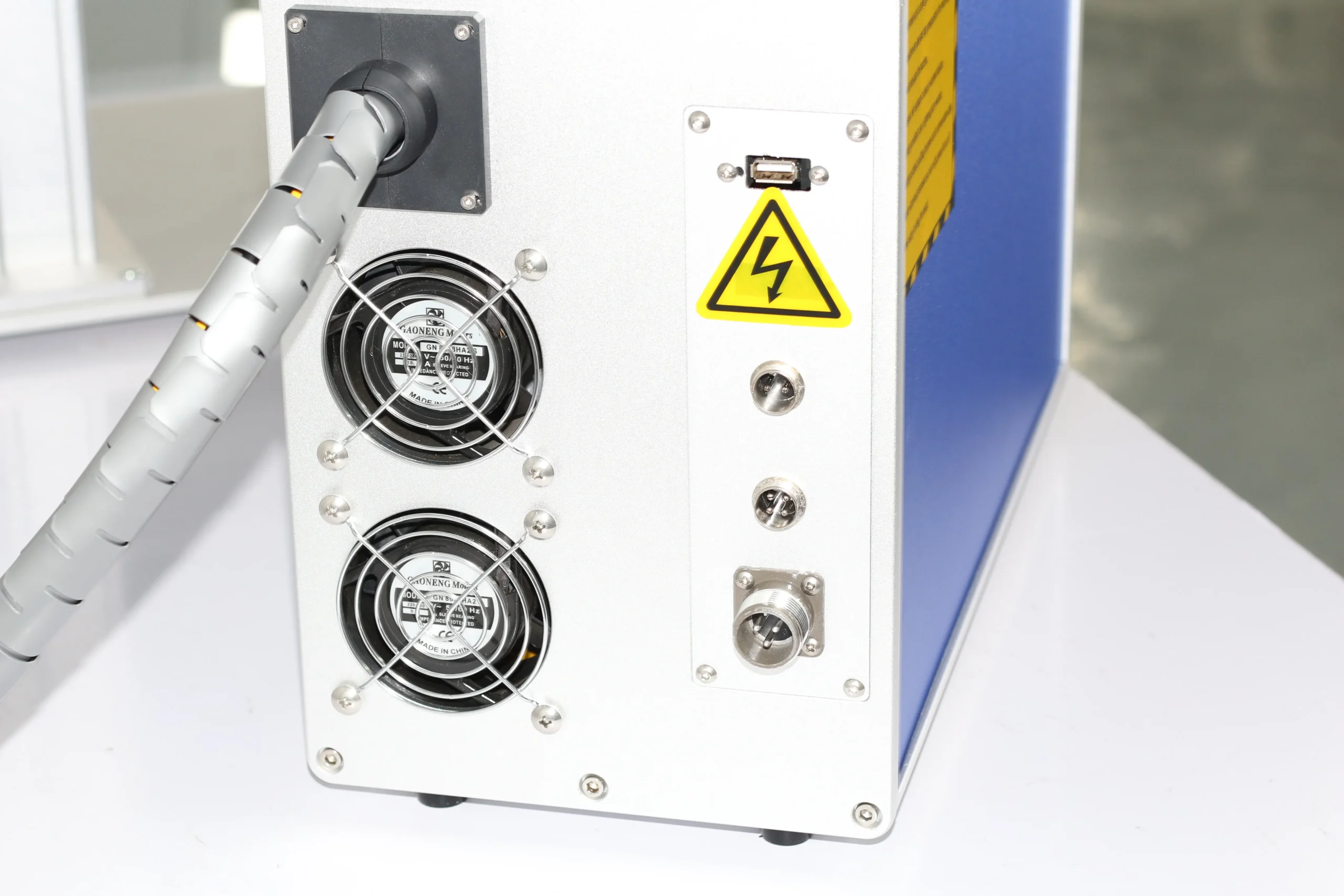

Compact Air-Cooled Design — The air-cooled laser system eliminates the need for an external water chiller, simplifying installation and routine operation.
 |
 |
 |
 |
03. Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Model | ONS-F50W |
| Laser Power | 50 W |
| Laser Type | Pulsed Fiber Laser |
| Laser Source Brand | MAX |
| Laser Wavelength | 1064 nm |
| Single Pulse Energy | 1.5 mJ |
| Laser Frequency | 1–4000 kHz* |
| Pulse Width | 2–500 ns* |
| Energy Instability | <2% |
| Beam Divergence | ≤8 mrad |
| Maximum Marking Speed | 12,000 mm/min |
| Standard Marking Area | 110 × 110 mm |
| Focal Length | F = 160 mm |
| Operation Modes | Desktop / Handheld |
| Standard Fiber Length | 3 m |
| Cooling Method | Air Cooling |
| Power Consumption | ≤0.5 kW |
| Power Supply | AC 220V ±10%, 50Hz |
| Operating Temperature | 13–40°C |
| Operating Humidity | 5–75% |
| Noise Level | ≤60 dB |
| Machine Dimensions | 650 × 700 × 660 mm |
| Machine Weight | 50 kg |
| Package Dimensions | 750 × 460 × 830 mm |
| Package Weight | 58 kg |
*Laser frequency and pulse width ranges are based on the supplied specifications. Available adjustment ranges and MOPA capability should be verified against the exact installed laser source model.
04. Why Choose the ONS-F50W?
05. Typical Industrial Marking Applications
| Application | Typical Marking Tasks |
|---|---|
| Machinery & Metal Parts | Permanent serial numbers, identification codes and logos on suitable steel components, tools and machine parts. |
| Automotive Components | Part numbers, production codes and traceability markings on compatible metal housings and automotive components. |
| Tools & Molds | Permanent identification and selected engraving applications on tool steel, molds and industrial tooling. |
| Electronics & Enclosures | Product identification, QR codes and logos on anodized aluminum and compatible engineering plastics. |
| Jewelry & Metal Accessories | Fine lettering, personalized designs and logos on suitable precious metals, watch components and metal accessories. |
| Stainless Steel & Titanium Color Marking | Selected decorative color effects for jewelry, watch components, premium metal gifts and accessories when equipped with a compatible MOPA laser source. |
Marking contrast, engraving depth and color effects depend on the material, surface finish, installed laser source and processing parameters. Sample testing is recommended for specialized applications.
