Description

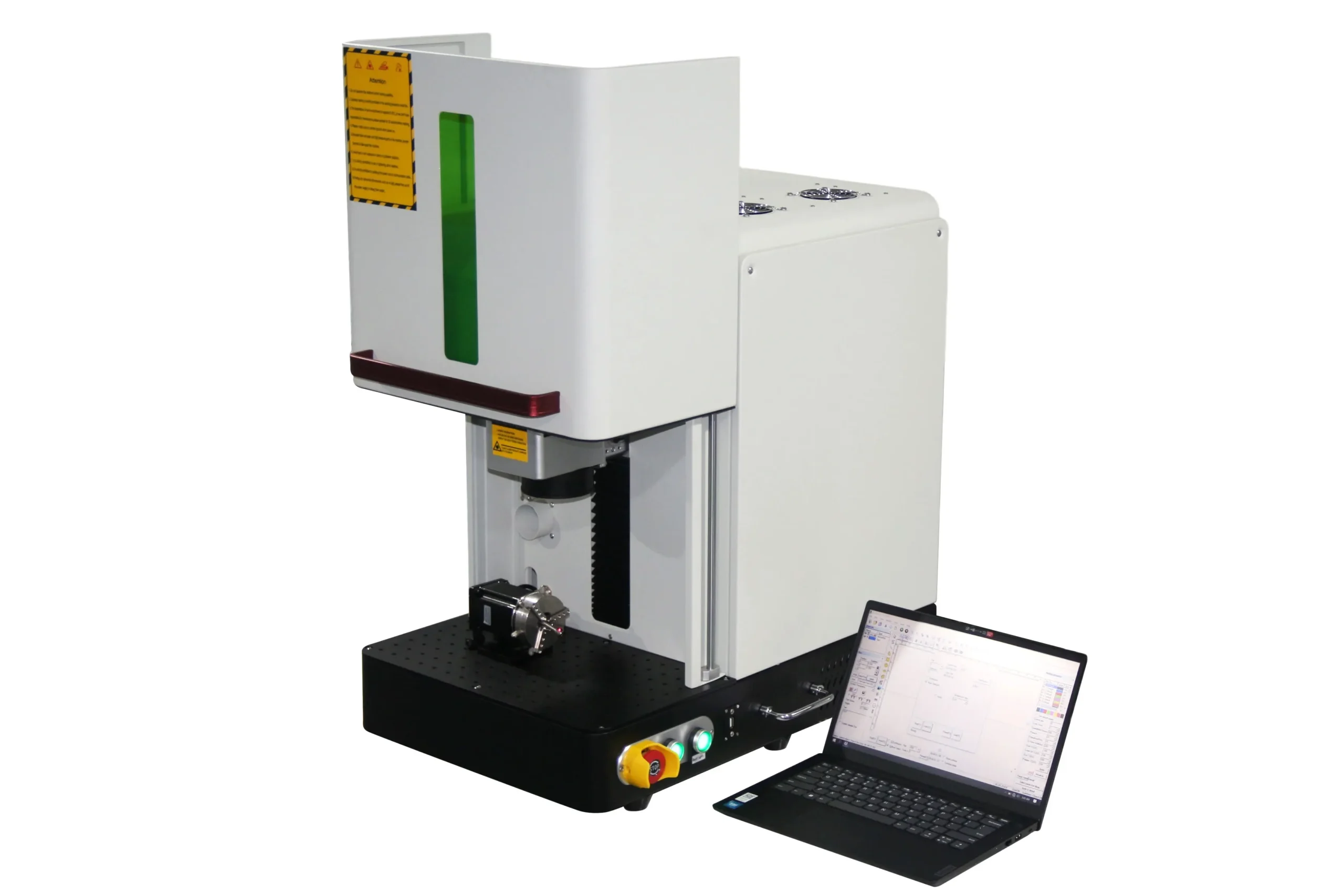

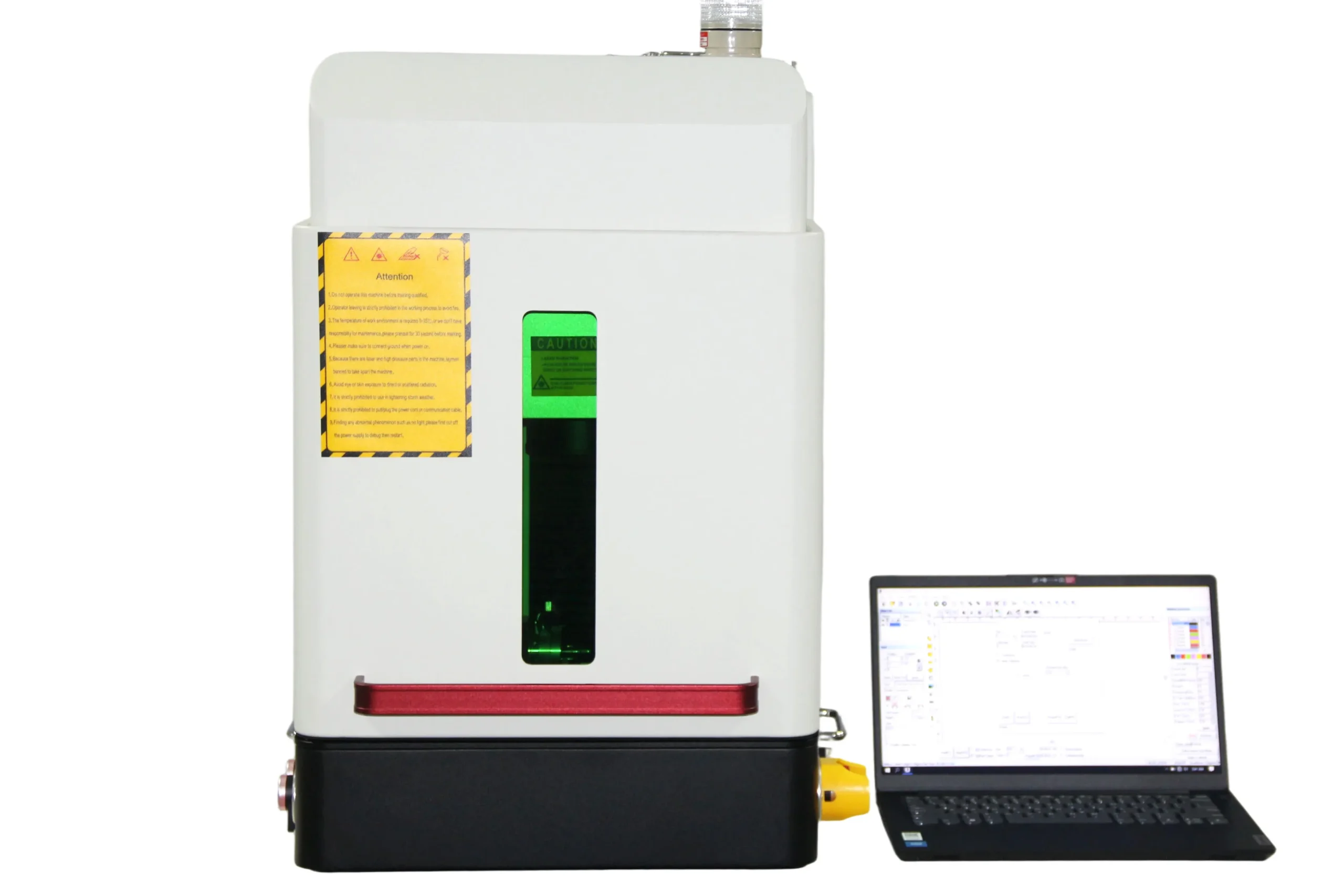

Next-Generation Precision: ONS-F100W MOPA Enclosed Series
The HS-F100W represents the pinnacle of compact fiber laser technology. By integrating a professional JPT MOPA source, this 100W machine goes beyond standard marking—it offers adjustable pulse widths from 2ns to 500ns. This capability is essential for delicate tasks like high-contrast marking on plastics, color marking on stainless steel, and damage-free cleaning of sensitive surfaces.
The fully enclosed desktop structure provides a secure working environment, effectively containing laser reflections and processing by-products. Despite its massive 100W peak power, the system is optimized for extreme efficiency, maintaining a power consumption of under 0.5KW, making it one of the most cost-effective high-power solutions in the industry.
Technical Specifications
| Feature | Signification |
| Machine model | ONS-F100W |
| Max laser power | 100W |
| Laser type | Fiber laser source |
| Source brand | JPT MOPA |
| Laser medium | Fiber |
| Laser wavelength | 1064nm |
| Laser welding frequency | 1-4000KHz |
| Pulse width regulation | 2–500ns |
| Single pulse energy | 1.5MJ |
| Instability of energy | ＜2% |
| Beam Divergence | ≤8mrad |
| Minimal beam diameter | 0.001mm |
| Maximum speed | 12000mm/min |
| The marking focal length | F=160mm |
| Scope of marking | 110*110mm |
| Continue working time | 16hours |
| Noise | ≤60db |
| Transmission system | Fiber optical transmission system (FOTS) |
| Fiber optical length | 3M standard |
| Power Consumption | ≤0.5KW |
| Power required | AC220V±10% /50Hz |
| Consumable | Protection glass/lense |
| Working temperature | 55°F(13°C)-104°F(40°C) |
| Working Humidity | 5%-75% |
| Oil mist | ≤15mg/m³ |
| Machine size and weight | 750*560*800mm 65kg |
| Volume and weight | 800*600*930mm 93KG |

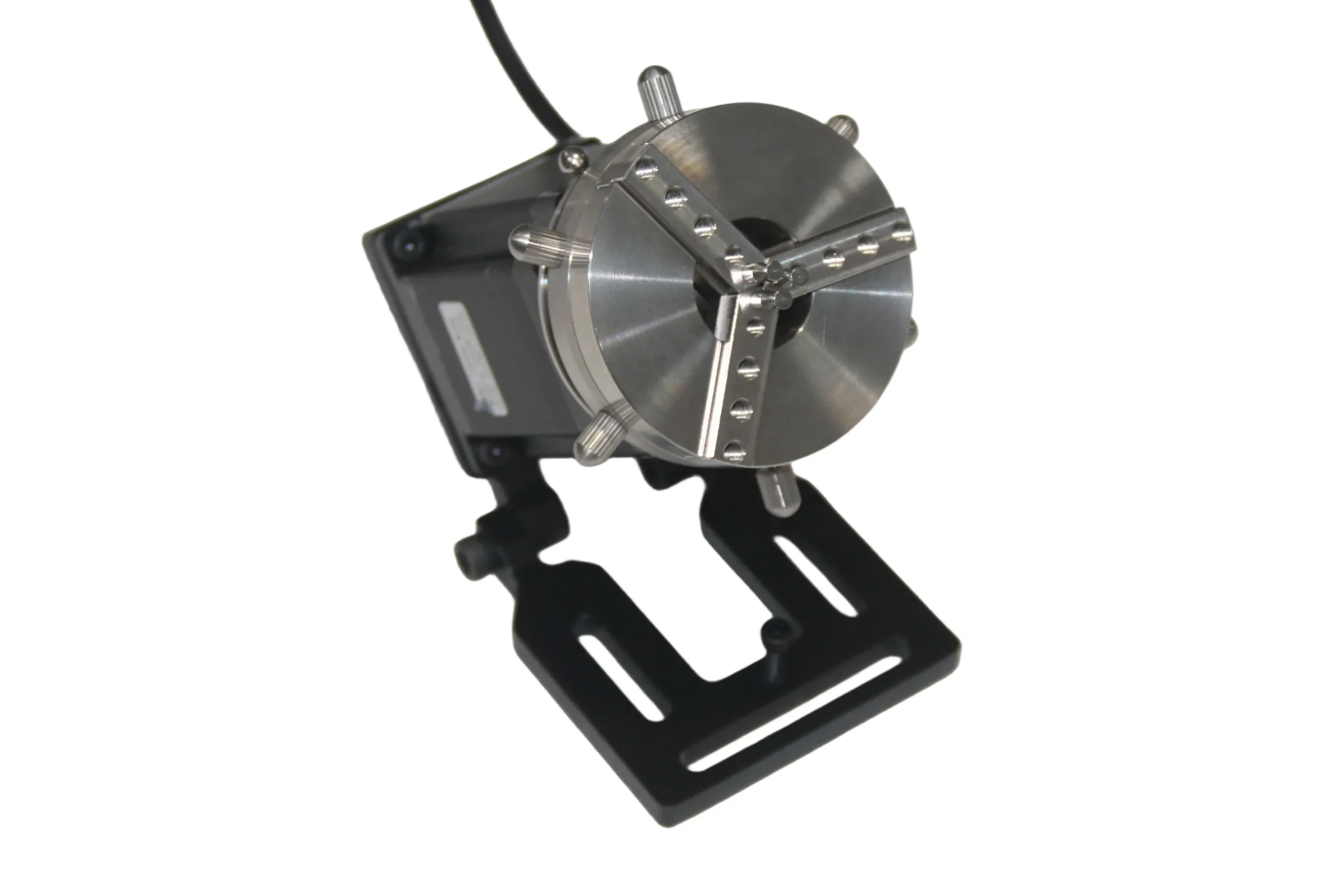

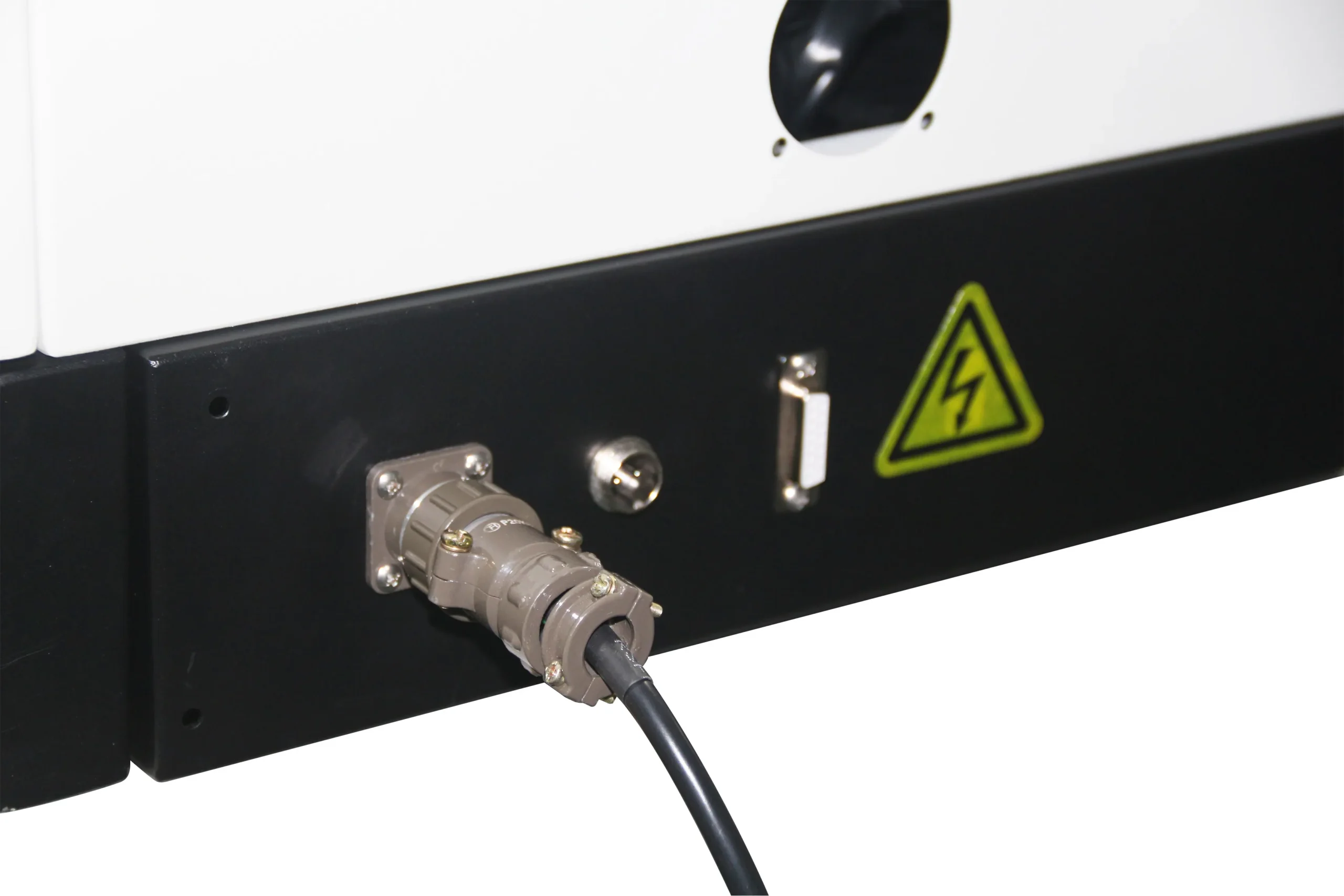

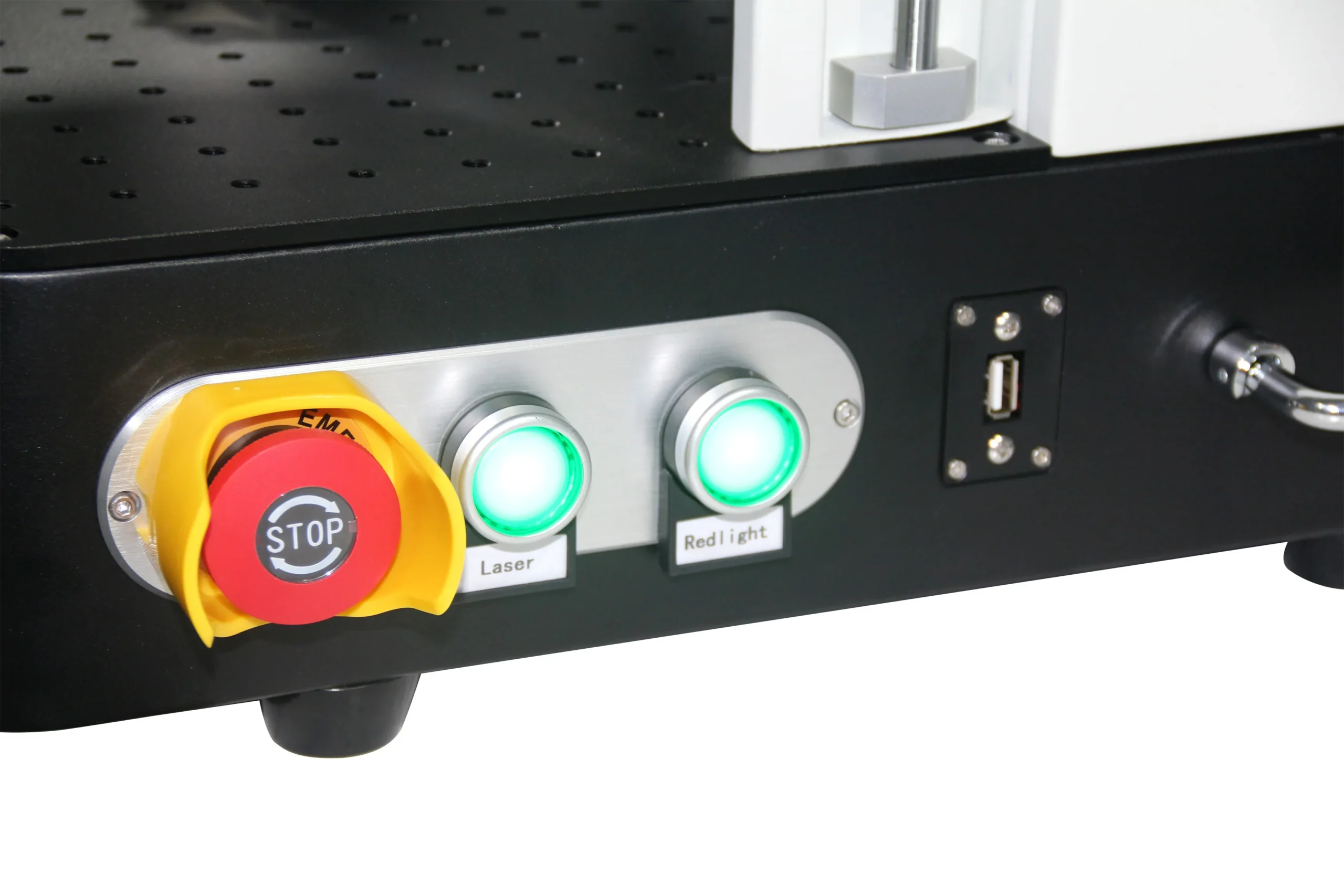

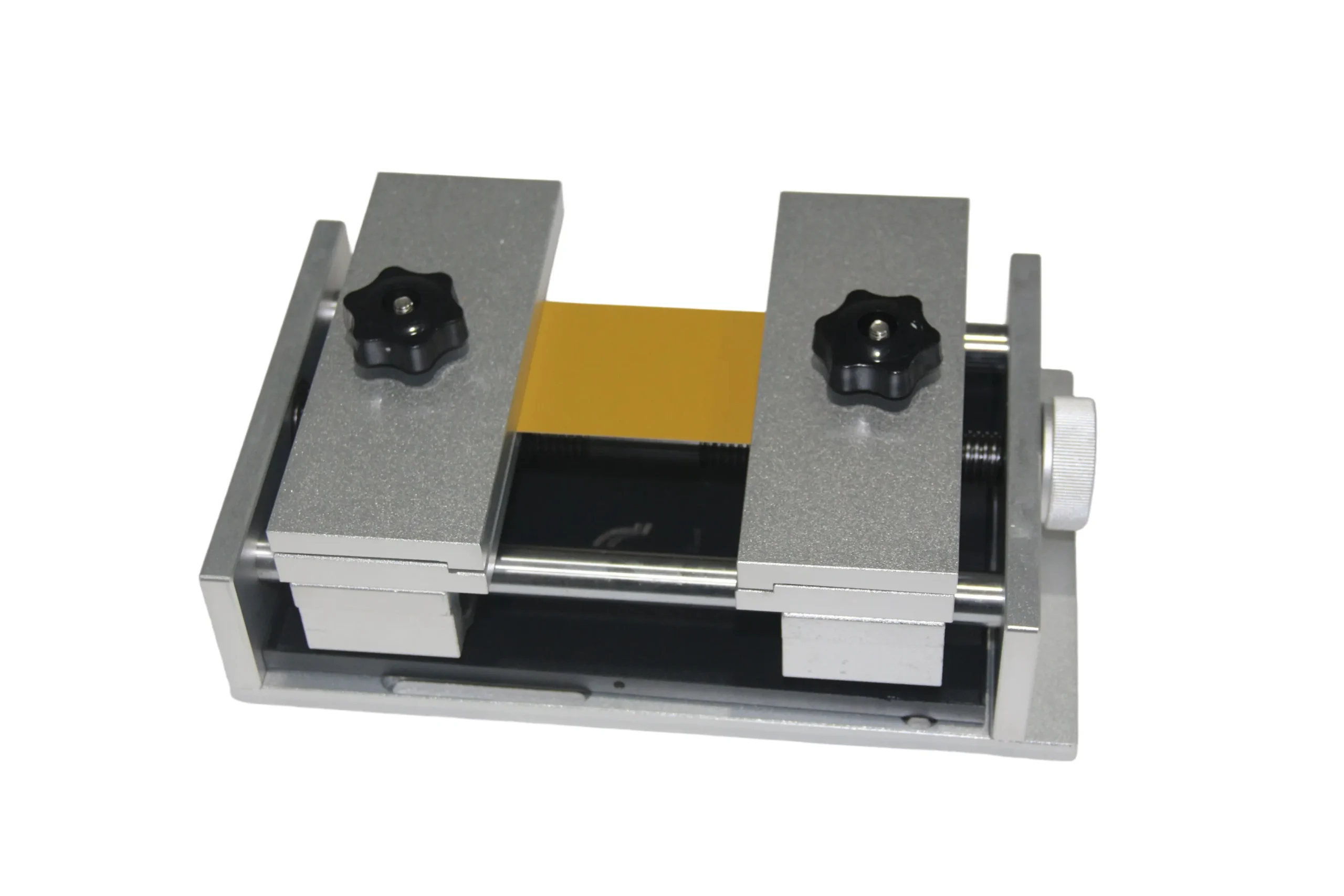

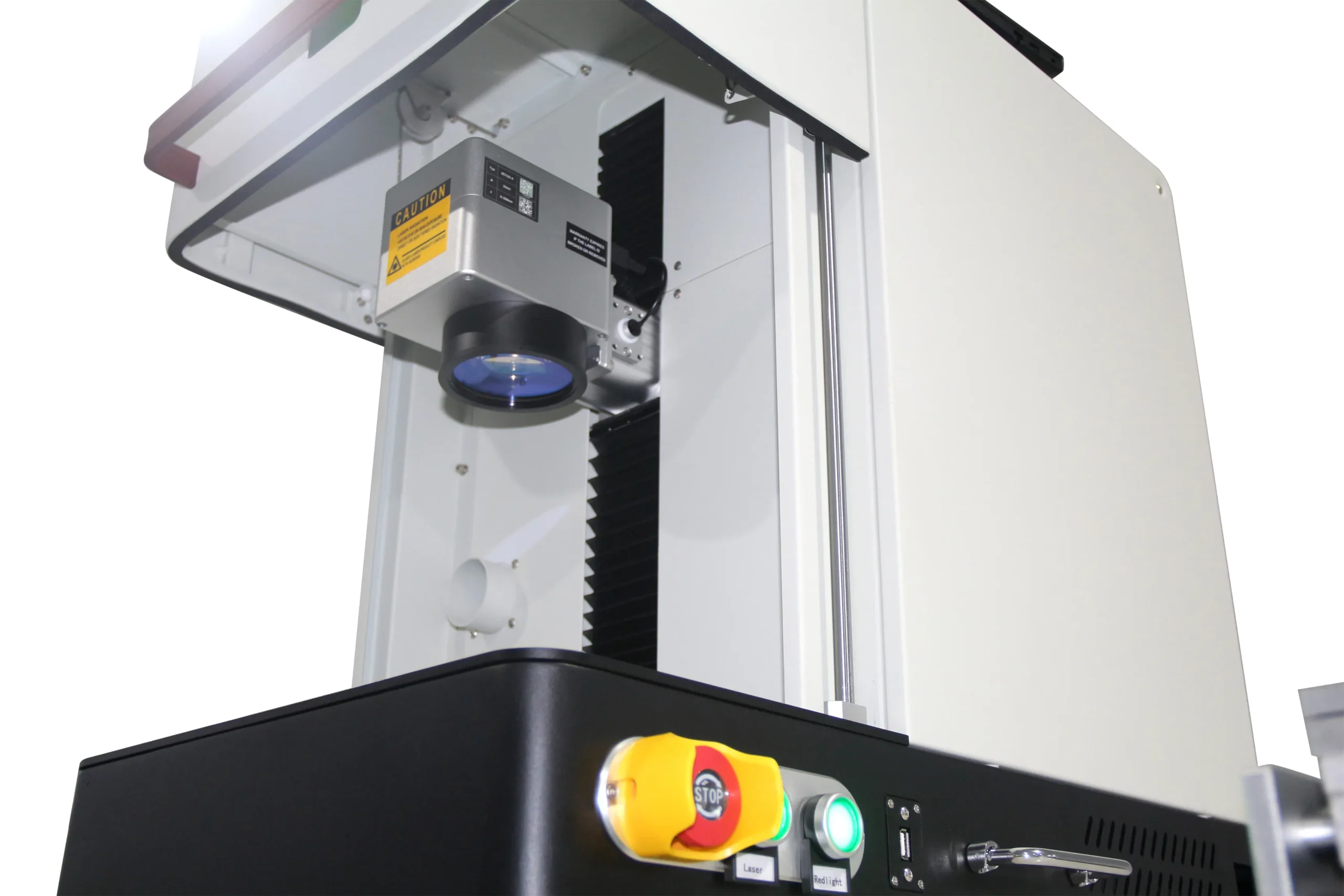

Component images
Why Choose this Laser Machine?
* **Advanced JPT MOPA Pulse Authority:** Featuring a highly versatile pulse width regulation of 2–500ns and an extensive frequency spectrum of 1-4000KHz, this system gives operators absolute authority over heat accumulation. It allows for advanced coloration workflows and localized layer removal with zero material deformation.
* **Microscopic 0.001mm Focal Resolution:** Compressing the 1080um wavelength laser beam into a tight ≤8mrad divergence angle allows the system to achieve a microscopic 0.001mm minimum beam diameter. It tracks ultra-crisp barcodes, serial numbers, and complex logos across an optimized 110*110mm field.
* **Industrial Continuity & Ultra-Quiet Operation:** Built to withstand demanding commercial production cycles, the internal components allow for up to 16 hours of continuous, uncompromised working time. Highly optimized internal air cooling loops control operational noise tightly at ≤60db.
* **Rugged & Balanced Benchtop Build:** Featuring an industrial machine chassis weight of 65 KG (750*560*800mm), it completely isolates localized factory floor vibrations to maintain steady galvo tracking, keeping energy instability strictly under < 2%.
