Description
Superior Power & Visual Clarity with ONSLASER™ 200W CCD Series
The 200W Integrated CCD Desktop Jewelry Laser Welder represents our premium solution for jewelry manufacturers and dental laboratories requiring maximum power without compromising on precision. This model features a high-stability 200W laser source that effortlessly handles high-reflective materials, ensuring clean and strong weld joints every time.
The standout feature is the fully integrated 720P CCD system, which works in tandem with a professional 10X microscope. This allows technicians to monitor the welding area through both the high-resolution 8-inch screen and the optical eyepieces, significantly reducing eye fatigue during long production shifts and ensuring flawless repairs.
Technical Specifications
| Feature | Signification |
| Input power | 3KW |
| Output power | 200W |
| Max single-pulse energy | 100J |
| Laser wave length | 1064nm |
| Light class size | 0.3–2.5mm |
| Capacity control | 1–100% |
| Pulse width regulation | 0.1–15ms |
| Frequency regulation | 1–20HZ |
| Work focal length | F=110mm |
| Working voltage | AC220V 50/60HZ |
| Attaching plug | European, American, and English standards (customizable) |
| language | China, Britain, South Korea and Russia (customizable) |
| CCD | The 720P is Optional |
| Monitor | 8 inches with crosshairs |
| Microscope | 10X |
| Package size | 940*580*730mm |
| Weight | 85KG |

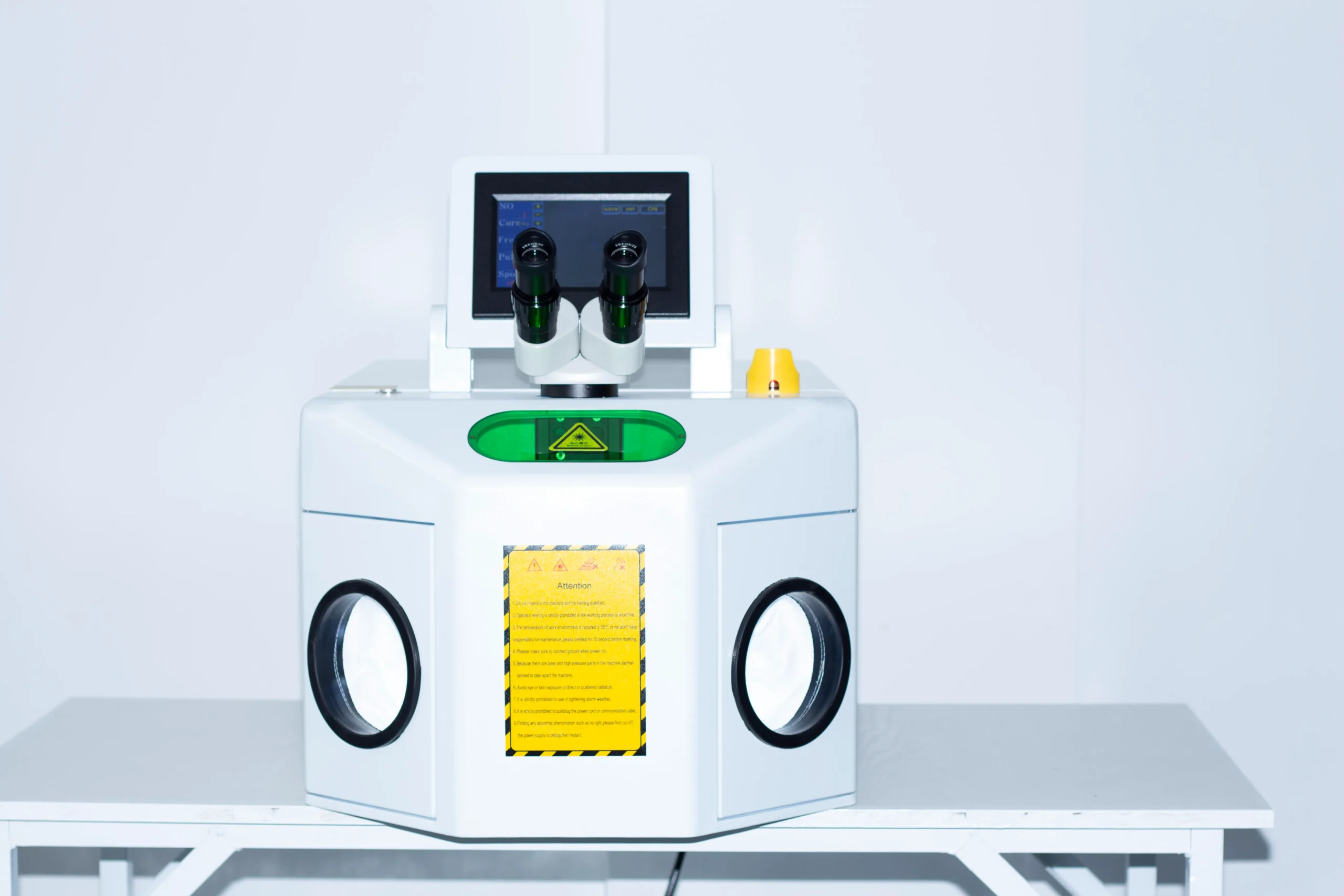

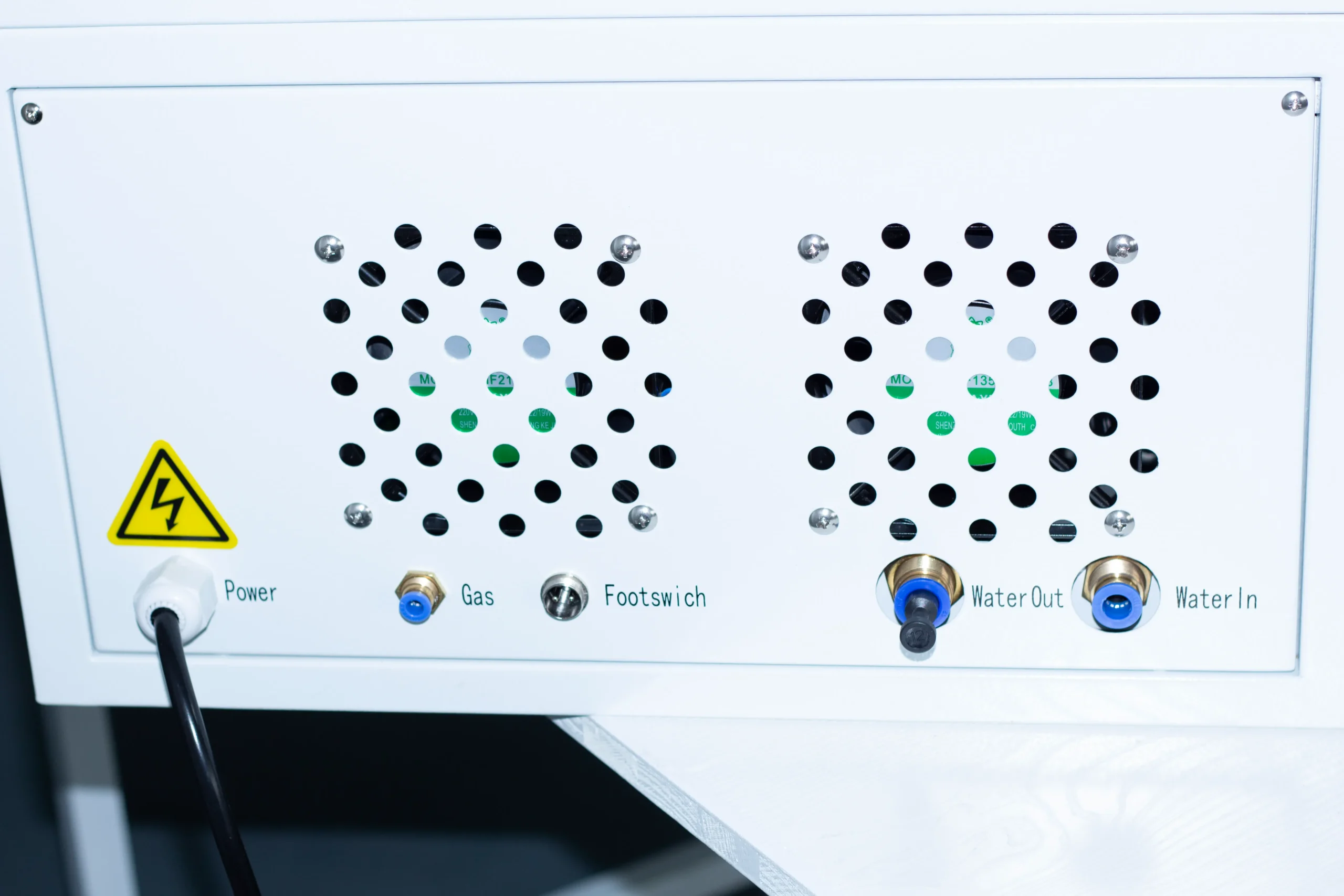

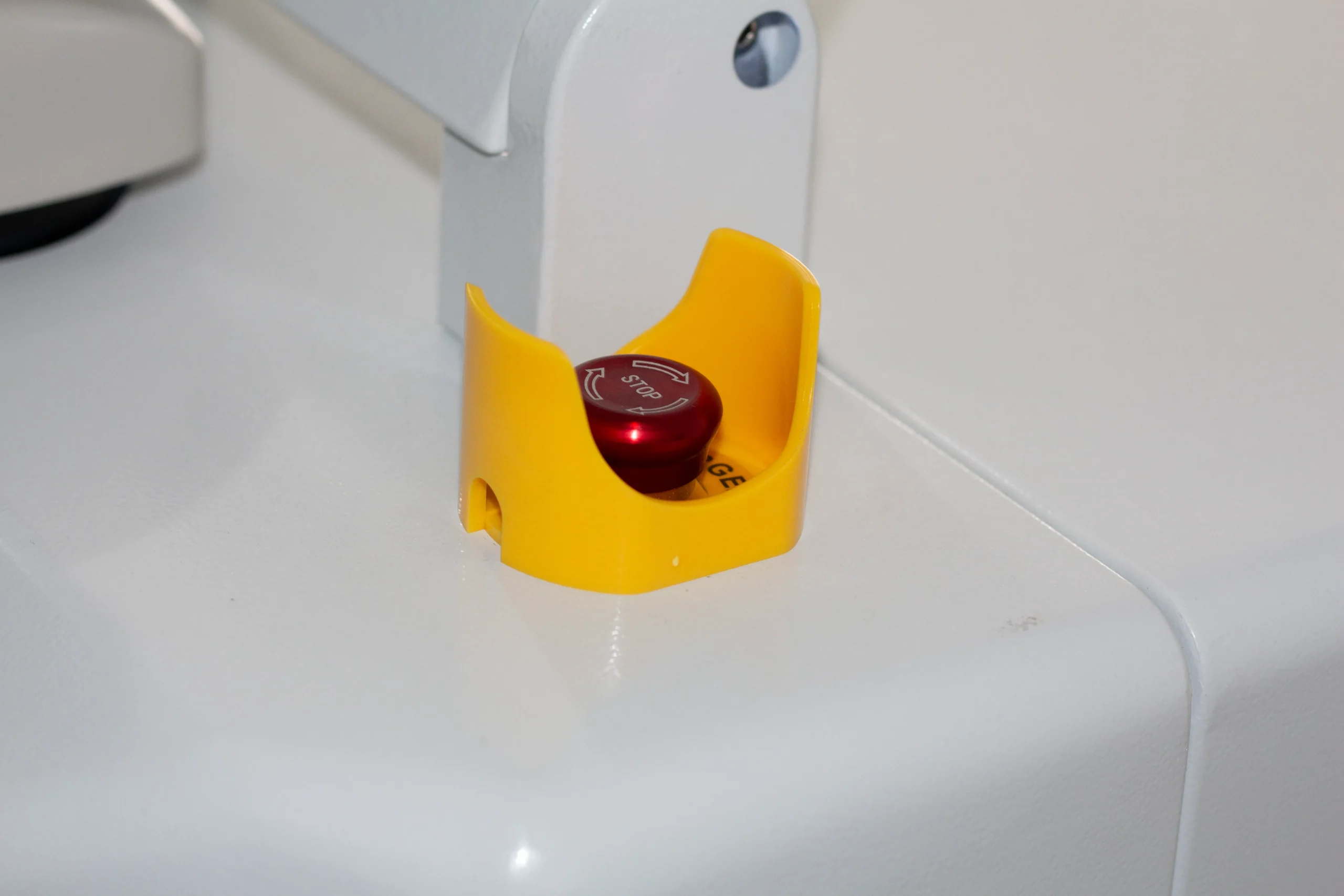

Component Images
Why Choose the 200W Integrated 720P CCD & Microscope System Model?
-
Massive 200W Power for Deep Penetration: Compared to standard 100W/150W models, the upgraded 200W output ensures effortless penetration and exceptional thermal fusion on high-reflective metals (like pure silver and 24K gold) without weld cold-joints.
-

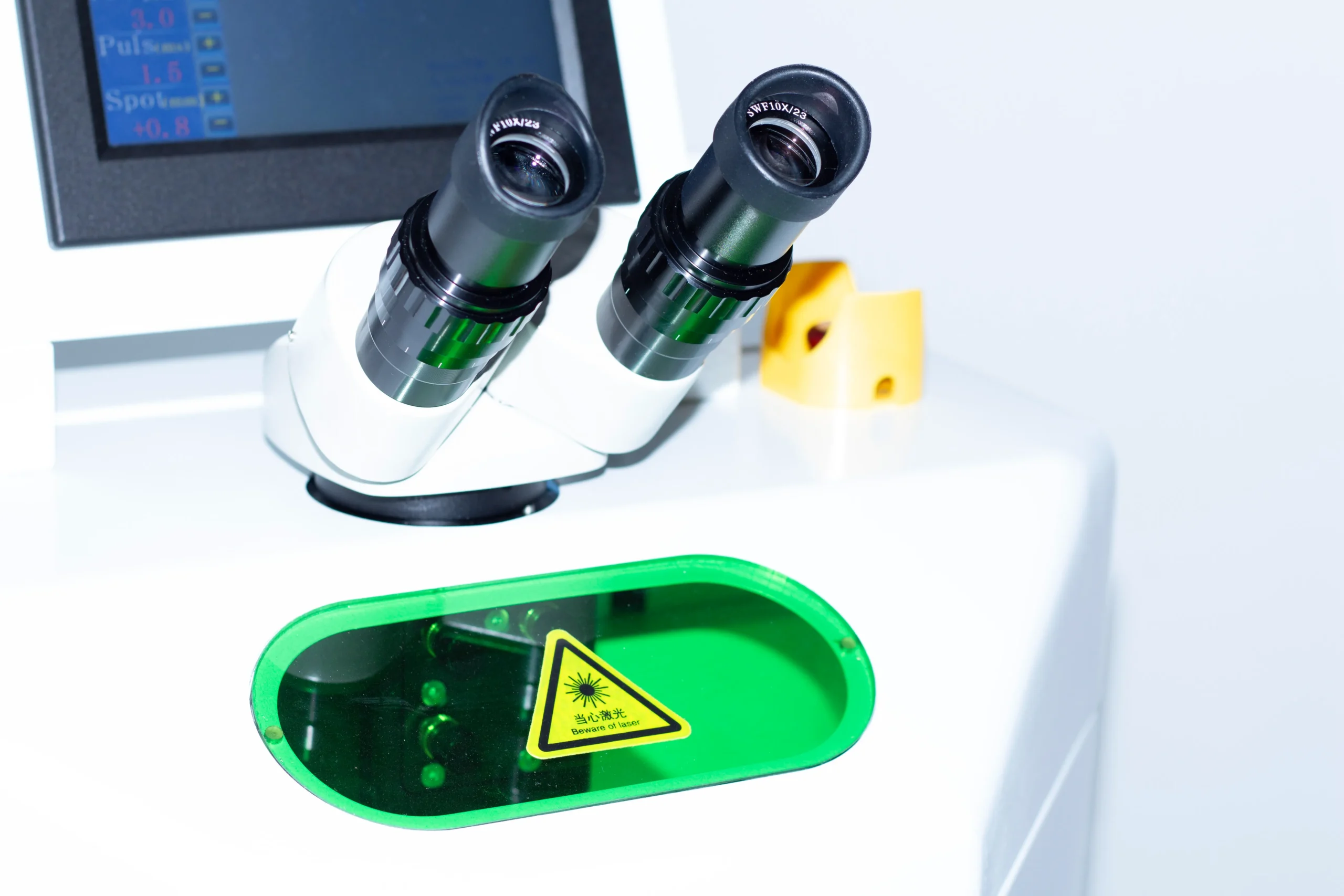

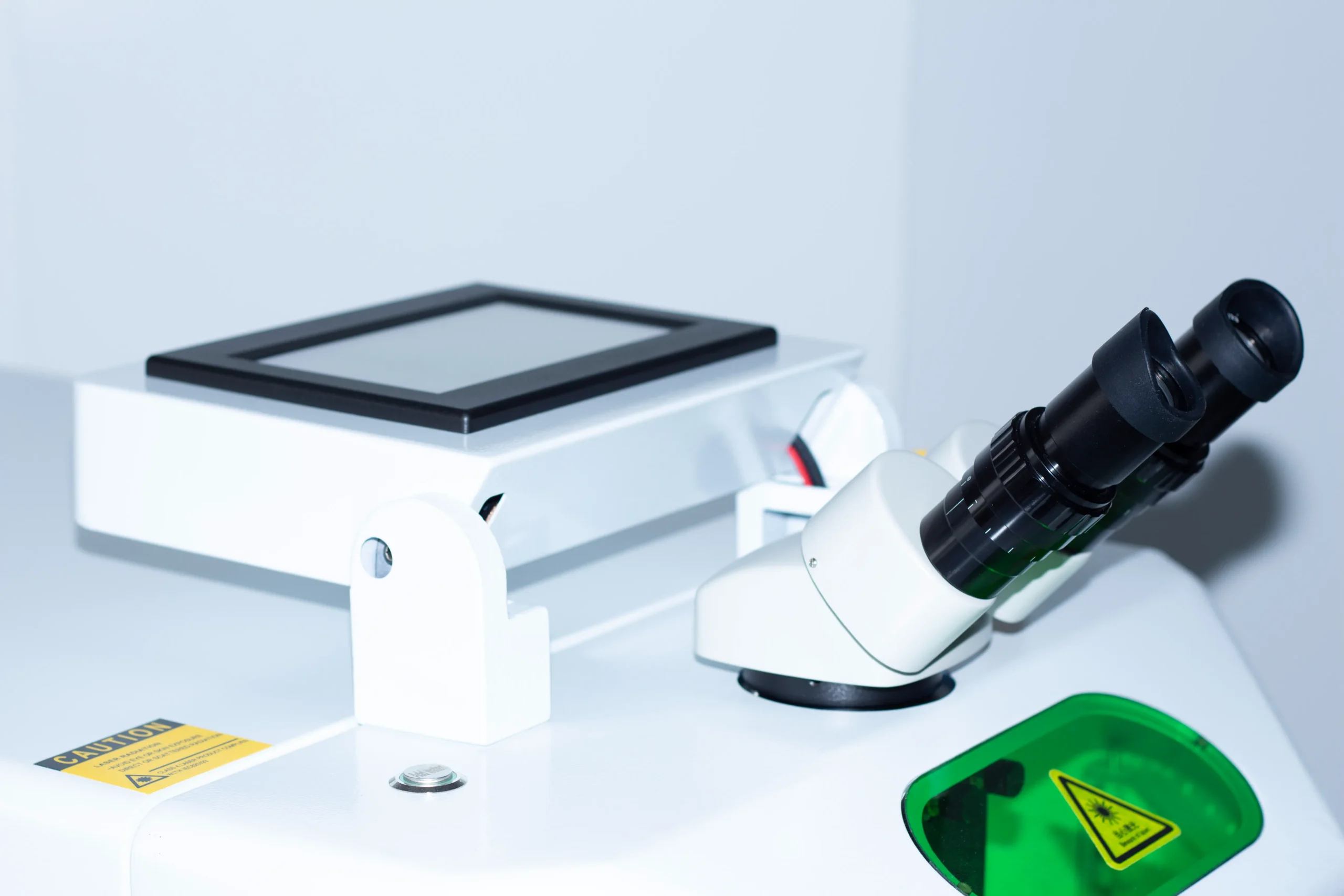

Dual-Vision Perfection (Integrated CCD & Microscope): Equipped with a premium 10X high-magnification binocular microscope alongside an integrated 720P HD CCD camera system. This combined optical network lets the goldsmith switch between real-time microscopic 3D viewing and an external monitor display, eliminating eye strain while tracking defects down to 0.1mm.
-
Advanced Zero-Warping Thermal Control: Releasing precise energy in tight millisecond intervals allows the micro-weld pool to settle instantly under active Argon gas shielding. The jewelry pieces remain completely free from thermal deformation, oxidation, or heat discoloration.
-
Industrial Durability in a Desktop Form: Features an optimized heavy-duty cooling radiator packed into a highly compact desktop chassis. It handles continuous studio workflows without power degradation while saving your counter space.
