Description

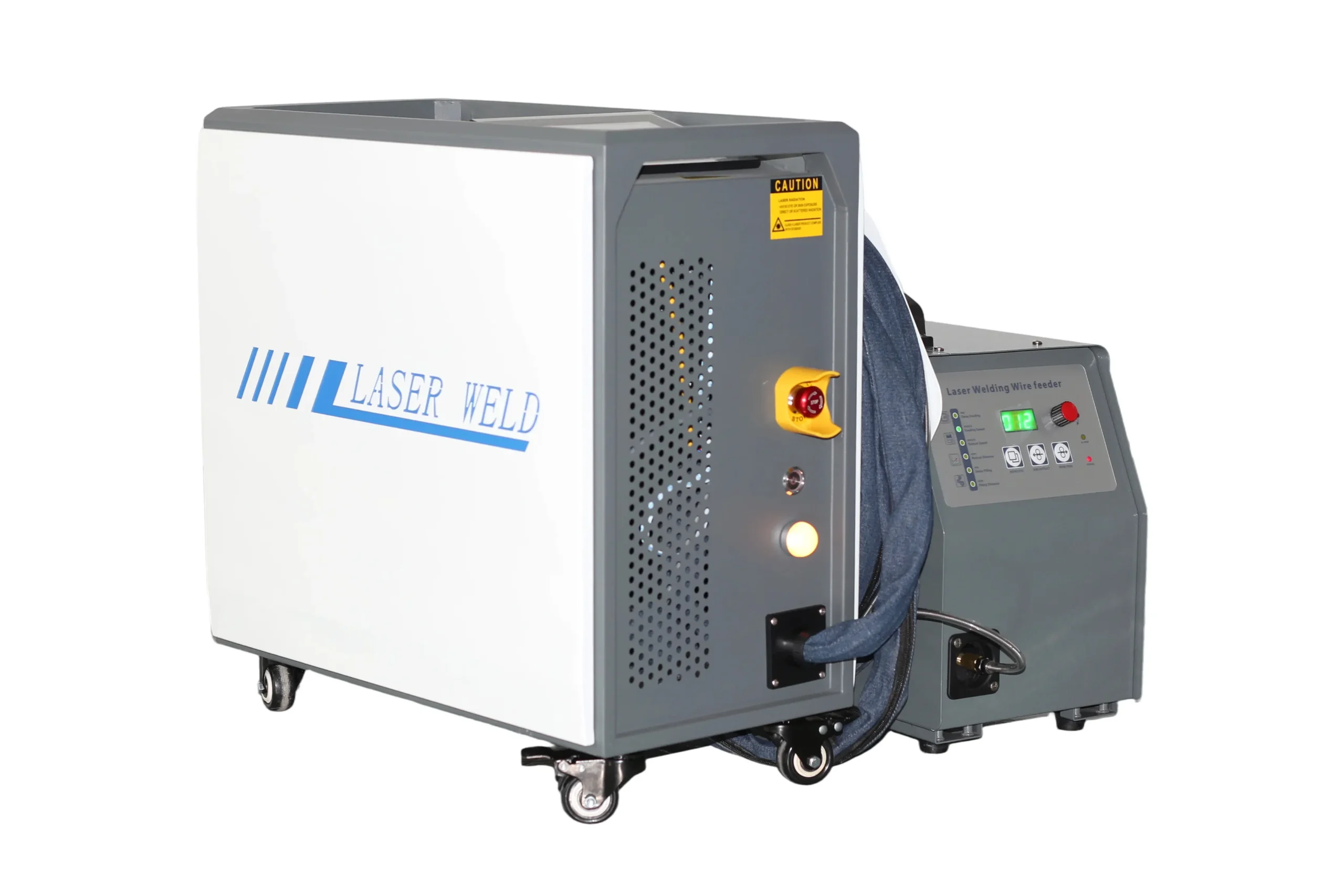

Revolutionize Your Workflow with the ONS-H1500W Air-Cooled Laser Welder
The ONS-H1500W Handheld Fiber Laser Welding Machine is a game-changer for metal fabrication workshops, offering industrial-grade power in a remarkably portable package. By utilizing advanced Air-Cooling technology, this machine removes the bulk and complexity of water-cooling systems, making it the perfect solution for mobile repairs and compact workspaces without sacrificing performance.
Driven by a premium MAX fiber laser source, it delivers a stable 1500W output, allowing for high-speed welding on various metals with minimal heat-affected zones. Whether you are working on stainless steel, carbon steel, or aluminum, the ONS-H1500W ensures deep penetration and a smooth, professional weld bead that requires little to no post-processing.
Technical Specifications
| Feature | Signification |
| Machine model | ONS-H1500W |
| Max laser power | 1500W |
| Laser type | Fiber laser source |
| Source brand | MAX |
| Laser medium | Fiber |
| Laser wavelength | 1064nm |
| Capacity control | 10–100% |
| Laser cleaning frequency | 1-10000KHz |
| Instability of energy | ＜2% |
| Beam Divergence | ≤1.5mrad |
| Welding width | 1-5mm |
| Welding distance | F=120mm |
| Welding mode | line |

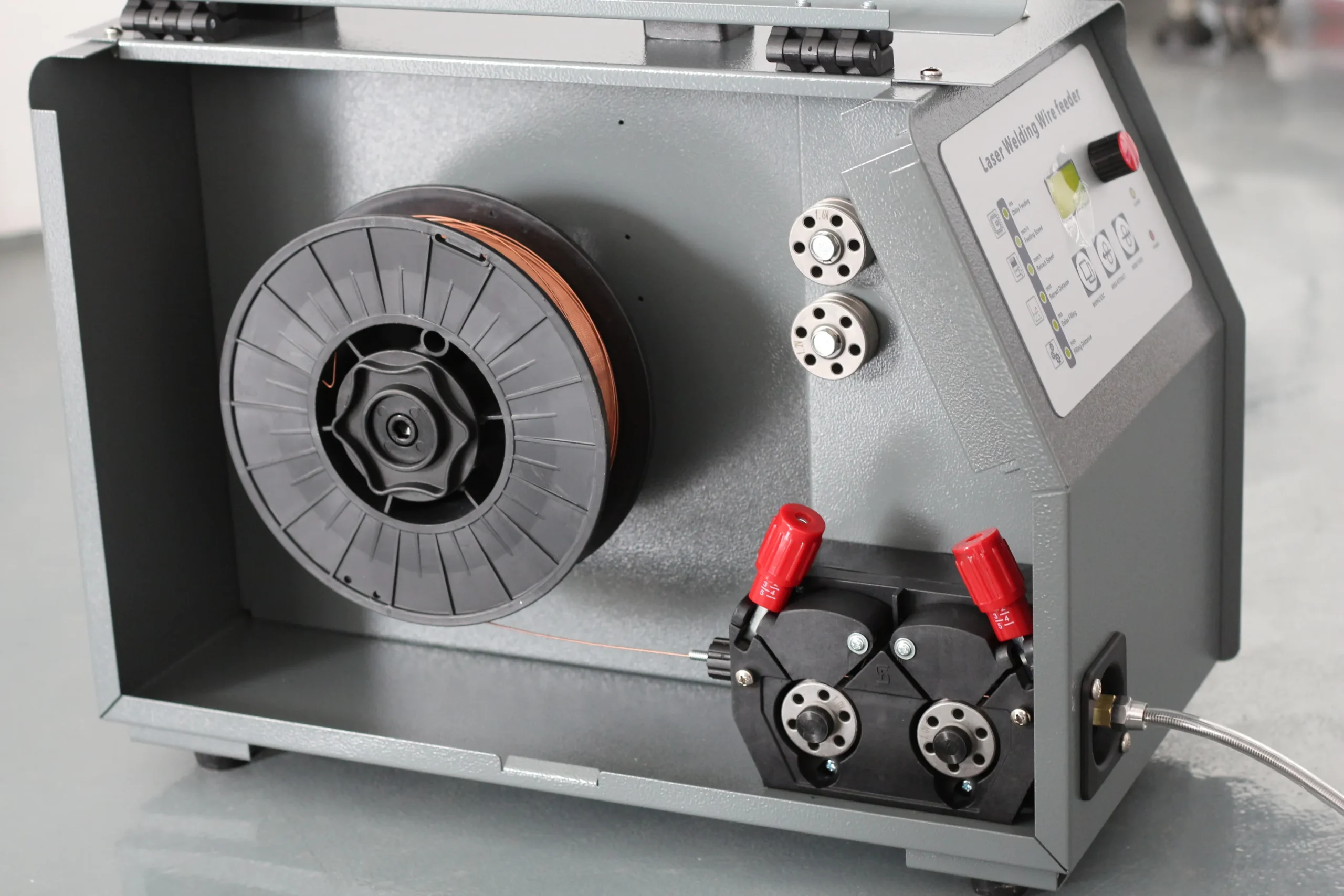

| Wire feeder | Distribution of 1.0mm welding wire |
| Continue working time | 16hours |
| Noise | ≤60db |
| Transmission system | Fiber optical transmission system (FOTS) |
| Fiber optical length | 10M standard |
| Power Consumption | ≤ 4.5KW |
| Power required | AC220V±10% 50Hz/60HZ |
| Working temperature | 55°F(13°C)-104°F(40°C) |
| Working Humidity | 5%-75% |
| Oil mist | ≤15mg/m³ |
| Cooling-down method | Air |
| Package size | 730*510*1030mm |
| Weight | 95KG |

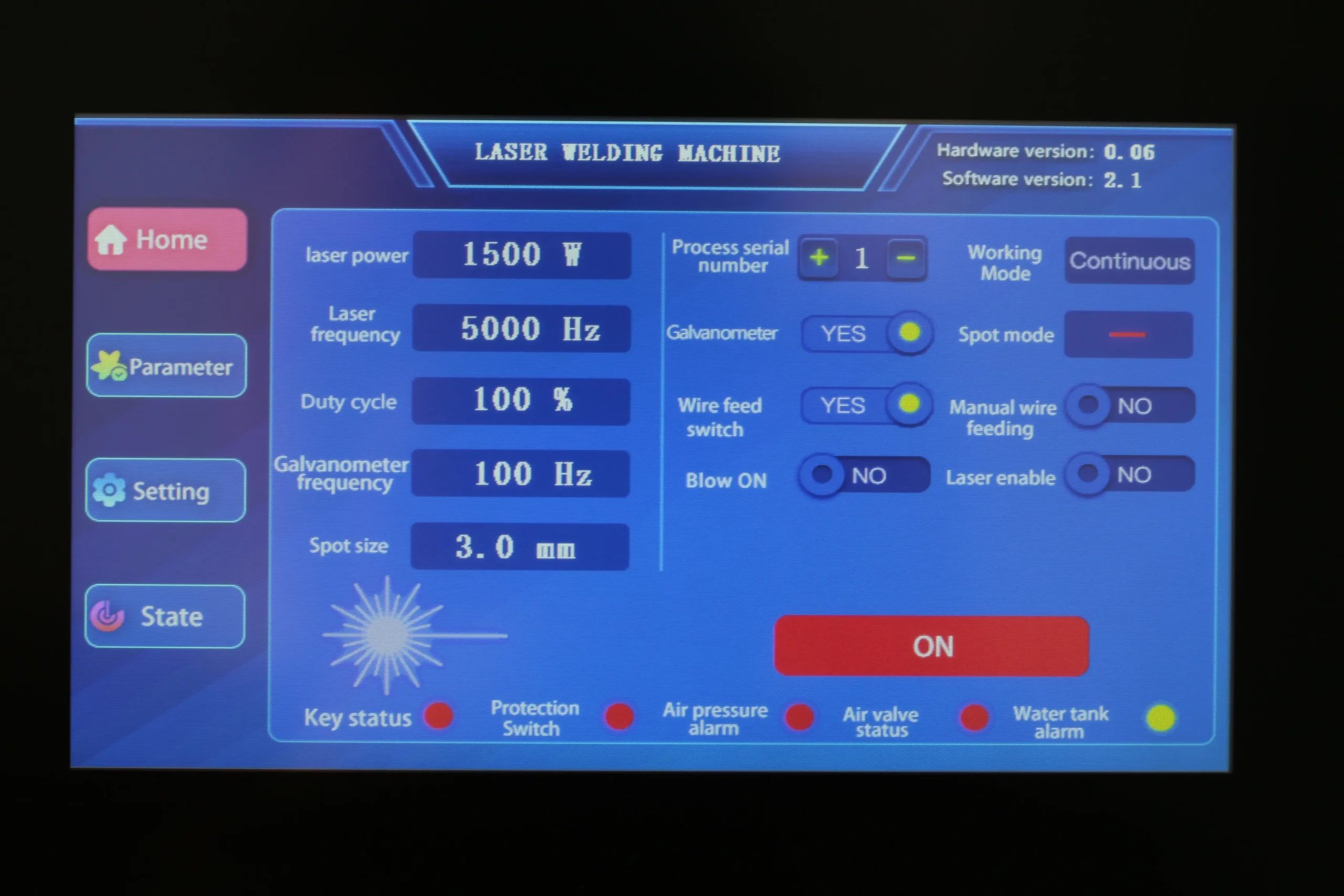

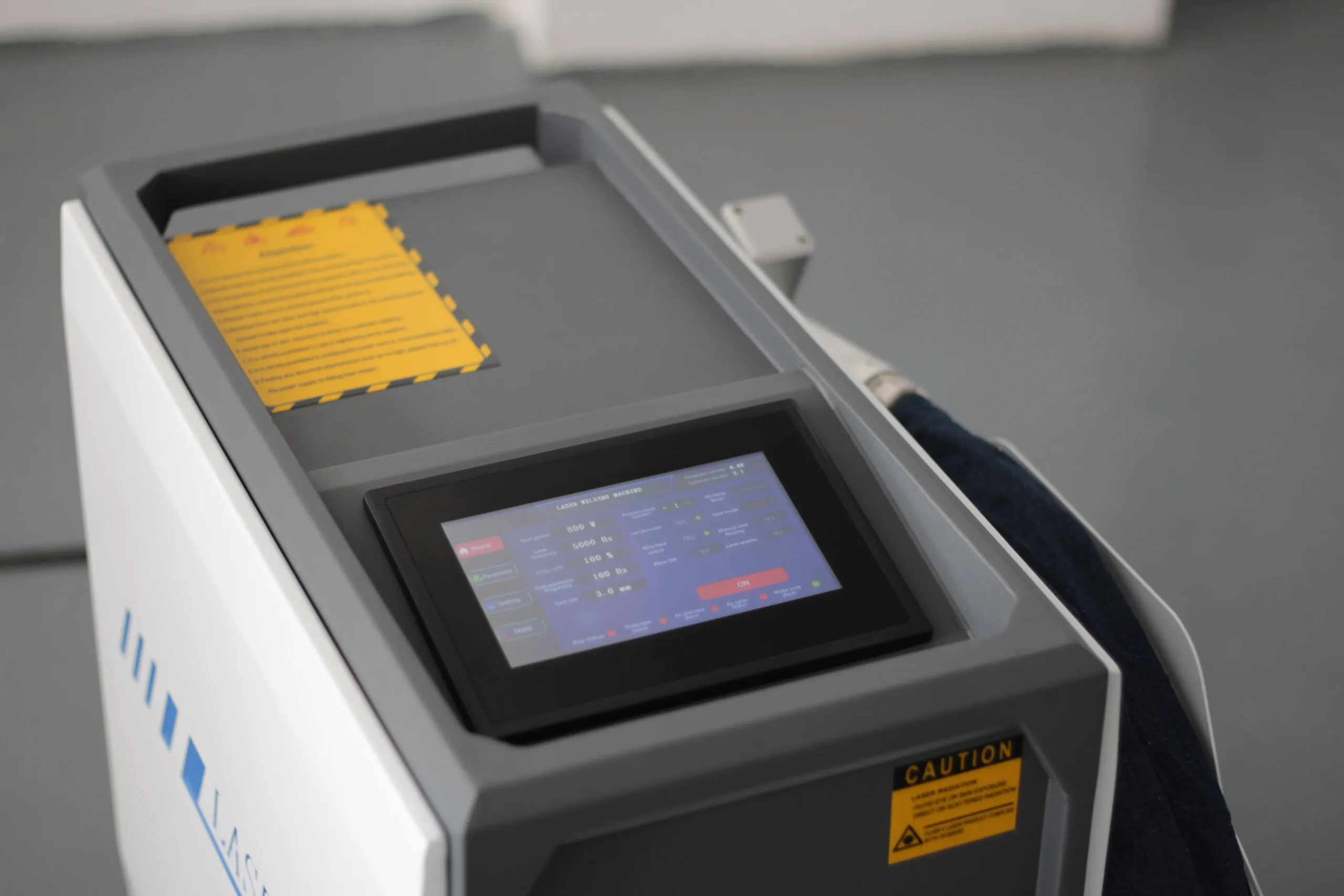

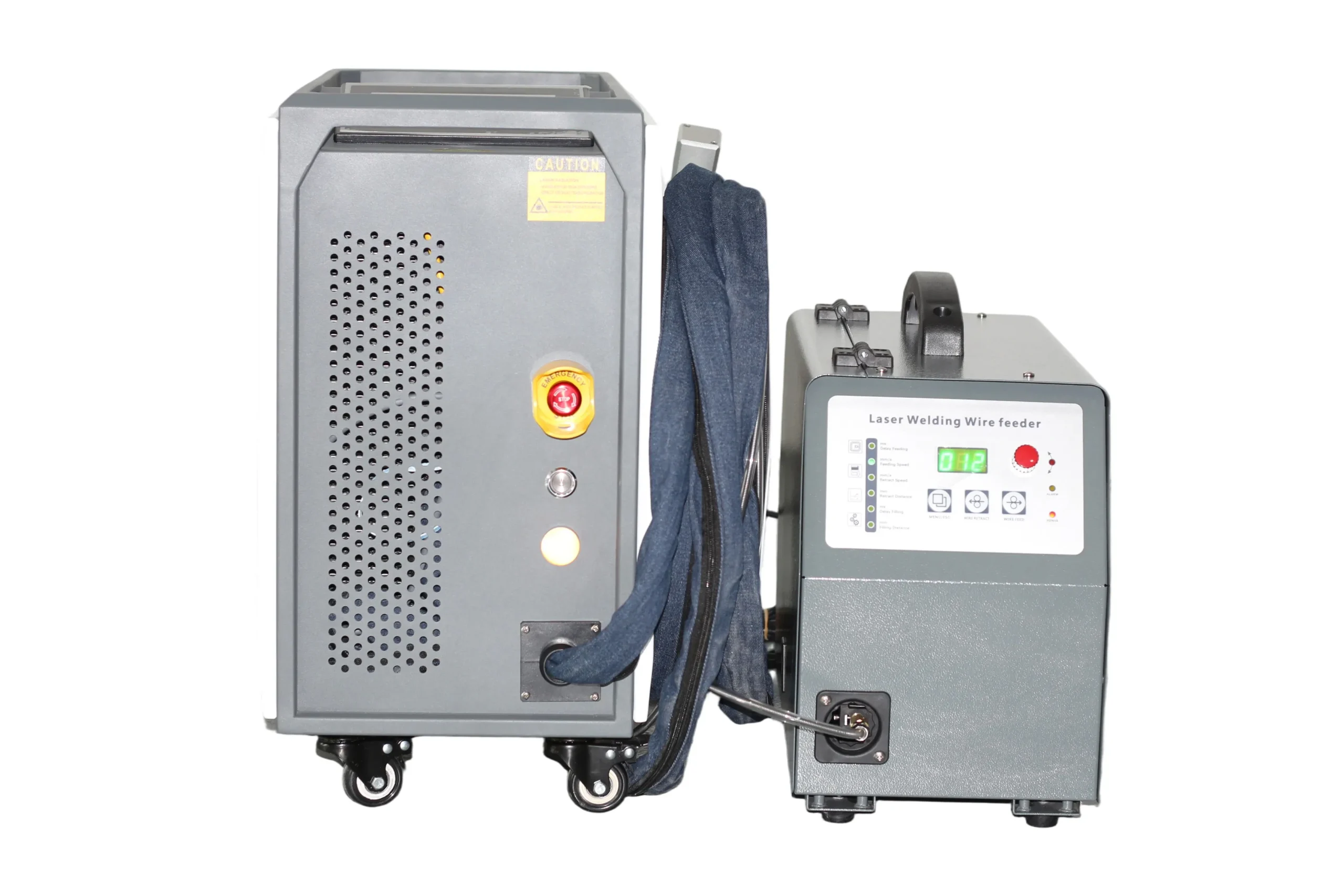

Component images
Why Choose this Laser Machine?
- Upgraded 200W Output with 100J Pulse Energy: Driven by a premium YAG solid-state laser cavity, this machine delivers a robust 200W output power and 100J maximum single-pulse energy. It guarantees deep penetration and high-strength metallurgical bonding on highly reflective metals like pure silver, 24K gold, and platinum without causing cold-welding flaws.
- Flawless Vision Control (10X Microscope & 8-inch Monitor): This model combines a high-quality 10X binocular microscope with an optional 720P HD CCD tracking network. Artisans can seamlessly inspect micro-defects down to 0.3mm through the eyepiece or observe the micro-welding process on the clear 8-inch monitor with built-in crosshairs, significantly reducing operator eye fatigue during continuous production.
- Micro-Level Thermal Precision:Featuring an advanced 0.1 — 15ms pulse width and 1 — 20HZ frequency regulation, heat is delivered strictly in tightly controlled millisecond bursts. Under active argon gas shielding, the base metal remains perfectly preserved with zero warping, heat discoloration, or micro-structural deformation.
- Tailored for Global Operations: The smart integrated digital interface supports customizable multi-language control screens (including Chinese, English, South Korean, and Russian). Power wiring and attachment plugs are fully customizable to European, American, or English industrial grid standards prior to shipment.
- Industrial Durability in a Compact Chassis: Packed into a space-saving structure with a heavy-duty 85KG export wooden case package, it safely houses an integrated internal cooling loop and a 3KW power supply system. It is fully built to handle demanding retail store counters or intensive laboratory workflows.
