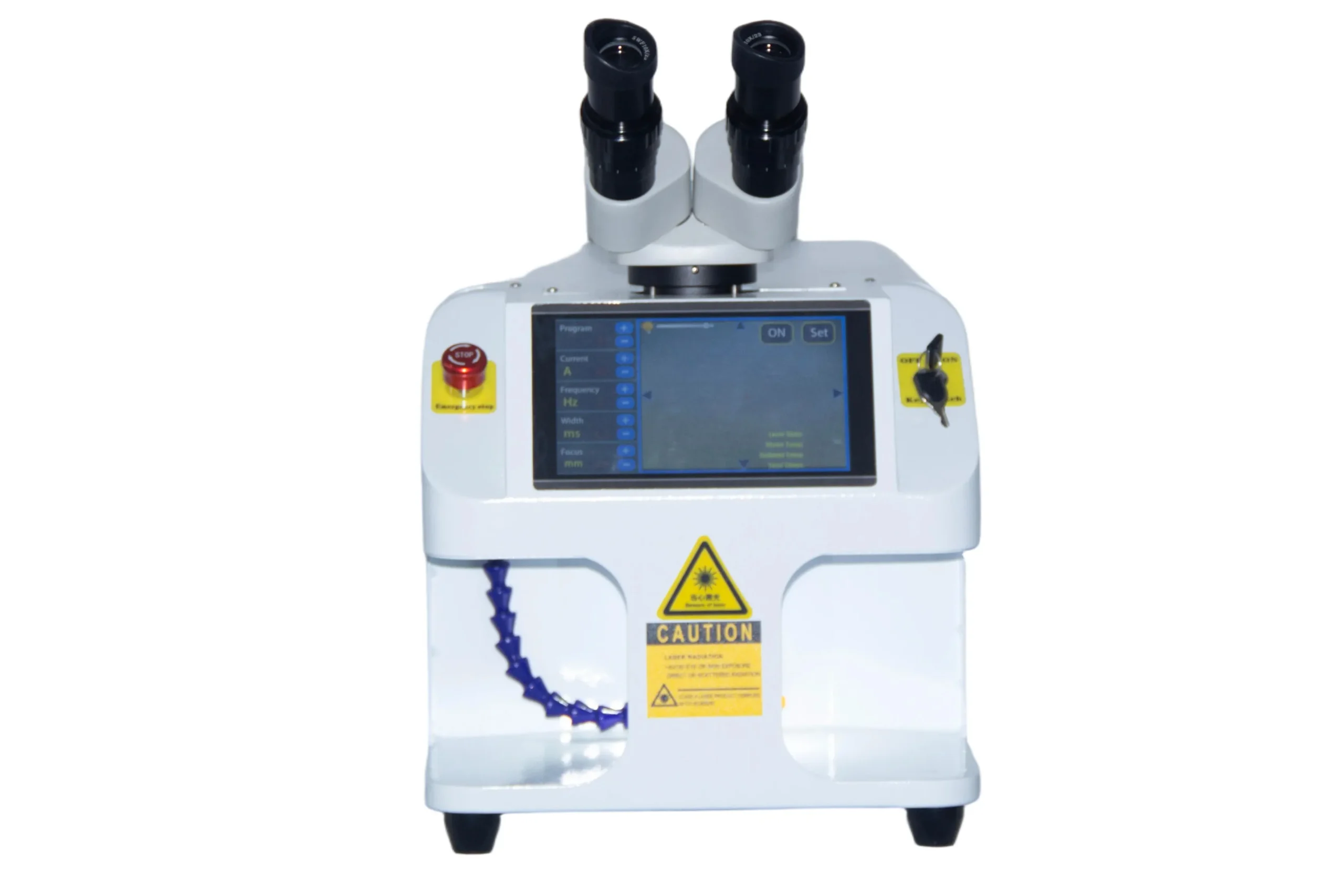

01. Precision YAG Laser Welding for Jewelry Repair
The 100W desktop YAG laser welder is designed for jewelry repair, ring resizing, chain joining and delicate metal restoration. Its pulsed 1064nm laser, 10× stereo microscope and adjustable spot-welding parameters support controlled repairs on compatible gold, silver, platinum and other small metal components.
 |
 |
02. Key Technical Features
Precision Pulse Control — Adjust welding current, pulse width and frequency for different joint sizes and materials.
Microscope-Guided Welding — 10× stereo magnification helps position fine jewelry components accurately.
Open Welding Chamber — Accessible workspace with LED lighting and adjustable argon shielding.
Touchscreen Operation — Digital parameter adjustment for different precision welding tasks.
Optional CCD Monitoring — 720P camera system available for external display viewing and training.
 |
 |
 |
03. Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Model | 100W Desktop Jewelry Laser Welder |
| Laser Type | Pulsed Nd:YAG Laser |
| Rated Output Power | 100 W |
| Maximum Single-Pulse Energy | 80 J |
| Laser Wavelength | 1064 nm |
| Welding Current Adjustment | 1–150 A |
| Pulse Width Adjustment | 0.1–15 ms |
| Pulse Frequency | 1–15 Hz |
| Spot Diameter | 0.3–2.5 mm |
| Working Focal Length | F = 110 mm |
| Observation System | 10× Stereo Microscope |
| CCD Camera | Optional 720P HD CCD System |
| Welding Chamber | Semi-Open Desktop Workstation |
| Shielding Gas | Adjustable Argon Nozzle |
| Control Interface | Color Touchscreen |
| Power Consumption | 2 kW |
| Power Supply | AC 220 V, 50/60 Hz |
| Power Plug | EU / US / UK (Customizable) |
| Interface Languages | Chinese / English / Korean / Russian (Customizable) |
| Machine Dimensions | 500 × 290 × 270 mm |
| Machine Weight | 25 kg |
| Package Dimensions | 670 × 400 × 580 mm |
| Package Weight | 40 kg |
04. Precision Workstation Design

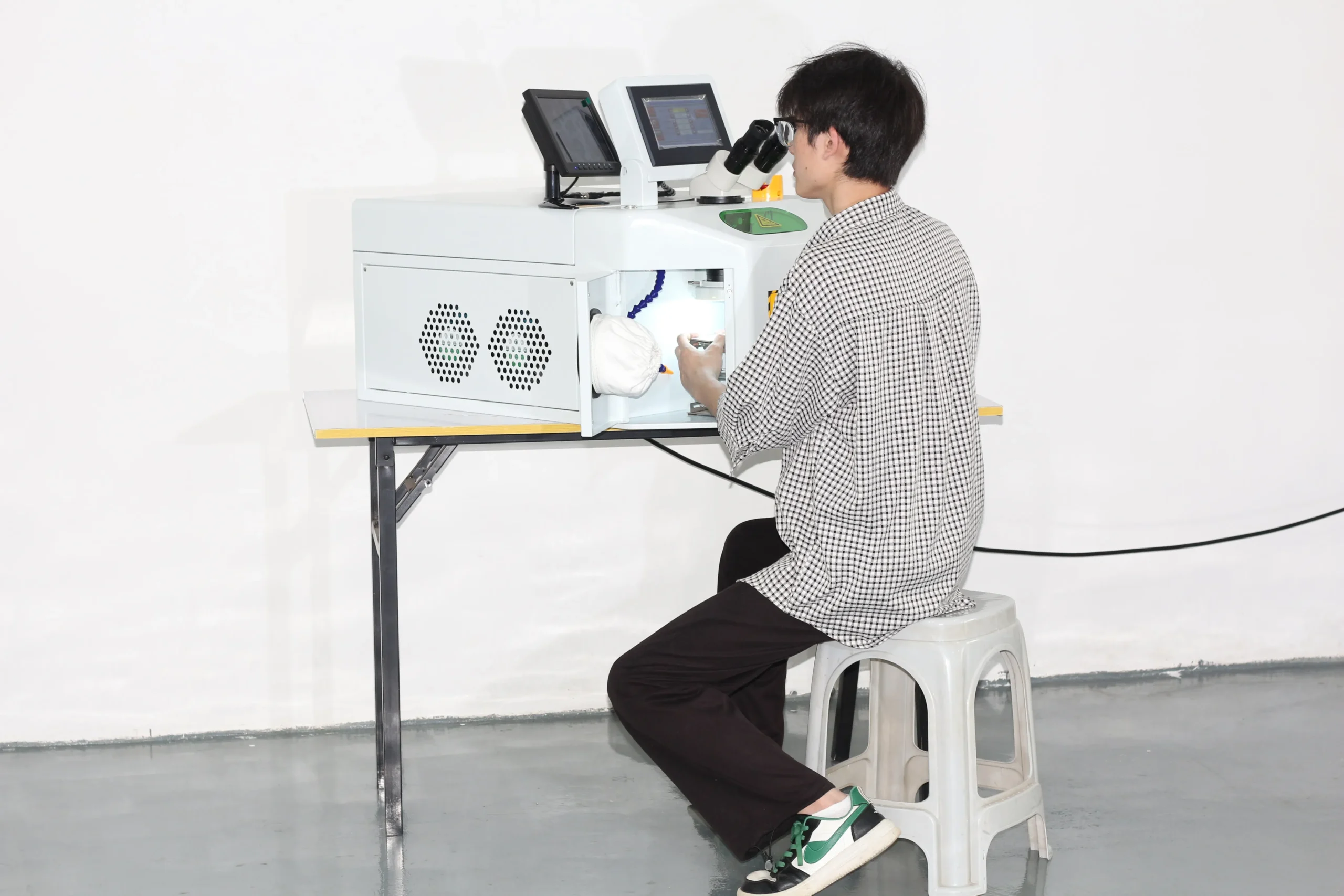

Ergonomic Work Area — Open-access welding chamber with hand support for delicate repair work.
Adjustable Argon Nozzle — Directs shielding gas toward the weld area to help reduce oxidation.

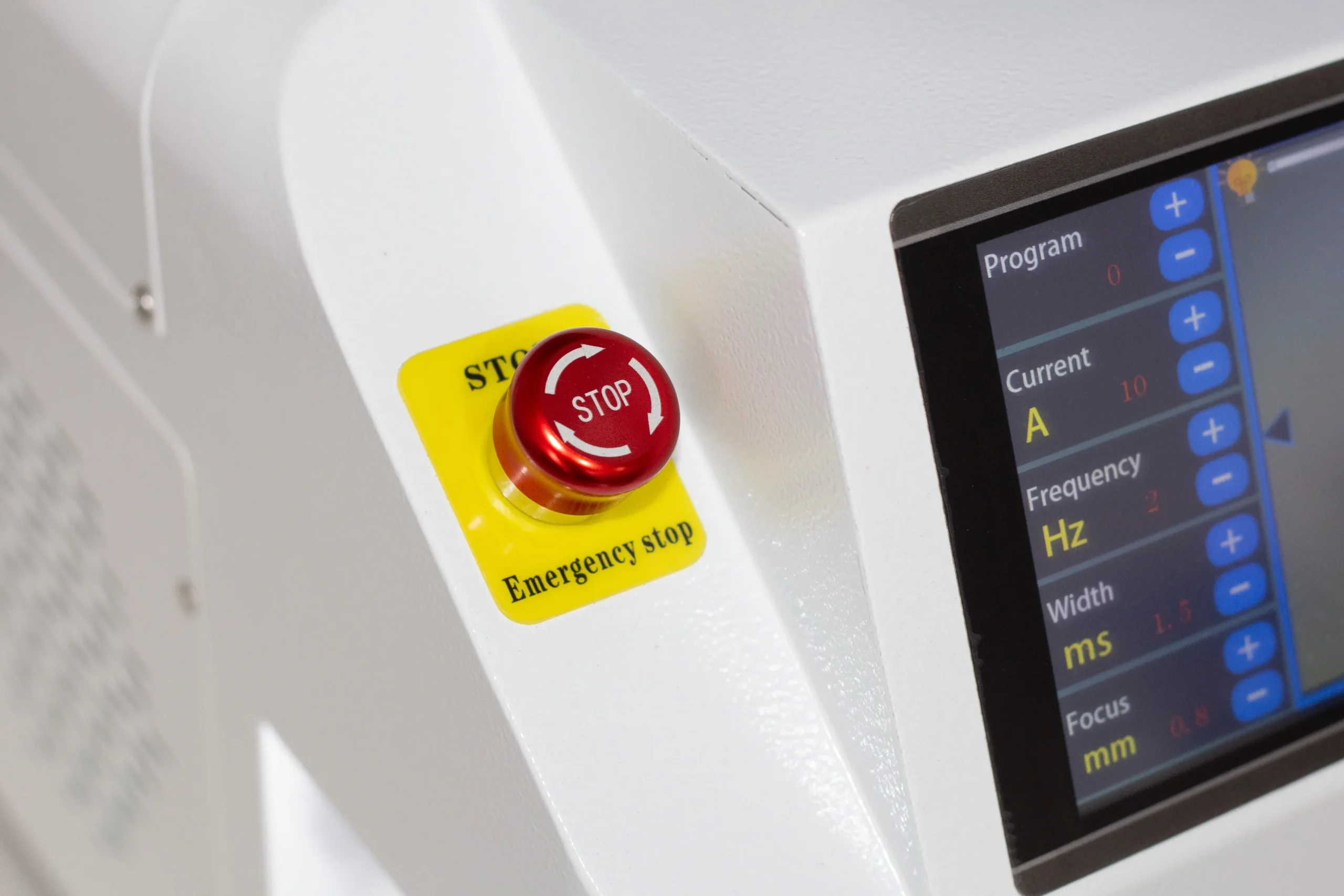

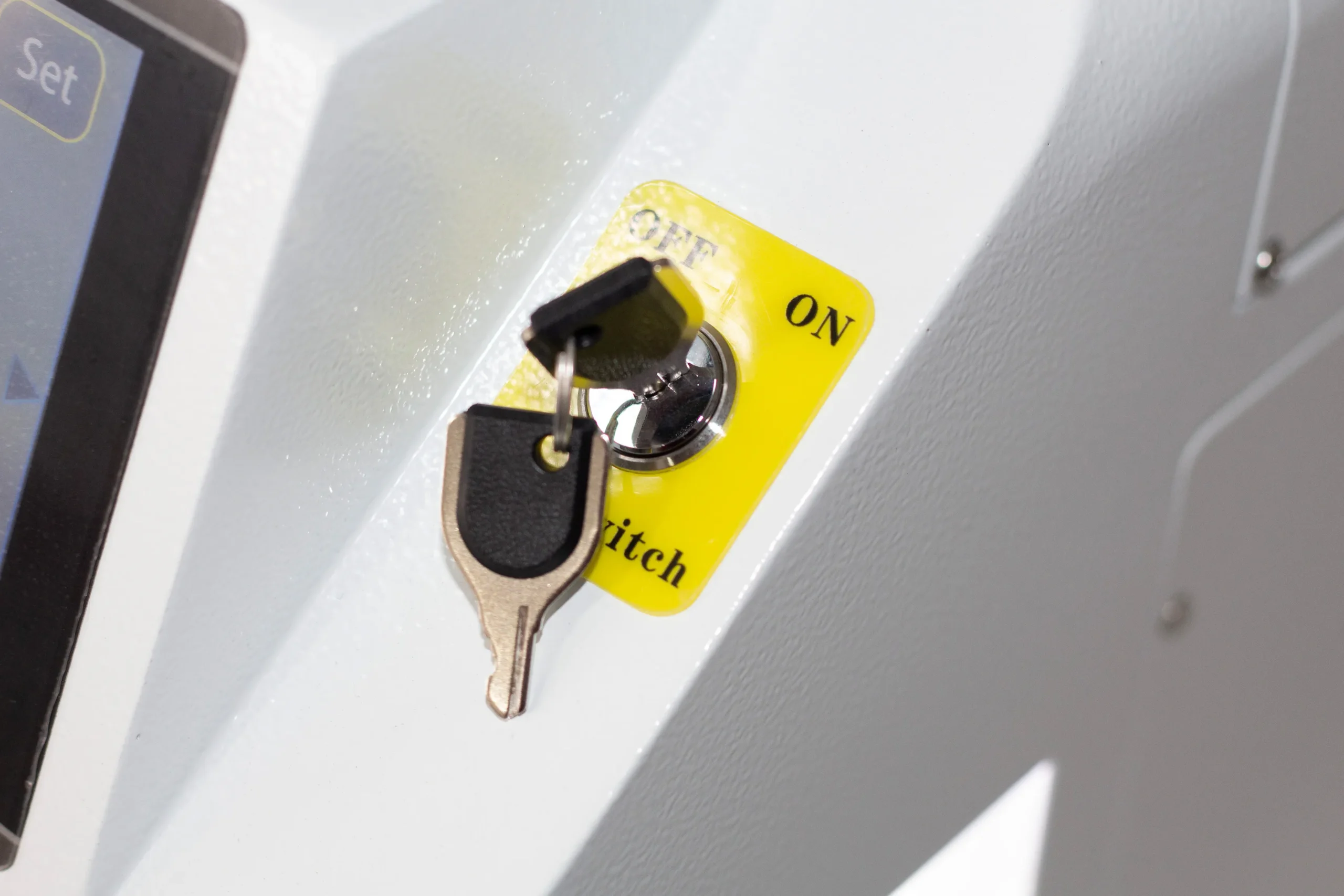

Integrated Operator Controls — Touchscreen, key switch and emergency stop for workstation operation.

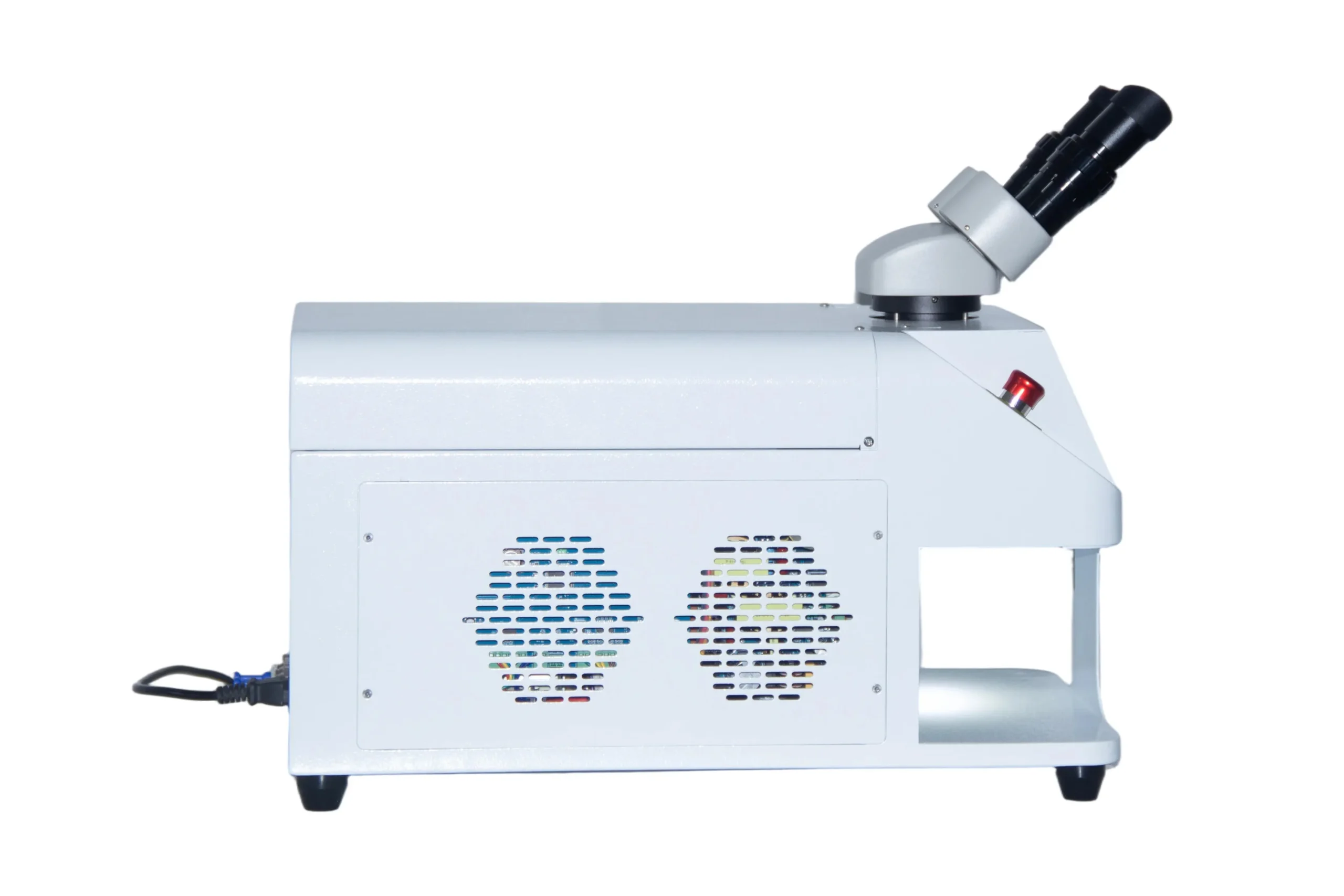

Compact Benchtop Footprint — 500 × 290 × 270mm housing for jewelry workshops and repair benches.
05. Typical Precision Welding Applications
| Application | Typical Welding Tasks |
|---|---|
| Jewelry Repair & Manufacturing | Ring resizing, chain joining, prong rebuilding and small defect repairs on compatible precious metals. |
| Eyewear & Metal Accessories | Fine repairs on suitable titanium and stainless steel frames, hinges and metal fittings. |
| Dental & Medical Components | Precision joining and repair of suitable small metal components, subject to application-specific validation. |
| Micro-Industrial Parts | Spot welding of small metal housings, precision hardware and selected mold components. |
Welding results depend on material composition, joint geometry, filler material and selected pulse settings.
